$7,925.00/Each

This product is no longer available. We've left this page up for reference only.

Installation Services

Check if installation is currently available for your area.

Usually Ships in 1-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Single deck design with an interior light
  • Solid state controls with temperature range of 150-500 degrees Fahrenheit
  • 5 nickel plated oven Grab-n-Go racks with 11 rack positions
  • Independently operated doors with double pane windows
  • Porcelain enamel interior with stainless steel exterior; 23 3/4" legs
  • Oven cool switch for rapid cool down
  • 1/2 hp two speed blower motor
  • 480V, 12 kW
UPC Code:400012573729

Vulcan VC5ED-13D1 480/1 Specs

Quantity
1/Each
Shipping Weight
337 lb.
Width
40 1/8 Inches
Depth
40 Inches
Height
54 Inches
Interior Width
29 Inches
Interior Depth
22 1/8 Inches
Interior Height
20 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
480 Volts
Wattage
12 Kilowatts
Control Type
Dial
Door Type
Glass
Features
Energy Star Qualified  Made in America  NSF Listed
Horsepower
1/2 HP
Installation Type
Freestanding
Number of Decks
Single
Number of Doors
2 Doors
Number of Racks
5 Racks
Oven Interior Style
Standard Depth
Plug Type
Hardwire
Power Type
Electric
Size
Full Size
Temperature Range
150 - 500 Degrees F

Vulcan VC5ED-13D1 480/1 Details

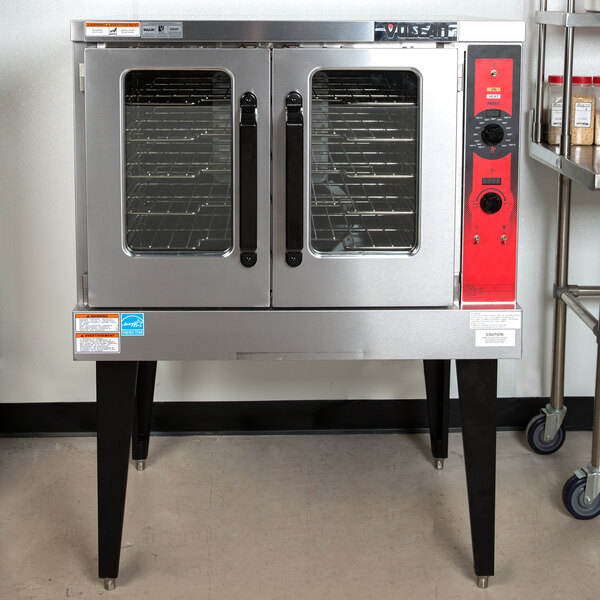

Cooking in your school kitchen or restaurant will be easier than ever with this VC5ED single deck full size electric convection oven. This 480V unit offers a solid state thermostat with a 5 hour timer for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods.

A porcelain enamel interior is both attractive and easy to clean at the end of a busy day. Plus, five nickel plated Grab-n-Go racks fit into 11 different positions for ultimate interior customization. The 1/2 hp two speed fan motor recirculates heated air for fast, even cooking, and the unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.

Two dual pane thermal glass windows encased by stainless steel door frames help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. To boost your oven to the perfect working height, 23 3/4" legs come included. A 480V electrical connection is required for operation.

Overall Dimensions:
Left to Right: 40 1/8"
Front to Back: 40"
Height: 54"

Interior Dimensions:
Left to Right: 29"
Front to Back: 22 1/8"
Height: 20"

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

What is a Grab-n-Go rack?

Vulcan's Grab-N-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VC5ED-13D1 480/1 today!

Resources and Downloads for
Vulcan VC5ED-13D1 480/1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
