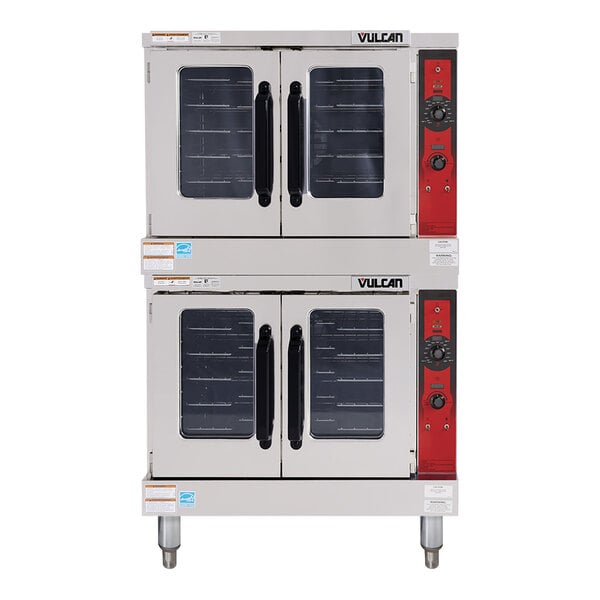

Vulcan VC55ED-208/3 Double Deck Full Size Electric Convection Oven - 208V, 3 Phase, 24 kW
$7,260.00/EachShips free with Plus
Phone number must be able to receive text messages
Message and data rates may apply. You may opt-out at any time by sending STOP to +17172887303. (Note: if you texted STOP but would like to restart, text START, and make sure your number below is correct.)
Or call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)
Other Available Voltages:
- Double deck design with an interior light per section
- Solid state controls with temperature range of 150-500 degrees Fahrenheit
- 5 nickel plated oven racks with 11 rack positions per oven
- Independently operated doors with double pane windows
- Porcelain enamel interior with stainless steel exterior; 8" legs
- Oven cool switch for rapid cool down
- 1/2 hp two speed blower motor per oven
- 208V, 3 Phase
White Glove Delivery - Available -What is White Glove service?
Standard common carrier delivery options cover the cost of getting an item to your shipping address but our White Glove delivery service does that and more!
The White Glove agent will call to schedule a Call Before Delivery within a four hour window, which gives you the flexibility to work around your busy schedule and to prepare the space where your item will be placed. Upon delivery, trained professionals will unload your large item from the truck, bring it into the room of choice, unpack the item and remove all packaging debris from the premises.
Please note that White Glove delivery will typically add 5 - 7 business days to your order's transit, and only includes 30 minutes of on-site time. If on-site time beyond 30 minutes is required, you may be responsible for additional fees. While the agents will bring the items into the location of your choice, this service does not include set-up of the items being delivered, such as installation of casters, shelves, or other accessories. Small items will not be unpackaged individually; they will be set in place and debris and packaging material will not be removed.
"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
|Vulcan VC55ED-208/3 Specs|
|Width||40 1/8 Inches|
|Height||68 13/16 Inches|
|Interior Width||29 Inches|
|Interior Depth||22 1/8 Inches|
|Interior Height||20 Inches|
|Amps||66 - 70 Amps|
|Energy Star Qualified||Yes|
|Made in America||Yes|
|Maximum Temperature||500 Degrees F|
|Number of Chambers||2|
|Number of Decks||Double|
|Number of Doors||4|
|Number of Racks||10|
|Oven Interior Style||Standard Depth|
|Temperature Range||150 - 500 Degrees F|
Customer questions about this product
- I see that this electrical unit is "field-convertible." What does that mean?
- Electrical equipment is factory-set to use a specific voltage and phase for power. Field-convertible equipment allows your unit to accept another voltage and/or phase type (so for example a 208V/3 phase electrical unit could be converted to use 240V/1 phase), but this conversion must happen before it is used. For safety reasons, we recommend having a qualified service professional perform the conversion.
- How will this double convection oven arrive? Is there anything special I need to know about setting it up?
- Double deck convection ovens like this one will ship separately. You will need to un-crate each oven and then stack one on top of the other as part of the installation process. Consult your installation manual for details specific to the oven you ordered.
- How do I know if the listed amperage is in reference to a single oven, or the combined total for each individual oven?
- If you're ever unsure of an electrical specification and how it relates to your operation, be sure to check out the Specification Sheet or consult a qualified technician for additional information.
Vulcan VC55ED-208/3 Details
Cooking in your school kitchen or restaurant will be easier than ever with this VC55ED-208/3 double deck full size electric convection oven. This 208V, 3 phase unit offers a solid state thermostat with a 5 hour timer per oven for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods.
The porcelain enamel oven interiors are both attractive and easy to clean at the end of a busy day. Plus, five nickel plated racks fit into 11 different positions per oven for ultimate interior customization. One 1/2 hp two speed fan motor per compartment recirculates heated air for fast, even cooking, and each unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.
Two dual pane thermal glass windows encased by stainless steel door frames per oven help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. 8" stainless steel legs come standard. A 208V, 3 phase electrical connection is required.
Left to Right: 40 1/8"
Front to Back: 40"
Height: 68 13/16"
Left to Right: 29"
Front to Back: 22 1/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This product must be hardwired; it does not plug into a standard wall outlet.
Resources and Downloads for
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
