Earn up to $393.90 back (39,390 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Double deck design with an interior light per section
- Solid state controls with temperature range of 150-500 degrees Fahrenheit
- 5 nickel plated oven Grab-n-Go racks with 11 rack positions per oven
- Independently operated doors with double pane windows
- Porcelain enamel interior with stainless steel exterior; 8" legs
- Oven cool switch for rapid cool down
- 1/2 hp two speed blower motor per oven
- 240V, ships 3 phase; field convertible to 1 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 695 lb.
- Width
- 40 1/8 Inches
- Depth
- 40 Inches
- Height
- 68 13/16 Inches
- Interior Width
- 29 Inches
- Interior Depth
- 22 1/8 Inches
- Interior Height
- 20 Inches
- Amps
- 58 - 66 Amps
- Hertz
- 60 Hertz
- Phase
- 3 Phase
- Voltage
- 240 Volts
- Wattage
- 24 Kilowatts
- Control Type
- Dial
- Door Type
- Glass
- Features
- Field-Convertible (Electrical)
- Horsepower
- 1/2 HP
- Installation Type
- Freestanding
- Maximum Temperature
- 500 Degrees F
- Number of Chambers
- 2 Chambers
- Number of Decks
- Double
- Number of Doors
- 4 Doors
- Number of Racks
- 10 Racks
- Oven Interior Style
- Standard Depth
- Power Type
- Electric
- Size
- Full Size
- Temperature Range
- 150 - 500 Degrees F
Customer questions about this product
Can I modify this item?
We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!
How do I know if the listed amperage is in reference to a single oven, or the combined total for each individual oven?
If you're ever unsure of an electrical specification and how it relates to your operation, be sure to check out the Specification Sheet or consult a qualified technician for additional information.
How will this double convection oven arrive? Is there anything special I need to know about setting it up?
Double deck convection ovens like this one will ship separately. You will need to uncrate each oven and then stack one on top of the other as part of the installation process. Consult your installation manual for details specific to the oven you ordered.
I see that this electrical unit is "field-convertible." What does that mean?
Electrical equipment is factory-set to use a specific voltage and phase for power. Field-convertible equipment allows your unit to accept another voltage or phase type, but this conversion must happen before it is used. For more information on which voltage and phase configurations are possible, check the item content and literature.
For safety reasons, we recommend having a qualified service professional perform the conversion. Your equipment’s warranty may require that such conversions be done by a professional, and failure to do so may void warranty coverage.
What is a Grab-n-Go rack?
Vulcan's Grab-N-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.

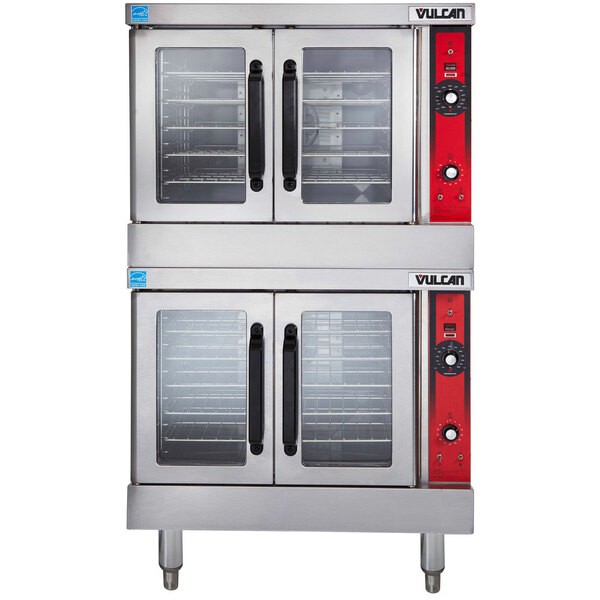

Vulcan VC55ED 240/3 Details
Cooking in your school kitchen or restaurant will be easier than ever with this VC55ED-240/3 double deck full size electric convection oven. This 240V, 3 phase unit offers a solid state thermostat with a 5 hour timer per oven for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods.
The porcelain enamel oven interiors are both attractive and easy to clean at the end of a busy day. Plus, five nickel plated Grab-n-Go racks fit into 11 different positions per oven for ultimate interior customization. One 1/2 hp two speed fan motor per compartment recirculates heated air for fast, even cooking, and each unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.
Two dual pane thermal glass windows encased by stainless steel door frames per oven help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. 8" stainless steel legs and a stacking kit come standard. A 240V, 3 phase electrical connection is required, but can be field converted to 1 phase.
Overall Dimensions:
Left to Right: 40 1/8"
Front to Back: 40"
Height: 68 13/16"
Interior Dimensions:
Left to Right: 29"
Front to Back: 22 1/8"
Height: 20"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
