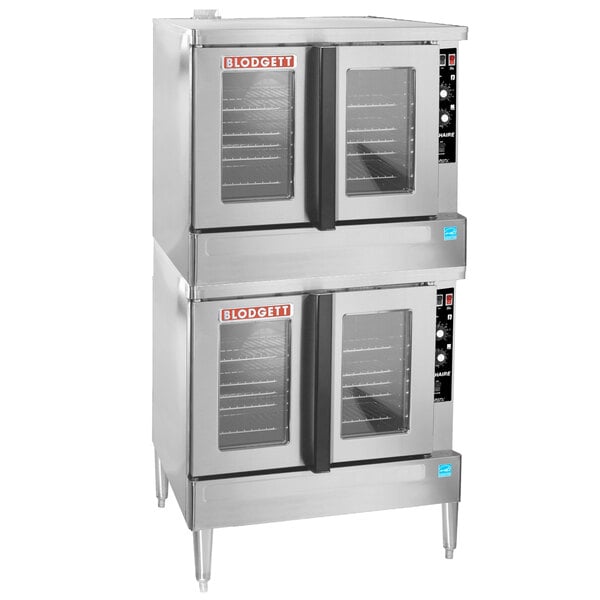

Blodgett ZEPHAIRE-100-E Double Deck Full Size Standard Depth Electric Convection Oven - 220/240V, 1 Phase, 22kW
Other Available Voltages:
- Durable full angle iron frame with 6" adjustable stainless steel legs
- 5 racks that can hold (5) 18" x 26" baking pans per deck in left to right position
- Powder-coated door handle that operates 2 dependent doors per compartment
- 14 gauge double-sided porcelainized baking compartment liner for easy clean up
- Temperature range from 200 to 500 degrees Fahrenheit and solid state manual controls
- 22kW in total; three tubular heaters and 1/2 hp blower motor per compartment
- 2 interior oven lamps
- 220/240V, 1 Phase
You May Also Need
Learn a few tips and tricks to cooking with your Blodgett Zephaire convection oven! From french fries to cookies, this oven will help you cook evenly-browned products every time.
|Blodgett ZEPH100EDBL240/1 Specs|
|Width||38 1/4 Inches|
|Depth||36 7/8 Inches|
|Height||70 5/8 Inches|
|Interior Width||29 Inches|
|Interior Depth||24 1/4 Inches|
|Interior Height||20 Inches|
|18 x 26 Pan Capacity||10 Pans|
|Energy Star Qualified||Yes|
|Made in America||Yes|
|Maximum Temperature||500 Degrees F|
|Number of Chambers||2|
|Number of Decks||Double|
|Number of Doors||4|
|Number of Racks||10|
|Oven Interior Style||Standard Depth|
|Temperature Range||200 - 500 Degrees F|
Customer questions about this product
- How will this double convection oven arrive? Is there anything special I need to know about setting it up?
- Double deck convection ovens like this one will ship separately. You will need to un-crate each oven and then stack one on top of the other as part of the installation process. Consult your installation manual for details specific to the oven you ordered.
- How do I know if the listed amperage is in reference to a single oven, or the combined total for each individual oven?
- If you're ever unsure of an electrical specification and how it relates to your operation, be sure to check out the Specification Sheet or consult a qualified technician for additional information.
Blodgett ZEPH100EDBL240/1 Details
Cooking your restaurant's most famous ribs, braised steaks, chicken, and bread will never be easier than with this Blodgett ZEPHAIRE-100-E double deck standard depth electric convection oven! Boasting a sturdy iron frame with a stainless steel top and 6" adjustable legs, this oven is sure to provide functionality to your kitchen while operating smoothly and productively. This double deck oven provides you with twice the production capacity in the same footprint as a single deck unit and features solid state manual controls with an electro-mechanical 60 minute timer for easy adjustment and monitoring of popular food items.
Thanks to each compartment's two speed fan and 1/2 hp blower motor, this convection oven efficiently recirculates heated air through its interior compartment, which reduces energy consumption and increases performance. This system offers a cost-effective way of cooking your product at a lower temperature for a shorter amount of time, allowing you to get food to the tables faster.
The powder-coated handles provide a comfortable grip when opening and closing the doors, which are tightly secured to the frame with a triple-mounted pressure lock design. The interior features five chrome-plated racks that can be configured into eleven rack positions with a minimum of 1 5/8" spacing to ensure that you are getting the most out of your oven space. This oven also has the capacity to hold up to (5) 18" x 26" standard full size baking pans per deck. A 14 gauge double-sided porcelainized baking compartment liner allows for easy clean up of your unit. As an added benefit, the interior is illuminated with 2 interior oven lamps, giving you the ability to check on your product without opening the doors and letting excess heat escape.
Each compartment has three tubular heaters that are controlled by a solid state thermostat with a temperature range from 200 to 500 degrees Fahrenheit, which gives you the ability to prepare a wide variety of products. For safety, the blower motor has an automated thermal overload protection mechanism and a control area cooling fan. It requires a 220/240V, 1 phase electrical connection.
Left to Right: 38 1/4"
Front to Back: 36 7/8"
Height: 70 5/8"
Left to Right: 29"
Front to Back: 24 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date,
please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
This product must be hardwired; it does not plug into a standard wall outlet.
