Voltage: 208V

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Single deck design with an interior light
  • Solid state controls with temperature range of 150-500 degrees Fahrenheit
  • 5 nickel plated oven Grab-n-Go racks with 11 rack positions
  • Independently operated doors with double pane windows
  • Porcelain enamel interior with stainless steel exterior; 23 3/4" legs
  • Oven cool switch for rapid cool down
  • 1/2 hp two speed blower motor
  • 208V, 12 kW, ships 3 phase; field convertible to 1 phase
UPC Code:400012159794

Vulcan VC5ED-11D1 208/3 Specs

Quantity
1/Each
Shipping Weight
355 lb.
Width
40 1/8 Inches
Depth
40 Inches
Height
54 Inches
Interior Width
29 Inches
Interior Depth
22 1/8 Inches
Interior Height
20 Inches
Hertz
60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
12 Kilowatts
Control Type
Dial
Door Type
Glass
Features
Field-Convertible (Electrical)
Horsepower
1/2 HP
Installation Type
Freestanding
Number of Decks
Single
Number of Doors
2 Doors
Number of Racks
5 Racks
Oven Interior Style
Standard Depth
Power Type
Electric
Size
Full Size
Temperature Range
150 - 500 Degrees F

Vulcan VC5ED-11D1 208/3 Details

Cooking in your school kitchen or restaurant will be easier than ever with this VC5ED-11D1 single deck full size electric convection oven. This 208V, 3 phase unit offers a solid state thermostat with a 5 hour timer for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods.

A porcelain enamel interior is both attractive and easy to clean at the end of a busy day. Plus, five nickel plated Grab-n-Go racks fit into 11 different positions for ultimate interior customization. The 1/2 hp two speed fan motor recirculates heated air for fast, even cooking, and the unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.

Two dual pane thermal glass windows encased by stainless steel door frames help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. To boost your oven to the perfect working height, 23 3/4" legs come included. A 208V, 3 phase electrical connection is required for operation, but can be field converted to 1 phase.

Overall Dimensions:
Left to Right: 40 1/8"
Front to Back: 40"
Height: 54"

Interior Dimensions:
Left to Right: 29"
Front to Back: 22 1/8"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

I see that this electrical unit is "field-convertible." What does that mean?

Electrical equipment is factory-set to use a specific voltage and phase for power. Field-convertible equipment allows your unit to accept another voltage or phase type, but this conversion must happen before it is used. For more information on which voltage and phase configurations are possible, check the item content and literature.

For safety reasons, we recommend having a qualified service professional perform the conversion. Your equipment’s warranty may require that such conversions be done by a professional, and failure to do so may void warranty coverage.

What is a Grab-n-Go rack?

Vulcan's Grab-N-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Field Convertible (Electrical)

    Field Convertible (Electrical)

    This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VC5ED-11D1 208/3 today!

Resources and Downloads for
Vulcan VC5ED-11D1 208/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Customer Reviews

2.0

Rated 2 out of 5 stars

1 Customer Reviews

0 reviews rated this 5 out of 5 stars.

0 reviews rated this 4 out of 5 stars.

0 reviews rated this 3 out of 5 stars.

1 reviews rated this 2 out of 5 stars.

0 reviews rated this 1 out of 5 stars.

Frequently Mentioned

  • oven
  • guide
  • racks
  • review
  • vulcan
  • webstaurantcom
  • business
  • electric
  • flakes
  • manufacturing
Rated 2 out of 5 stars
Rated 2 out of 5 stars
Review by

Jeff V.

Posted on 03/09/2023

Verified Purchase

Voltage:
208V

Our small business bakery ordered this Vulcan electric oven in December of 2021. In the past year and three months, it has performed well enough. The oven is easy to use and presents fairly quick and even baking - even for our exclusively gluten free and mostly vegan baked goods. HOWEVER, this past week we noticed severe peeling on both guide rails for the oven racks. See photos. We also discovered plastic or chrome flakes on our products. For a reputable brand such as Vulcan, this manufacturing defect is unacceptable, especially within such a short timeframe. We have a 30+ year old Blodgett electric oven that is battle scarred, but there are no flakes or peeling from any of the racks or guide rails. What's worse is that since the warranty expired only 3 months ago, we are relegated to purchasing two Read More

8 out of 9 found this review helpful

Thank you for your review, Jeff! We are sorry this product has not worked well for you. A Customer Solutions Representative will contact you soon!

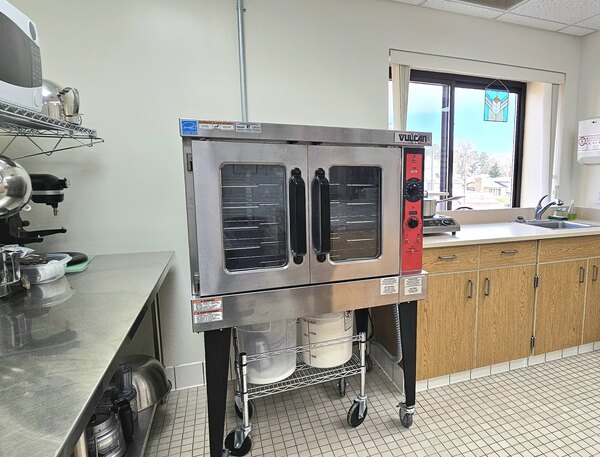

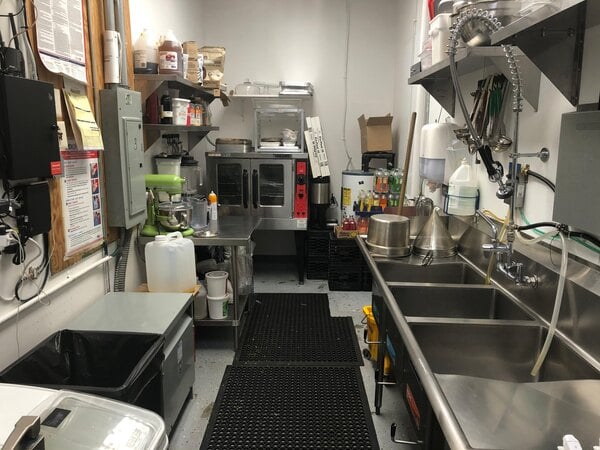

Customer Photos & Videos
