Fuel Type: Natural Gas
Installation Services
Product Overview
- Master 200 solid state analog controls
- 2-speed fan control with 3/4 hp motor
- 6 chrome-plated oven racks included
- Electric spark ignition with safety shut off
- Stainless steel front, sides, top, and legs
- 60/40 double pane dependent door design
- Natural gas
Shipping Restrictions
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 546 lb.
- Width
- 38 Inches
- Depth
- 44 1/2 Inches
- Height
- 57 1/2 Inches
- Interior Width
- 29 Inches
- Interior Depth
- 28 Inches
- Interior Height
- 24 Inches
- 18 x 26 Pan Capacity
- 6 Pans
- Control Type
- Dial
- Features
- NSF Listed Spark / Piezo Ignition
- Gas Connection Size
- 3/4 Inches
- Installation Type
- Freestanding
- Number of Chambers
- 1 Chamber
- Number of Decks
- Single
- Number of Doors
- 2 Doors
- Number of Racks
- 6 Racks
- Oven Interior Style
- Deep Depth
- Plug Type
- NEMA 5-15P
- Power Type
- Natural Gas
- Size
- Full Size
- Temperature Range
- 150 - 500 Degrees F
- Total BTU
- 60,000 BTU

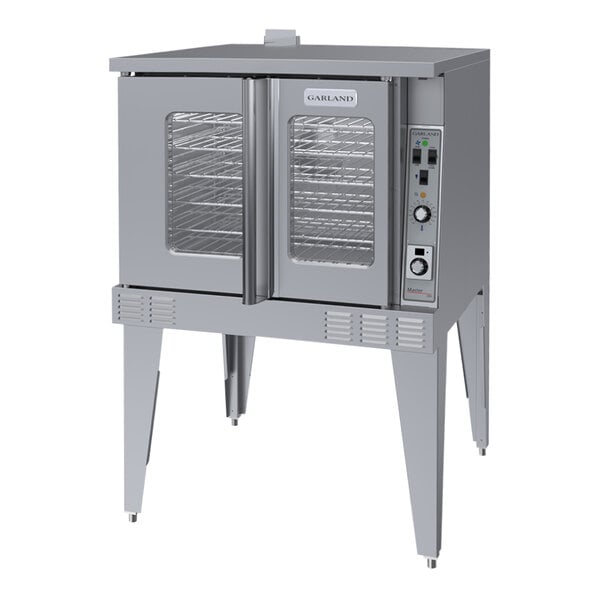

Garland / US Range MCO-GD-10S-0241 Details
This Garland MCO-GD-10S natural gas single deck deep depth convection oven combines superior power with ample interior baking space! The MCO-GD-10S has a porcelain interior with coved corners for better airflow and a stainless steel front, sides, top, and legs. The MCO-GD-10S has a Master 200 solid state analog controls with an electronic thermostat with a temperature range of 150-500 degrees Fahrenheit.
The MCO-GD-10S also has an electric timer and a 2-speed, 3/4 hp fan motor. This unit features a 60/40 dependent door design with double pane, thermal windows and indoor lighting. Both the auto-setback feature, which cools the oven down to 250 degrees Fahrenheit after 30 minutes of inactivity, and the auto-cool down feature, which cools down the oven cavity before shutting it off, thus prolonging fan life, are standard on the MCO-GD-10S.
In addition to these great energy-saving features, the MCO-GD-10S comes with 6 chrome-plated oven racks and 13-position rack guides. Its deep depth (sometimes called bakery depth) convection ovens allow the user to load standard size pans in either direction, something that cannot be done in a standard depth model. As a result, multiple pans can be "staggered" or faced in alternating directions on the racks for better airflow and more even results, particularly when baking.
Overall Dimensions:
Width: 38"
Depth: 44 1/2"
Height: 57 1/2"
Oven Dimensions:
Width: 29"
Depth: 28"
Height: 24"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
Can I modify this item?
Is this cooking equipment available in all 50 states?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
UL Gas-Fired, US
This gas-fired appliance has been certified by the Underwriters Laboratory (UL) to meet applicable product standards required for use in the United States.
UL Gas-Fired, Canada
This gas-fired appliance has been certified by the Underwriters Laboratory (UL) to meet applicable product standards required for use in Canada.
5-15P
This unit comes with a NEMA 5-15P plug.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
Need Parts & Accessories?
Show replacement parts and accessories for Garland / US Range MCO-GD-10S-0241 today!
Resources and Downloads for
Garland / US Range MCO-GD-10S-0241
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Please note that this item is subject to a 7% export warranty administration fee for all international orders.
Please note that this item is subject to a 15% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only.
