Name: Waterloo 1.15 GPM Low Profile Deck-Mounted Pre-Rinse Faucet with 4" Centers and 6" Add-On Faucet
Brand: Waterloo
SKU: 750PRDL46
Price: 329.99 USD
Availability: InStock

0:00 / 0:00

Only

$329.99/Each

Ships free with Plus

Earn up to $9.90 back (990 points)with a Webstaurant Rewards Visa® Credit Card

Size: 6" Add-On Faucet

Quick Shipping

Usually ships in 1 business day

Product Overview

23" hose, 1.15 GPM spray valve
Deck-mounted design with 4" centers, 1/2" NPT inlets
1/4 turn ceramic cartridges for long life and leak-protection, check valves prevent backflow
Heavy-duty faucet base and spray valve, chrome-plated brass construction
6" add-on faucet (2 GPM), 10" riser, low height for height-restricted areas

Shipping Restrictions

This item cannot ship to AZ or CA

UPC Code:400013805652

View all Waterloo Pre-Rinse Faucets

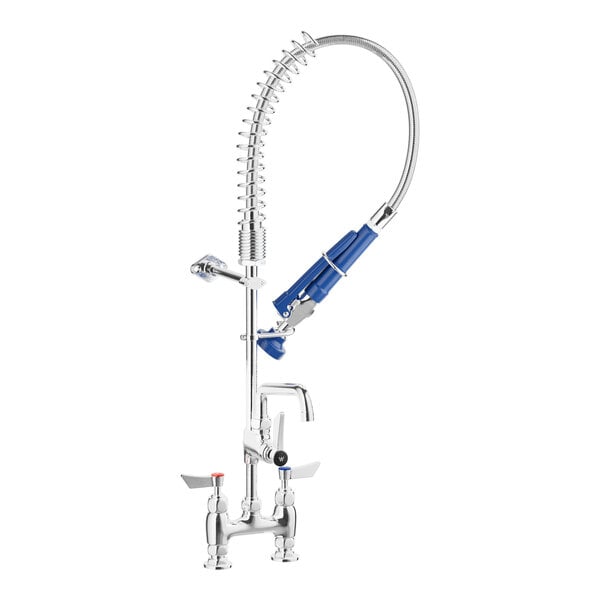

This Waterloo low profile deck-mounted pre-rinse faucet is perfect for rinsing excess food and sauces off of your dishes.

A quality pre-rinse unit is vital to any dishroom, removing the heaviest soil deposits so that dishes come out clean and ready to use. Waterloo products provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies, ceramic cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install Waterloo products with confidence. And to give you total peace of mind, this model comes with a 3-year replacement warranty.

CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Flexible and Durable

A 23" long flexible hose gives you plenty of reach to deliver water where you need it, letting you handle glassware and dinnerware, or bulky items like pots and pans. The spring has a compressed bottom to provide greater durability and help it retain its shape. The heavy-duty valve body is designed with a comfort-grip handle and uses metal components for maximum durability and leak protection.

Versatile for Your Needs

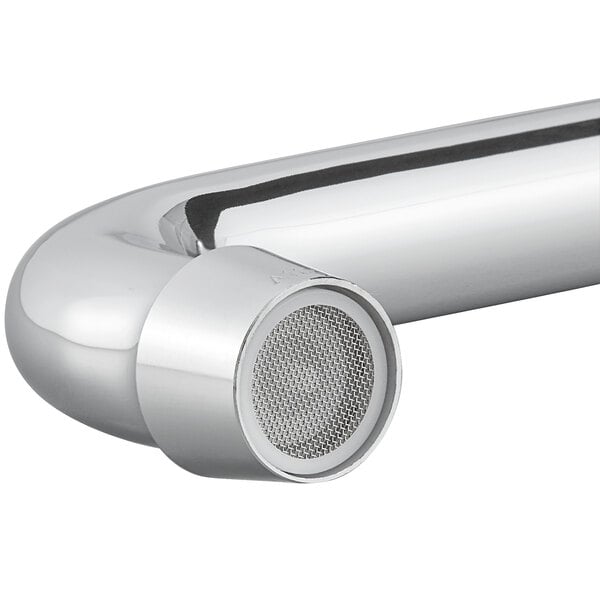

The spray valve delivers a flow rate of 1.15 GPM, giving you the power needed to blast away food debris while being easy on your water bill. This pre-rinse unit also comes with an 6" add-on faucet, for times when you need a normal faucet instead of a spray valve. It is perfect for filling up sink compartments to complete your warewashing tasks. It's also great for mixing up cleaning solutions in sanitation pails.

Reduce Need for Replacements

This faucet uses ceramic cartridges, which provide a much lower fail rate than the compression cartridges widely used in the industry. In this design, 2 ceramic discs fit together to create a watertight seal when closed. This removes the need for a rubber seat washer, which is one of the most frequently replaced parts on a faucet.

Easy to Install

This is a deck-mounted faucet, and it comes with 4" centers that make installation easy. A set of 1/2" NPT inlets make it easy to connect it to your facility's water lines. Great for height-restricted installations, this low-profile pre-rinse unit comes with a 10" riser.

Customer Q&AAsk a Question

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can this item ship to all 50 states?

This item cannot ship to California or Arizona.

How do I put an add-on faucet on my Waterloo pre-rinse?

If your pre-rinse came with an add-on faucet, it will include everything needed to install. If your pre-rinse does not have an add-on faucet, simply purchase a 750PRRADAPT add-on faucet adapter with your desired add-on faucet. Thread the add-on faucet onto the pre-rinse base, thread the adapter onto the top of the add-on faucet, and then thread your pre-rinse faucet riser onto the adapter to complete installation!

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I live in California. Can I purchase this product?

This product cannot be shipped to California.

What parts do I need to install my new faucet?

For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!

Compare to Other Products

Item #: 750prdl46Waterloo 1.15 GPM Low Profile Deck-Mounted Pre-Rinse Faucet with 4" Centers and 6" Add-On Faucet
Free Shipping
Price:$329.99/Each

23 Inches

Brass

Deck Mounted

Item #: 750prd812Waterloo 1.15 GPM Deck-Mounted Pre-Rinse Faucet with 8" Centers and 12" Add-On Faucet
Free Shipping
Price:$314.99/Each

38 Inches

Brass

Deck Mounted

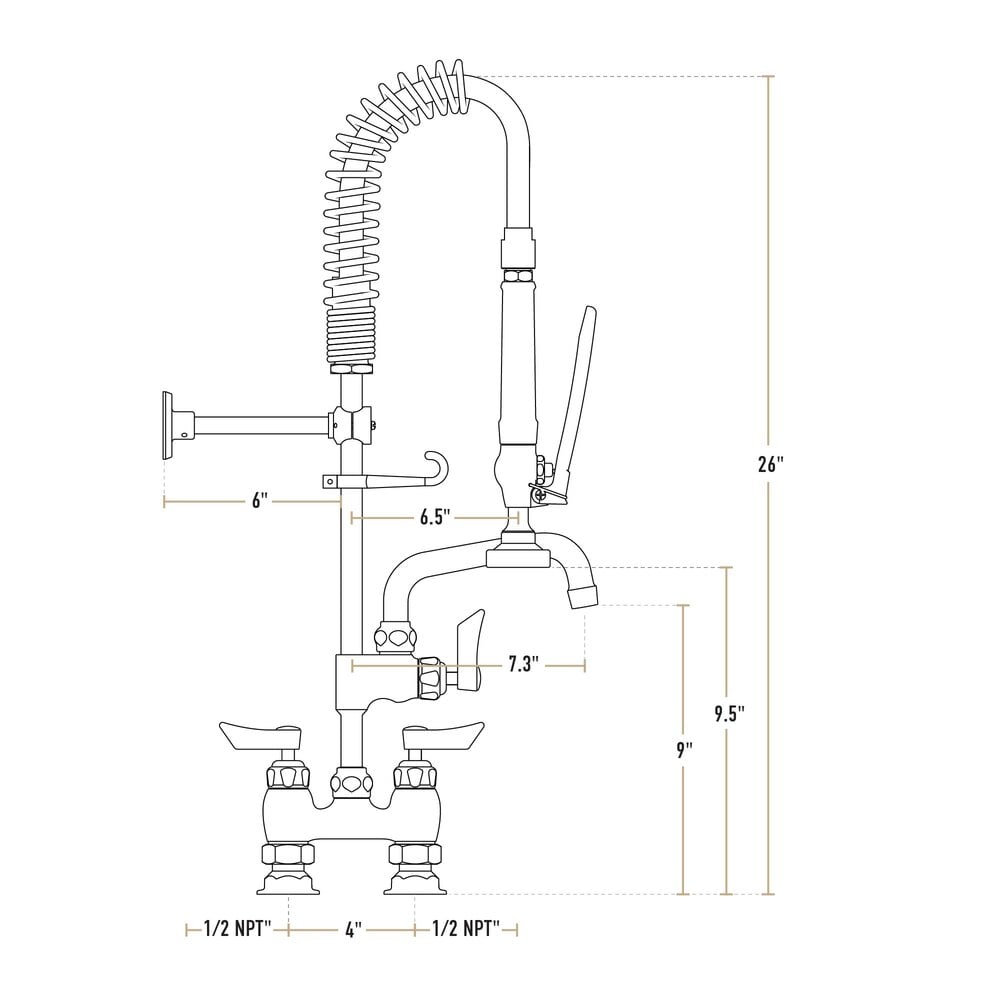

Overall Dimensions:

Hose Length:: 23 Inches
Add-On Faucet:: 6 Inches

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

NSF International

How to Choose the Right Faucet

Quantity: 1/Each
Shipping Weight: 12 lb.
Hose Length: 23 Inches
Faucet Height: 26 Inches
Add-On Faucet: 6 Inches
Add-on Flow Rate: 2 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 4 Inches
Features: ASME A112.18.1-2018 / CSA B125.1-18 Massachusetts Accepted Plumbing Product NSF/ANSI 372 NSF/ANSI 61
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Deck Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Mini Pre-Rinse Faucets
Spray Valve Flow Rate: 1.15 GPM
Temperature Rating: 180 Degrees F
Thread Size: 55/64"-27 UNS
Water Inlet Size: 1/2 Inches
