$282.99/Each

Ships free with Plus
Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $8.49 back (849 points)with a Webstaurant Rewards Visa® Credit Card

Wish List
Rapid Reorder

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 8" centers; adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 44" flex hose; 1.15 GPM 5SV Equip spray valve
  • Lever handles with color coded screws
  • Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
  • Includes 6" wall bracket and 14 1/8" add-on faucet; 38 5/16" overall height
UPC Code:671262593991
View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

T&S Brass and Bronze Works 5PR-8D14 Specs

Quantity
1/Each
Shipping Weight
12.64 lb.
Hose Length
44 Inches
Faucet Width
11 3/4 Inches
Faucet Height
38 5/16 Inches
Add-On Faucet
14 1/8 Inches
Add-on Flow Rate
4.52 GPM
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
Hose and Spring
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works 5PR-8D14 Details

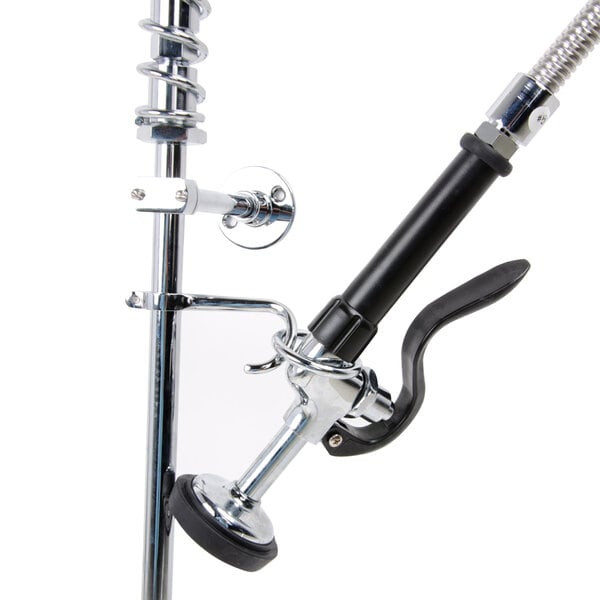

This Equip by T&S 5PR-8D14 deck mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. Additionally, a 14 1/8" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! To make installation easy, it also boasts in-line check valves and 1/2" NPT female inlets on 8" adjustable centers.

Lever handles with color coded screws are ideal for durability and easy operation, and the ceramic cartridges provide excellent durability and leak resistance since there is no seat washer. This faucet includes a wall bracket for added support, as well as in-line check valves. Its chrome plated brass construction makes it durable for use in commercial environments.

Overall Dimensions:
Faucet Height: 38 5/16"
Faucet Width: 11 3/4"
Add-On Faucet: 14 1/8"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
Ask your own question!
  • 1 1/2" Water Connection

    1 1/2" Water Connection

    This unit comes with a 1 1/2" water connection for water supply.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Resources and Downloads for
T&S Brass and Bronze Works 5PR-8D14

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

  • How to Choose the Right Faucet

    • Customer Reviews

    4.3

    Rated 4.3 out of 5 stars

    3 Customer Reviews

    1 reviews rated this 5 out of 5 stars.

    2 reviews rated this 4 out of 5 stars.

    0 reviews rated this 3 out of 5 stars.

    0 reviews rated this 2 out of 5 stars.

    0 reviews rated this 1 out of 5 stars.

    Frequently Mentioned

    • dishes
    • faucet
    • made
    • timely
    • attachment
    • begin
    • business
    • buy
    • buying
    • contacted
    Rated 4 out of 5 stars
    Rated 4 out of 5 stars
    Review by

    Joseph G. from Genovese's

    Posted on 03/11/2018

    Verified Purchase

    Workedwell for the first two years and then it started to leak water.Just a few turns of the wrench..Easy to put together.Great buy and I would recommend buying this faucet.

    Rated 4 out of 5 stars
    Rated 4 out of 5 stars
    Review by

    Alejandrina R.

    Posted on 07/21/2017

    Verified Purchase

    Made washing dishes easier and faster over all since now all we have to do is spray them from a far rather than holding each individual dish

    Rated 5 out of 5 stars
    Rated 5 out of 5 stars
    Review by

    Lesha D.

    Posted on 10/19/2013

    Verified Purchase

    Very impressed with the timely manner in receiving the products, however I did purchase the wrong faucet attachment but have emailed your staff and was contacted in a timely manner, The product appears well made and I am excited to begin using, will send pics once my business is up and ready. thank you
