Name: T&S MPJ-8CLN-08-CR EasyInstall Deck Mounted Pre-Rinse Faucet with 8" Centers, 24" Hose, 8" Add-On Faucet, 1.07 GPM Spray Valve, and Cerama Cartridges
Brand: T&S Brass and Bronze Works
SKU: 510MPJ8C08CR
Price: 501.87 USD
Availability: LimitedAvailability

A close-up of a chrome T&S pre-rinse faucet with a hose attached.

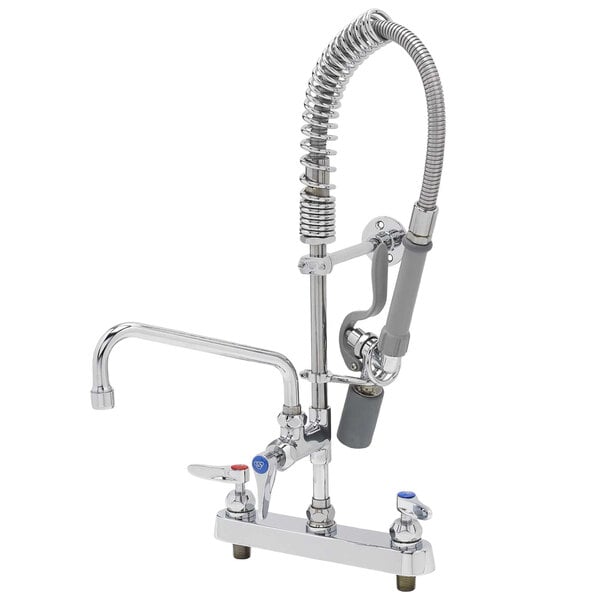

A chrome T&S deck mounted pre-rinse faucet with a silver hose attached.

0:00 / 0:00

$501.87/Each

Ships free with Plus

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $15.06 back (1,506 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Deck mounted on 8" centers; 8" riser
24" flexible stainless steel hose with heat resistant handle
8" add-on faucet with swing nozzle
1.07 GPM spray valve
Lever handles with color coded indexes

UPC Code:671262805087

View all T&S Brass and Bronze Works Pre-Rinse Faucets

plus
Easyflex White PTFE Thread Seal Tape 1/2" x 520"
$0.79/Each
plus
T&S B-1100-KIT Inlet Kit with 24" Hoses (1/2" NPSM Female x 3/8" Compression)
$9.39/Each

Quantity: 1/Each
Shipping Weight: 13.4 lb.
Hose Length: 24 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 22 11/16 Inches
Add-On Faucet: 8 Inches
Add-on Flow Rate: 5.44 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Deck Mounted
Mounting Type: Workboard
Pre Rinse Unit Type: Mini Pre-Rinse Faucets
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.07 GPM
Temperature Rating: 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

Details

This T&S MPJ-8CLN-08-CR deck mounted pre-rinse faucet is the perfect way to remove stubborn soil from dishes and cookware so that they can be thoroughly cleaned! This unit features a 24" flexible stainless steel hose for superior durability in any setting, while the 1.07 GPM spray valve is designed to deliver maximum spray power and minimal utility costs. A heat-resistant handle protects the user as they grip the spray valve. The simple spring design helps hold the hose in place and provide additional support without limiting your mobility. An 8" add-on swing faucet provides added versatility by allowing you to fill a sink and perform other functions that a spray valve may not be best-suited for.

This faucet's 8" centers make it easy to install, as well. The water flow is controlled by two lever handles with hot and cold color-coded indexes, and quarter-turn Cerama cartridges with check valves will prevent water cross flow. For added support, this faucet also comes with a 6" wall bracket that secures your unit to the wall.

Overall Dimensions:
Faucet Height: 22 11/16"
Faucet Width: 12 5/8"
Add-On Faucet: 8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

Ask your own question!

Made in America
This item was made in the United States of America.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
