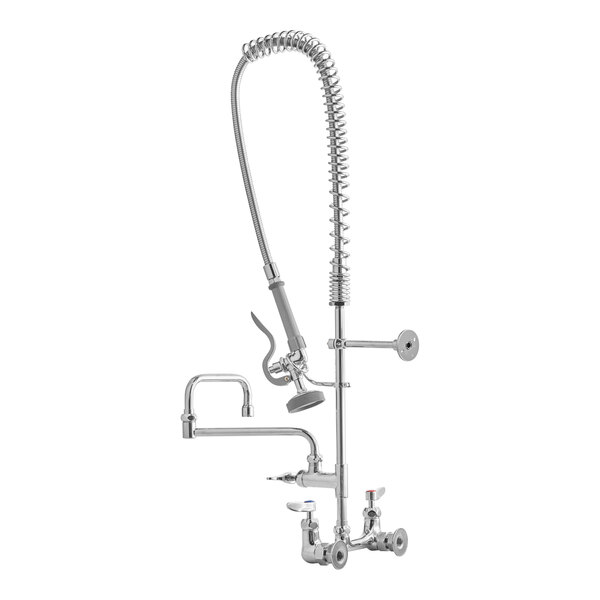

T&S B-0154-CR Wall Mount Mixing Faucet with 15" Double-Jointed Swing Nozzle and Pre-Rinse Unit with 1.15 GPM Spray Valve
Item number 510b0154crMFR number B-0154-CR
Free Shipping
$551.37/Each
Ships free with
Login or enter your email to be instantly sent the price!
Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Earn up to $16.54 back (1,654 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Estimated Shipping Time
Delivery time may vary depending on your location. Use the shipping calculator on the cart page to estimate arrival times by entering your zip code. If an order is time-sensitive, check with our customer service team.
Product Overview
- Double-jointed 15" swing nozzle provides exceptional clearance and flexibility
- Built with a polished, chrome-plated brass body
- 44" flexible hose is complete with a strong 1.15 GPM spray valve
- Features quarter-turn Cerama cartridges with check valves
- Convenient wall mount configuration
UPC Code:400016246179
- Quantity
- 1/Each
- Shipping Weight
- 14 lb.
- Hose Length
- 44 Inches
- Faucet Width
- 12 5/8 Inches
- Faucet Height
- 31 9/16 Inches
- Add-On Faucet
- 15 Inches
- Add-On Type
- Double Jointed
- Cartridge Type
- Ceramic
- Faucet Centers
- 7 3/4 - 8 1/4 Inches
- Features
- Made in America
- Finish
- Chrome
- Handle Type
- Lever
- Material
- Brass
- Mounting Style
- Wall Mounted
- Mounting Type
- Workboard
- Pre Rinse Unit Type
- Hose and Spring
- Spray Valve Flow Rate
- 1.15 GPM
- Water Inlet Size
- 1/2 Inches
T&S Brass and Bronze Works B-0154-CR Details
This T&S B-0154-CR wall mount mixing faucet with 15" double-jointed swing nozzle and pre-rinse unit with 1.15 GPM spray valve is the optimal choice for your establishment! Thanks to its durable brass construction, this unit offers longevity and dependability throughout consistent use, and the quarter-turn Cerama cartridges are complete with check valves to keep the faucet running properly. Color-coded indexes ensure that the lever handles are clearly labeled for quick temperature identification. The 15" double-jointed swing nozzle offers optimal clearance and flexibility while also providing exceptional water pressure with the 2.2 GPM aerator.
In addition to the expertly designed wall mount faucet, this unit also features a wall mount pre-rinse unit held in place by the 6" wall bracket. The stainless steel 44" flexible hose is complete with a spring and a 1.15 GPM spray valve with a hold-down ring. A 12" chrome-plated riser attaches the pre-rinse unit to the faucet and is built with a finger hook that holds the spray valve in place when not in use.
Overall Dimensions:
Faucet Width: 12 5/8"
Faucet Height: 31 9/16"
Attention CA Residents:
Made in America
This item was made in the United States of America.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Can I get a spray valve with a higher flow rate (GPM)?
The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
How do I use a wall bracket to stabilize a pre-rinse faucet?
Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.
If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.
If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
How is the pre-rinse hose length measured?
Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.
What measurements do I need to install a faucet?
When installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
