$298.99/Each

Ships free with Plus
Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $8.97 back (897 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 8" centers; adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 44" flex hose; 1.15 GPM 5SV Equip spray valve
  • Lever handles with color coded screws
  • Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
  • Includes 6" wall bracket and 10 1/8" add-on faucet; 35 11/16" overall height
UPC Code:671262565660

T&S Brass and Bronze Works 5PR-8W10 Specs

Quantity
1/Each
Shipping Weight
12.37 lb.
Hose Length
44 Inches
Faucet Width
11 3/4 Inches
Faucet Height
35 11/16 Inches
Add-On Faucet
10 1/8 Inches
Add-on Flow Rate
4.52 GPM
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
Hose and Spring
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works 5PR-8W10 Details

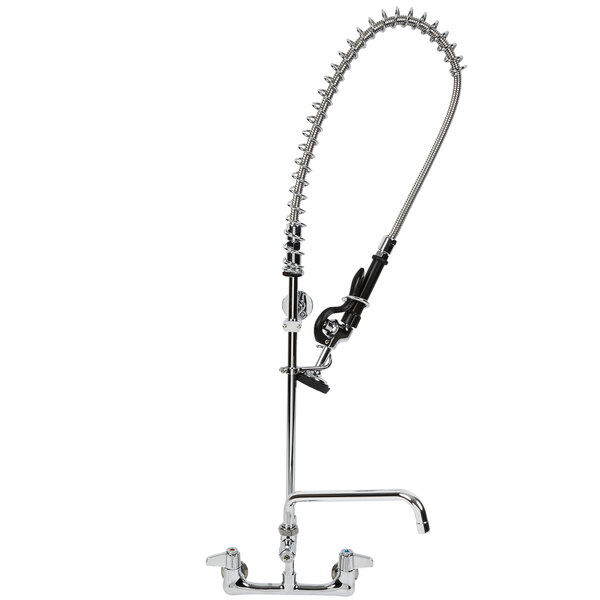

This Equip by T&S 5PR-8W10 wall mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. Additionally, a 10 1/8" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! To make installation easy, it also boasts in-line check valves and 1/2" NPT female inlets on 8" adjustable centers.

Lever handles with color coded screws are ideal for durability and easy operation, and the ceramic cartridges provide excellent durability and leak resistance since there is no seat washer. This faucet includes a wall bracket for added support, as well as in-line check valves. Its chrome plated brass construction makes it durable for use in commercial environments.

Overall Dimensions:
Faucet Height: 35 11/16"
Faucet Width: 11 3/4"
Add-On Faucet: 10 1/8"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
Ask your own question!
  • 1 1/2" Water Connection

    1 1/2" Water Connection

    This unit comes with a 1 1/2" water connection for water supply.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Need Parts & Accessories?

Show replacement parts and accessories for T&S Brass and Bronze Works 5PR-8W10 today!

Resources and Downloads for
T&S Brass and Bronze Works 5PR-8W10

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

4.0

Rated 4 out of 5 stars

5 Customer Reviews

2 reviews rated this 5 out of 5 stars.

2 reviews rated this 4 out of 5 stars.

0 reviews rated this 3 out of 5 stars.

1 reviews rated this 2 out of 5 stars.

0 reviews rated this 1 out of 5 stars.

Customers Say

Customers appreciate the ease of installation and the good value of this pre-rinse faucet, noting it performs well for its price. Some users report issues with parts not fitting properly and potential leaks, especially when using the spray at full power. Overall, opinions on durability and component quality vary.

  • faucet
  • great
  • sprayer
  • easy
  • works
  • buy
  • cheaper
  • compartments
  • install
  • locally

This AI-generated summary was created from real customer reviews

Rated 2 out of 5 stars
Rated 2 out of 5 stars
Review by

William A. from Jerseys Bar And Grill

Posted on 01/16/2018

Verified Purchase

Works great for a couple months, the sprayer is cheap and falls apart. I would spend the extra money and get something higher quality. Would probably work great for a house though.

Thank you for your feedback! We’re sorry you did not prefer this product. For recommendations, please contact our Customer Solutions team.

Rated 4 out of 5 stars
Rated 4 out of 5 stars
Review by

Gabriel F. from Chicali Tacos

Posted on 10/03/2016

Verified Purchase

This rinse faucet comes very handy when you need to us the spray or just then faucet. There are not too many parts so the installation is fairly easy. The only thing that didn't get me completely satisfied is that when I used the spray at full power it leaks. I am not sure is that is a plumbing problem but I was a little disappointed at that.

Rated 5 out of 5 stars
Rated 5 out of 5 stars
Review by

Melinda R. from First Baptist Church

Posted on 07/03/2016

Verified Purchase

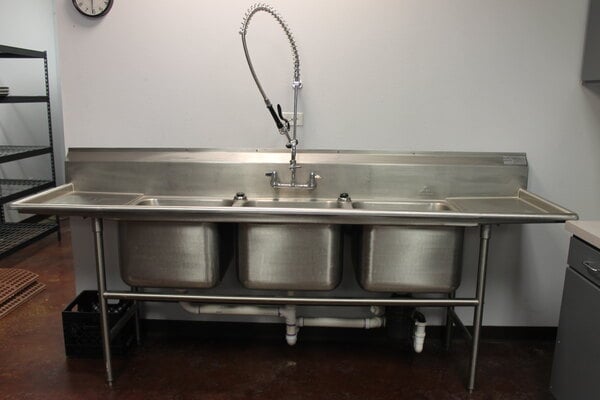

This faucet has worked great for our cabin in our commercial three compartment sink. The sprayer is powerful enough and it was easy to install. We ended up ordering a longer add-on faucet from the manufacturer in order for it to reach all three compartments, but other than that we are pleased with the product and value.

Rated 4 out of 5 stars
Rated 4 out of 5 stars
Review by

Kelly S. from Spanky's Videos & Games

Posted on 10/31/2014

Verified Purchase

Very easy to install, great product for a good price. Cheaper than anything we could find locally by a good bit. Works as good as any other sprayer I've ever used.

Rated 5 out of 5 stars
Rated 5 out of 5 stars
Review by

Kevin M. from Minden Meat

Posted on 11/11/2012

Verified Purchase

Buy this Pre Rinse Faucet vs spending on other brands or models. Works like a champ except for the add on brass elbows, buy them from a local store. All four of ours didn't fit right and leaked.
