Name: Equip by T&S 5PR-4D00 Deck Mounted 34" High Pre-Rinse Faucet with 4" Adjustable Centers, 44" Hose, and 6" Wall Bracket
Brand: T&S Brass and Bronze Works
SKU: 5105PR4D00
Price: 244.49 USD
Availability: InStock

0:00 / 0:00

Only

$244.49/Each

Ships free with Plus

Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $7.33 back (733 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

4" centers; adjustable from 3 3/4" to 4 1/4"; 1/2" NPT female inlets with 2" flange
44" flex hose; 1.15 GPM 5SV Equip spray valve
Lever handles with color coded screws
Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
Includes 6" wall bracket; 34 1/16" overall height

UPC Code:400010597673

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 10.53 lb.
Hose Length: 44 Inches
Faucet Width: 7 3/4 Inches
Faucet Height: 34 1/16 Inches
Add-On Faucet: None
Cartridge Type: Ceramic
Faucet Centers: 4 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Deck Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.15 GPM
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works 5PR-4D00 Details

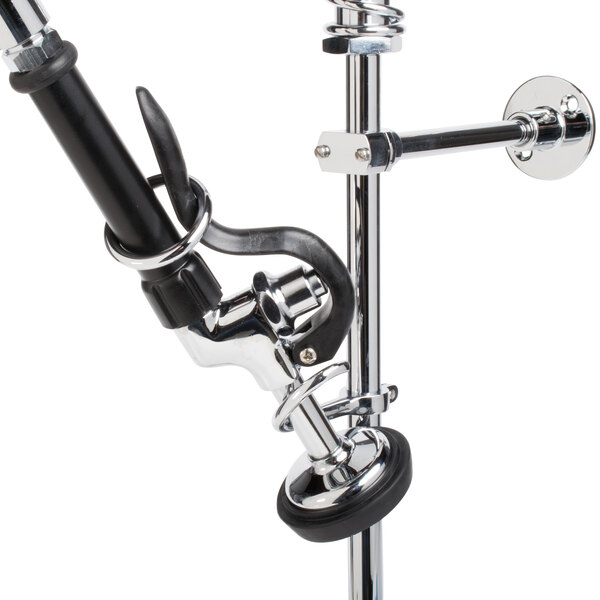

This Equip by T&S 5PR-4D00 Equip mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. To make installation easy, it also boasts in-line check valves and 1/2" NPT female inlets on 4" adjustable centers.

Lever handles with color coded screws are ideal for durability and easy operation, and the ceramic cartridges provide excellent durability and leak resistance since there is no seat washer. This faucet includes a wall bracket for added support, as well as in-line check valves. Its chrome plated brass construction makes it durable for use in commercial environments.

Overall Dimensions:
Faucet Height: 34 1/16"
Faucet Width: 7 3/4"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.

Ask your own question!

1 1/2" Water Connection
This unit comes with a 1 1/2" water connection for water supply.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
