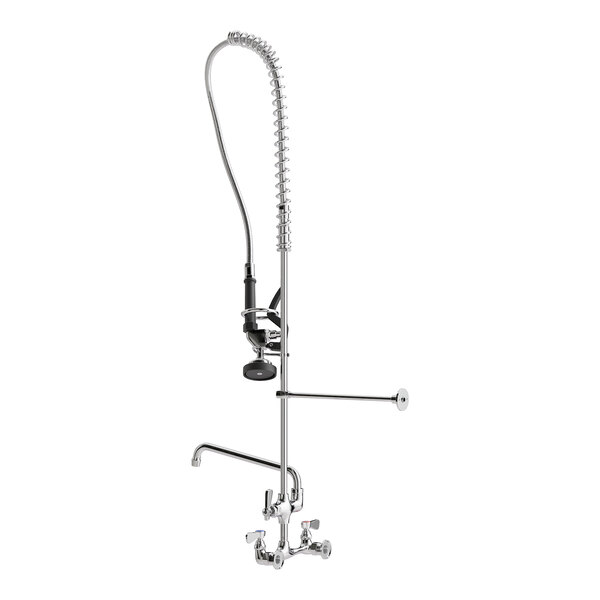

Wall-Mounted Pre-Rinse Faucet with 8" Centers and 12" Add-On Faucet

Item number 190prw812k

View in 3D

Ships free with

Free Shipping

Only

$199.99/Each

Earn up to $6.00 back (600 points)
(600 points) with a Webstaurant Rewards Visa® Credit Card
Apply, opens link in this tab

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

Durable chrome-plated brass and stainless steel

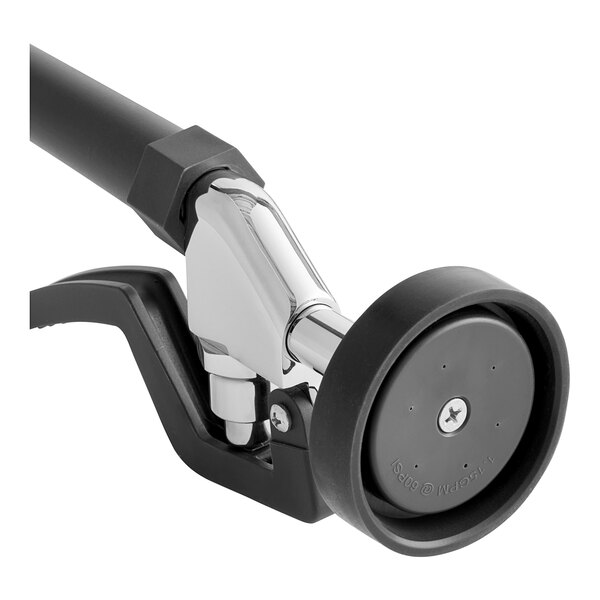

44" hose with 1.15 GPM spray head and ceramic cartridge valves

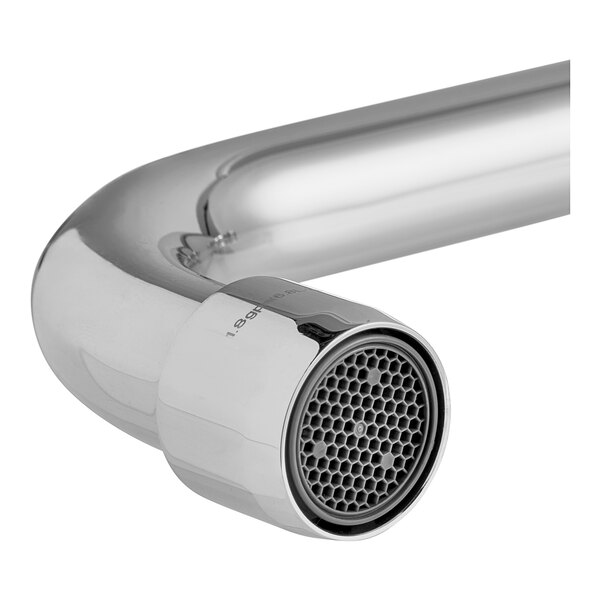

12" stainless steel swing spout with 1.8 GPM flow rate
Wall-mounted design with 8" centers and handles with quarter-turn ceramic cartridges
Includes 18" riser and stainless spring holder

UPC Code:400018240243

View all Assure Parts Pre-Rinse Faucets

Other Products from this Line

Deck-Mounted Pre-Rinse Faucet with Single Inlet and 12" Add-On Faucet
$199.99/Each
Add to Cart
Quantity for Deck-Mounted Pre-Rinse Faucet with Single Inlet and 12" Add-On Faucet

Quantity: 1/Each
Shipping Weight: 11.8 lb.
Hose Length: 44 Inches
Faucet Width: 12 1/8 Inches
Faucet Height: 42 7/16 Inches
Riser Height: 18 Inches
Add-On Faucet: 12 Inches
Add-on Flow Rate: 1.8 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Features: NSF Certified With Riser
Finish: Chrome
Handle Type: Lever
Material: Brass Stainless Steel
Mounting Style: Wall Mounted
Mounting Type: Bridge
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 60 PSI
Spray Valve Flow Rate: 1.15 GPM
Thread Type: NPT
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

Details

Increase efficiency and cleanliness in your commercial kitchen with this Assure Parts pre-rinse faucet! This wall-mounted pre-rinse faucet features a 44" hose with a spray valve that is ideal for rinsing excess food from dishes before running them through a commercial dish machine. It's made with durable, stylish chrome-plated brass and stainless steel, and it features a 1.15 GPM flow rate at 60 PSI for efficient rinsing and cleaning of dishes. The faucet features 8" centers, and the handles are made with quarter-turn ceramic cartridges for smooth, precise control of water flow and temperature. This pre-rinse faucet kit is an essential addition to any commercial kitchen, whether you're running a busy restaurant, cafeteria, or cafe.

This pre-rinse faucet kit includes a convenient add-on 12" stainless steel swing-spout faucet with an aerator and a 1.8 GPM flow rate at 60 PSI for added flexibility and convenience during food preparation to complete tasks that require a regular faucet. This unit also includes an 18" riser, a stainless spring holder, and 1/2"-14 NPT inlets. Designed for durability and reliability in busy atmospheres, this unit meets the demands of high-volume commercial kitchens while maintaining optimal performance and hygiene standards. Upgrade with this versatile pre-rinse faucet kit for a reliable, efficient solution for your dishwashing needs! This kit includes 190PRA12 and 190PRW8X, which are both NSF-listed.

Kit Includes:
- Wall-mount pre-rinse faucet with 44" hose and spray valve
- 12" add-on swing-spout faucet

Overall Dimensions:
Faucet Height: 42 7/16"
Faucet Width: 12 1/8"
Hose Length: 44"
Add-On Faucet: 12"

Attention CA Residents:

1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
NSF Certified
This item is certified by NSF to applicable standards.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Find Parts for this Item

Resources and Downloads

Specsheet

Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Resources

How to Choose the Right FaucetOpens in new tab
