$533.22/Each

Ships free with Plus

or enter your email to be instantly sent the price!

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $16.00 back (1,600 points)with a Webstaurant Rewards Visa® Credit Card

Wish List
Rapid Reorder

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 68" flex hose; 1.15 GPM B-0107-035 spray valve
  • Lever handles with color coded indexes
  • Eterna compression cartridges with spring checks; can withstand water temperatures up to 140 degrees
  • Includes 8" add-on faucet, 90 degree swivel adapter, and wall hook
UPC Code:671262664394
View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

T&S Brass and Bronze Works B-0175-06 Specs

Quantity
1/Each
Shipping Weight
11.7 lb.
Hose Length
68 Inches
Faucet Width
12 5/8 Inches
Faucet Height
10 11/16 Inches
Add-On Faucet
8 Inches
Add-on Flow Rate
9.73 GPM
Add-On Type
Swing
Cartridge Type
Compression
Faucet Centers
8 Inches
Features
Angled Spray Valve
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
No Riser
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works B-0175-06 Details

This T&S B-0175-06 wall mounted pre-rinse faucet features a 90 degree swivel adapter and 68" flex hose that gives you maximum flexibility and reach for a variety of tasks! A 1.15 GPM spray valve delivers water right where you need it, and an ergonomic squeeze handle allows easy and intuitive use. Additionally, an 8" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! To make installation easy, it also boasts 1/2" NPT female inlets on 8" adjustable centers.

- 68" flex hose is great for many pre-rinse applications

- 1.15 GPM spray valve (B-0107-035) with ergonomic squeeze handle

- Lever handles with color coded indexes for durability and easy operation

- Eterna compression cartridges provide excellent durability; solid brass spindle and body; spring checks are included

- 8" add-on swing faucet is perfect for times when you need water but don't need a pre-rinse faucet

- Wall hook lets you hang up spray valve when not in use

- Durable chrome plated brass construction

Overall Dimensions:
Faucet Height: 10 11/16"
Faucet Width: 12 5/8"
Add-On Faucet: 8"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Need Parts & Accessories?

Show replacement parts and accessories for T&S Brass and Bronze Works B-0175-06 today!

Resources and Downloads for
T&S Brass and Bronze Works B-0175-06

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

  • How to Choose the Right Faucet

    • Customer Reviews

    5.0

    Rated 5 out of 5 stars

    1 Customer Reviews

    1 reviews rated this 5 out of 5 stars.

    0 reviews rated this 4 out of 5 stars.

    0 reviews rated this 3 out of 5 stars.

    0 reviews rated this 2 out of 5 stars.

    0 reviews rated this 1 out of 5 stars.

    Frequently Mentioned

    • faucet
    • functional
    • installed
    • made
    • materials
    • prerinse
    • recommend
    • spray
    • years
    Rated 5 out of 5 stars
    Rated 5 out of 5 stars
    Review by

    Jereme S.

    Posted on 05/21/2020

    Verified Purchase

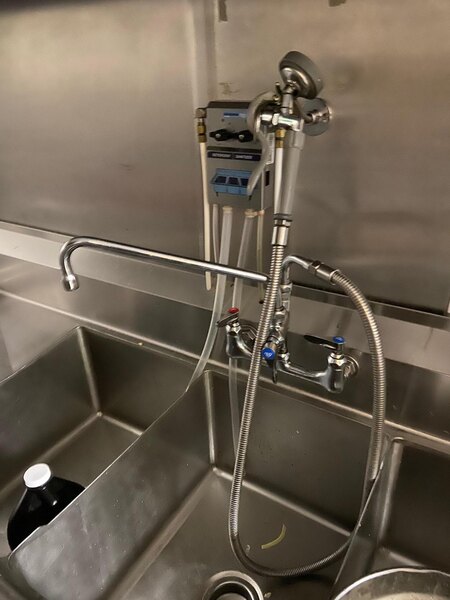

    I would highly recommend this pre-rinse faucet and spray. They are very functional and made of good materials. We have had it installed for a few years now and still no leaks.

    1 out of 1 found this review helpful

    Customer Photos & Videos
