- Add-On Faucet Length:
- 16"
This sprayer is powerful enough to get the dishes clean so the soap is basically just sanitizing. I just wish the hose was a little long for my deep sinks.
T&S B-0133-ADF14-B EasyInstall Wall Mounted 37 1/2" High Pre-Rinse Faucet with Adjustable 8" Centers, 44" Hose, 14" Add-On Faucet, and 6" Wall Bracket
Item number 510b133af14bMFR number B-0133-ADF14-B
Works With
Ships free withLearn More
Free Shipping
$561.82/Each
Login or enter your email to be instantly sent the price!
Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Apply, opens link in this tabEarn up to $16.85 back (1,685 points)
(1,685 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- 44" flex hose with spring for pre-rinse applications
- 1.15 GPM spray valve with ergonomic squeeze handle
- 14" add-on swing faucet for added versatility
- Adjustable 8" centers with 1/2" NPT female inlets
- Eterna compression cartridges with solid brass spindle for durability
UPC Code:671262632621
Works With
- Quantity
- 1/Each
- Shipping Weight
- 13.9 lb.
- Hose Length
- 44 Inches
- Faucet Width
- 12 5/8 Inches
- Faucet Height
- 37 5/8 Inches
- Add-On Faucet
- 14 Inches
- Add-on Flow Rate
- 24 GPM
- Add-On Type
- Swing
- Cartridge Type
- Compression
- Faucet Centers
- 8 Inches
- Features
- Made in America
- Finish
- Chrome
- Handle Type
- Lever
- Material
- Brass
- Mounting Style
- Wall Mounted
- Mounting Type
- Adjustable
- Plug Type
- NEMA L6-30P
- Pre Rinse Unit Type
- Hose and Spring
- Pressure Rating
- 125 PSI
- Spray Valve Flow Rate
- 1.15 GPM
- Temperature Rating
- 40 - 140 Degrees F
- Type
- Pre-Rinse Units
- Water Inlet Size
- 1/2 Inches
T&S Brass and Bronze Works B-0133-ADF14-B Details

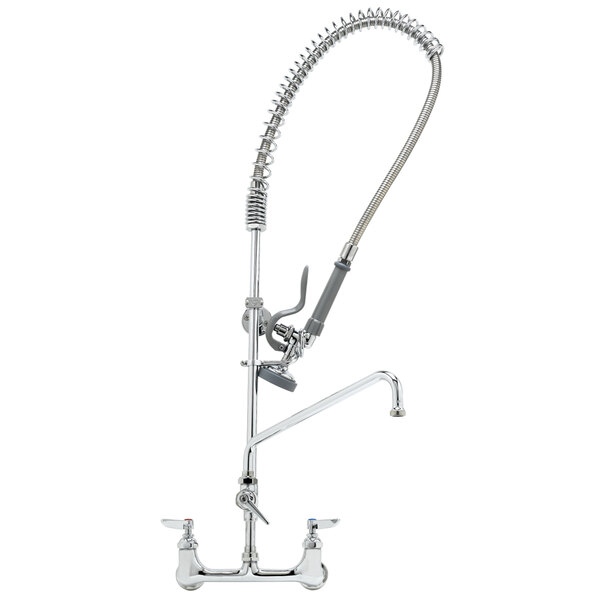

This T&S B-0133-ADF14-B wall mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. Additionally, a 14" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! Designed specifically to make installation as fast and hassle-free as possible, this EasyInstall faucet also comes with 1/2" NPT female inlets on 8" adjustable centers.
This faucet includes lever handles with color-coded indexes to ensure easy operation. The Eterna compression cartridges boast a solid brass spindle and body for long-lasting use, and spring checks are included. This model features a durable chrome-plated brass construction, and a wall bracket is included for added support.
Overall Dimensions:
Faucet Height: 37 5/8"
Faucet Width: 12 5/8"
Add-On Faucet: 14"
Attention CA Residents:
Made in America
This item was made in the United States of America.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Can I get a spray valve with a higher flow rate (GPM)?
The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
How do I use a wall bracket to stabilize a pre-rinse faucet?
Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.
If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.
If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
How is the pre-rinse hose length measured?
Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.
I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?
Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
What measurements do I need to install a faucet?
When installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Need Parts & Accessories?
Show replacement parts and accessories for T&S Brass and Bronze Works B-0133-ADF14-B today!
Resources and Downloads for T&S Brass and Bronze Works B-0133-ADF14-B
Specsheet
Opens in new tab
Warranty
Opens in new tab
Sales Sheet
Opens in new tab
Repair Guide
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
