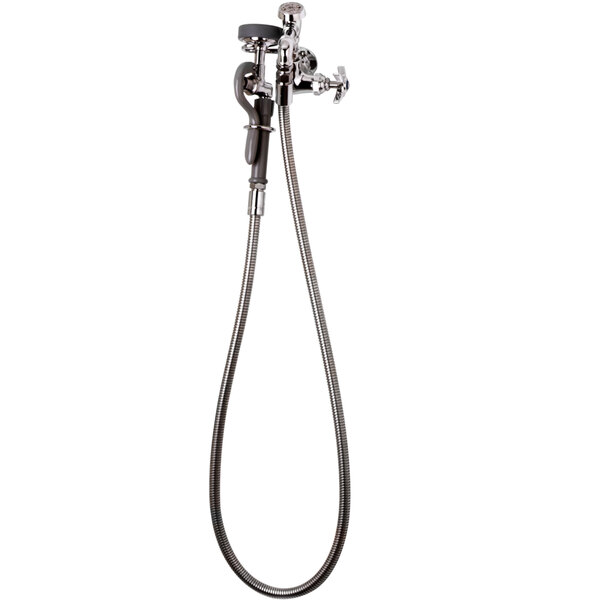

Name: T&S B-0169 Wall Mounted Pre-Rinse Faucet with Single Inlet Angled Spray Valve, 4-Arm Handle, 68" Hose, and Vacuum Breaker
Brand: T&S Brass and Bronze Works
SKU: 510B0169
Availability: InStock

Item number 510b0169MFR number B-0169

Video is loading

Ships free with

Free Shipping

$375.37/Each

Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST

Earn up to $11.26 back (1,126 points)
(1,126 points) with a Webstaurant Rewards Visa® Credit Card
Apply, opens link in this tab

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

Single hole base with 2" flange; 1/2" NPT female inlet
68" flex hose; 1.15 GPM B-0107-035 spray valve
4-arm handle with color coded index
Eterna compression cartridge with spring check; can withstand water temperatures up to 140 degrees
Includes vacuum breaker

UPC Code:671262001465

View All Products From T&S Brass and Bronze Works

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

Easyflex White PTFE Thread Seal Tape 1/2" x 520"
$2.49/Each
Add to Cart

Quantity: 1/Each
Shipping Weight: 7.6 lb.
Hose Length: 68 Inches
Faucet Width: 3 1/4 Inches
Faucet Height: 5 1/8 Inches
Add-On Faucet: None
Cartridge Type: Compression
Faucet Centers: Single
Features: Made in America Vacuum Breaker
Finish: Chrome
Handle Type: 4 Arm
Material: Brass
Mounting Style: Wall Mounted
Plug Type: NEMA L6-30P
Pre Rinse Unit Type: No Riser
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.15 GPM
Spray Valve Style: Angled
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works B-0169 Details

This T&S B-0169 wall mounted pre-rinse faucet features a 68" flex hose that gives you maximum flexibility and reach for a variety of tasks! A 1.15 GPM spray valve delivers water right where you need, and an ergonomic squeeze handle allows easy and intuitive use. To make installation easy, this faucet also comes with a single 1/2" NPT inlet.

This faucet features a 4-arm handle with a color-coded index for easy operation. The Eterna compression cartridge provides excellent durability, with a solid brass spindle and body, and a spring check is included. A vacuum breaker is included to help prevent backflow. This model features a durable chrome-plated brass construction.

Overall Dimensions:
Faucet Height: 5 1/8"

Attention CA Residents:

Made in America
This item was made in the United States of America.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
