$224.99/Each

Ships free with Plus
Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $6.75 back (675 points)with a Webstaurant Rewards Visa® Credit Card

Wish List
Rapid Reorder

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Single hole base with 2 1/4" flange; 1/2" BSPP male inlet flex hoses
  • 44" flex hose; 1.15 GPM 5SV Equip spray valve
  • Lever handles with color coded screws
  • Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
  • Includes 6" wall bracket; 34 1/4" overall height
UPC Code:671262565707
View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

T&S Brass and Bronze Works 5PR-2S00 Specs

Quantity
1/Each
Shipping Weight
10.83 lb.
Hose Length
44 Inches
Faucet Width
5 5/8 Inches
Faucet Height
34 1/4 Inches
Add-On Faucet
None
Cartridge Type
Ceramic
Faucet Centers
Single
Features
Flex Inlets Included
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Pre Rinse Unit Type
Hose and Spring
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works 5PR-2S00 Details

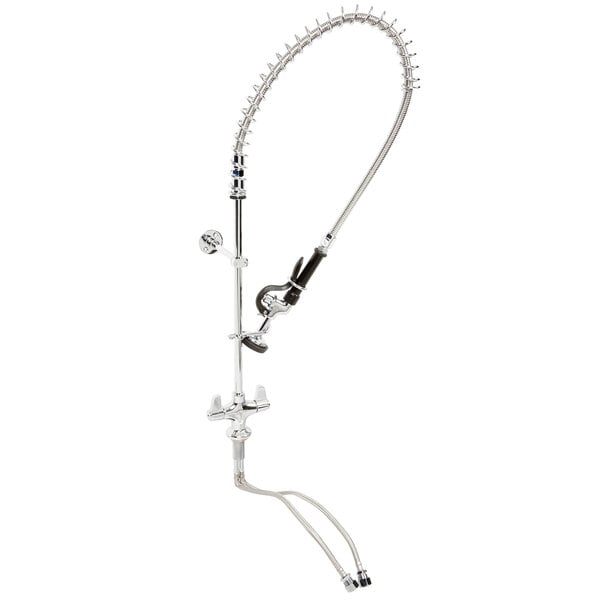

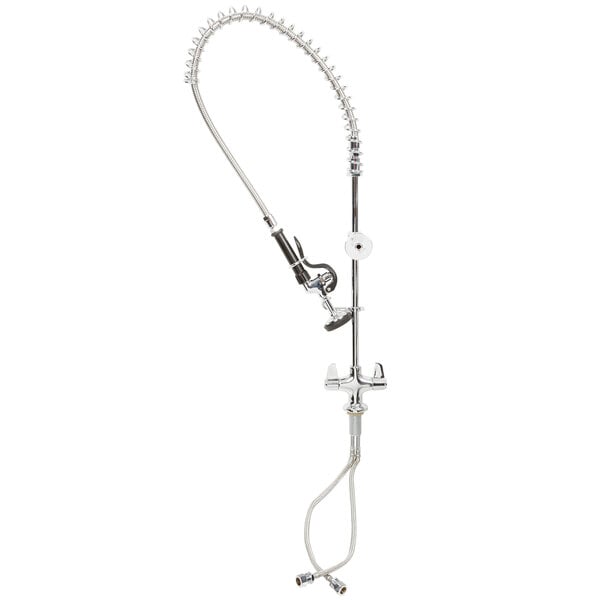

This Equip by T&S 5PR-2S00 deck mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. To make installation easy, it also boasts in-line check valves and 1/2" BSPP male inlets on 18" flexible connector hoses.

The 44" flex hose with spring is great for many pre-rinse applications, and the lever handles have a color coded screw for durability and easy operation. The ceramic cartridges provide excellent durability and leak-resistance since there are no seat washers. This unit also includes a wall bracket for added support.

Overall Dimensions:
Faucet Height: 34 1/4"
Faucet Width: 5 5/8"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
Ask your own question!
  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
