Product Overview

  • High efficiency boilerless steam control system with tubular heating elements
  • Auto-fill design; electronic level sensing and overfill sensor with shutoff
  • (3) 12" x 20" x 2 1/2" size pan capacity; operator-friendly manual controls
  • Stainless steel exterior with a stainless steel cooking compartment
  • Field converted to 208V, 1 phase, 8 kW
UPC Code:400013823939

Vulcan C24EO3AF-1100 208/1 Specs

Shipping Weight
145 lb.
24 Inches
33 Inches
19 1/2 Inches
1 Phase
208 Volts
8 Kilowatts
Energy Star Qualified

Made in America
Stainless Steel
Pan Capacity
3 Pans
Plug Type
Power Type
Steam Source
Convection Steamers
Water Inlet Size
3/4 Inches

Customer questions about this product

I see that this electrical unit is "field-convertible." What does that mean?

Electrical equipment is factory-set to use a specific voltage and phase for power. Field-convertible equipment allows your unit to accept another voltage or phase type, but this conversion must happen before it is used. For more information on which voltage and phase configurations are possible, check the item content and literature.

For safety reasons, we recommend having a qualified service professional perform the conversion. Your equipment’s warranty may require that such conversions be done by a professional, and failure to do so may void warranty coverage.

Is this cooking equipment available in all 50 states?

Due to energy regulations this cooking equipment is not available in all 50 states.

Why is a water filter automatically added to my cart with this item?

The use of poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality and a compatible water filter will be included when you add this piece of equipment to your cart. You may remove the filter from the cart prior to purchase.

Ask your own question!

Vulcan C24EO3AF-1100 208/1 Details

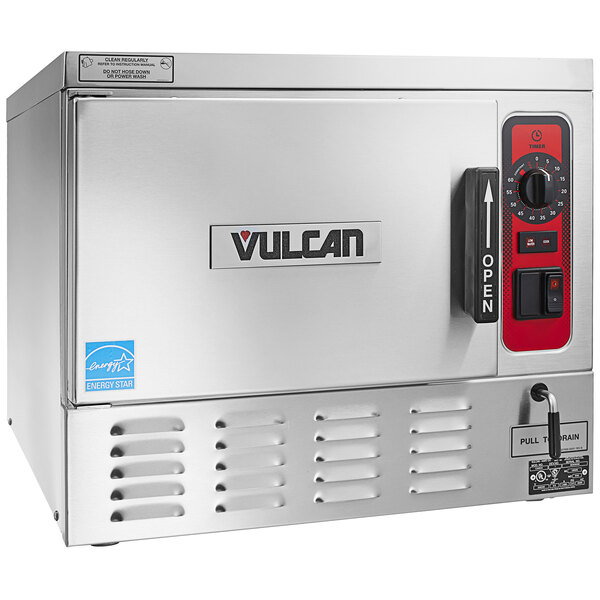

Ideal for commercial kitchens, healthcare facilities, school cafeterias, and other institutions, this Vulcan C24EO3AF-1100 boilerless electric countertop steamer has a 3 pan capacity and is packed with benefits to ease your cooking experience! It features a boilerless design to eliminate the need to maintain a boiler.

This steamer also has auto-fill, which trickle fills the unit with water to accelerate startup and help maintain continuous steam production. Plus, the electronic level sensing has no moving parts to reduce wear and it also features an overfill sensor with a water shutoff and buzzer to prevent overflow.

To ensure efficiency, solid sheathed tubular elements feature thermal heat transfer that provides even heat distribution around your products. The institutional-grade manual controls are incredibly user-friendly, so even your newest employee will have no trouble operating the steamer. Aside from the three-position control switch, the unit includes a 60 minute timer, constant steam feature, and low water indicator with an audible signal for convenience.

This unit has a heavy-duty door with a positive close latch and an automatic pan aligner to ensure safe, efficient operation. For long lasting durability and performance, this unit is made entirely of stainless steel. A 208V, 1 phase, 8 kW electrical connection is required for operation.

Note: This unit ships configured for a 208V, 3 phase electrical connection and can be field converted to 208V, 1 phase by a service technician.

Overall Dimensions:
Width: 24"
Depth: 33"
Height: 19 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • UL C_Classified_US

    UL C_Classified_US

    This item has been evaluated by the Underwriters Laboratories (UL) to meet specific properties and a limited range of hazards for product safety.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

Resources and Downloads for
Vulcan C24EO3AF-1100 208/1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
