$9911.00/Each

This product is no longer available. We've left this page up for reference only.

  • 20 gallon capacity
  • Closed steam system doesn't require a steam connection or water line
  • 90 degree tilting design makes it easy to empty the kettle's contents
  • 2/3 steam jacketed design for faster heat-up and cook times
  • 304 stainless steel exterior construction; 316 stainless steel interior cooking surface
  • Hemispherical kettle design for superior heat circulation
  • 240V, 1 Phase, 12 kW
  • Safety valve, low water light, and low water shut off
Blodgett KTT-20E240/1 Specs
Width 31 Inches
Depth 24 1/4 Inches
Height 36 5/8 Inches
Amps 50 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 240 Volts
Wattage 12 Kilowatts
Capacity 20 Gallons
Capacity per Compartment 20 Gallons
Installation Type Floor Model
Kettle Jacket Partial
Made in America Yes
NSF Listed Yes
Power Type Electric
Style Tilting
Temperature Range 165 - 285 Degrees F
Type Single Kettle

Blodgett KTT-20E240/1 Details

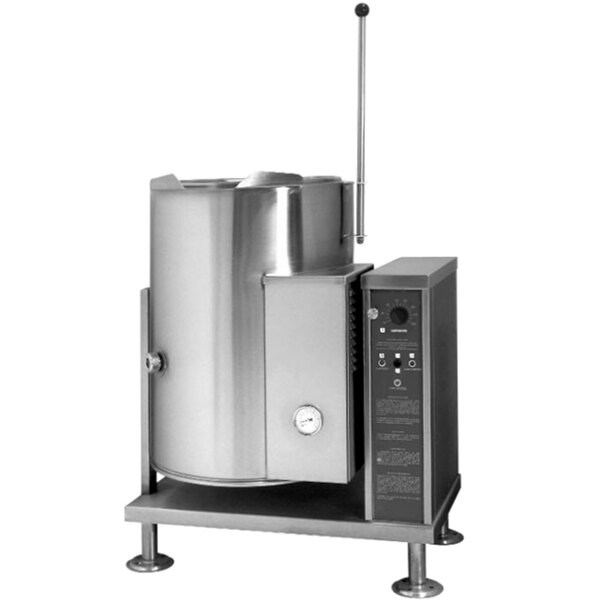

Increase your production capabilities while saving energy and labor with this Blodgett KTT-20E 20 gallon tilting quad-leg electric steam jacketed kettle. Designed with a closed, self-contained steam system, this unit only requires an electrical connection rather than a direct steam line or a water line. Its large 20 gallon capacity allows you to prepare large batches of your signature soups, stews, or pasta without the hassle of ranges or stock pots.

This unit has manual controls that let you precisely control the temperature between 165 and 285 degrees Fahrenheit, and thanks to its 2/3 jacketed design this kettle has 1-2 times more heat transfer surface area than a traditional stock pot. This means you'll have faster heat-up and cook times, which increases overall efficiency and production. Other features that help keep your kitchen running smoothly include the thermostat, cook indicator light, pressure gauge, and power switch.

This kettle is manufactured with a type 304 stainless steel exterior and a type 316 stainless steel interior cooking surface that are highly stain- and corrosion-resistant. This allows much easier cleaning and maintenance of the cooking and exterior surfaces. The Clean Lock control setting holds the kettle in cooking position or at 105 degrees during cleaning. Plus, the elements are removable to simplify maintenance.

With more even heating, there is less need for frequent stirring or "pot watching." The hemispherical bottom ensures superior heat circulation, which helps keep the heat inside the kettle and prevents energy from being lost to the surrounding kitchen area.

The tilting mechanism allows this unit to tilt forward past 90 degrees so that you can empty the contents with ease. The tilt handle is removable and the heat proof knob helps prevent employee injuries. Additional safety features include a safety valve, low water light, and a low water shut-off that prevents use if the sealed kettle jacket loses water.

This kettle is equipped with four stainless steel legs and adjustable flanged feet that allow it to be secured safely to the floor. It requires a 240V, 1 phase electrical connection.

Overall Dimensions:
Left to Right: 31"
Front to Back: 24 1/4"
Height: 36 5/8"
Capacity: 20 gallons

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CSA_C_US

    CSA_C_US

    This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.

  • ASME U Stamp

    ASME U Stamp

    This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.
