Product Overview
- 1 self-closing door with 1 shelf for product storage
- Fits flush alongside standard countertops to help maximize storage space
- Stainless steel exterior and interior for excellent, corrosion-resistant durability
- Maintains temperatures between -5 and 0 degrees Fahrenheit; uses F-513a refrigerant
- Foamed-in-place polyurethane insulation and 2" thick walls promote temperature retention
- Front-breathing design eliminates need for side and back clearance
- Includes 6" high casters for easy mobility
- 115V; 1/3 hp
- Quantity
- 1/Each
- Shipping Weight
- 195 lb.
- Width
- 27 1/2 Inches
- Depth
- 30 Inches
- Height
- 36 Inches
- Amps
- 4.7 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Doors
- Capacity
- 7.2 cu. ft.
- Compressor Location
- Rear Mounted
- Compressor Style
- Front Breathing
- Door Style
- Swing
- Door Type
- Solid
- Features
- Made in America
- Hinge Location
- Right
- Horsepower
- 1/3 HP
- Number of Doors
- 1 Door
- Number of Shelves
- 1 Shelf
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-513a
- Style
- Counter Height
- Temperature Range
- -5 - 0 Degrees F
Customer questions about this product
- How do I know if this unit will fit under or match the height of my ADA-Height counter?
- Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
- I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
- R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Master-Bilt MBUF27 Details

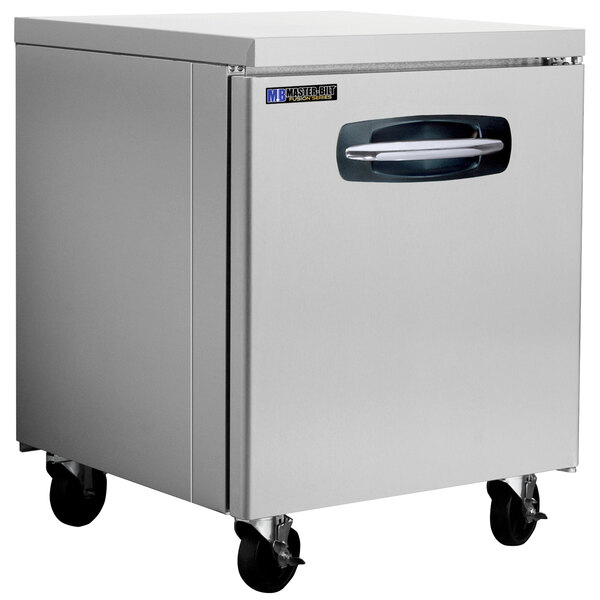

Maximize your back-of-house workspace by adding this Master-Bilt MBUF27A 28" Fusion undercounter freezer! Designed to be counter-height, the unit provides convenient, refrigerated storage space great for ingredients, beverages, and prepared dishes. Its single self-closing door opens to a heavy-duty shelf that adjusts to give you storage flexibility to accomodate your ever-evolving needs.
To withstand the demanding commercial kitchen environment, this unit is built with a stainless steel exterior and interior. An interior that's stainless steel won't corrode from the inevitable spill or leak, which helps prevent damage to the unit during use.
A number of features are built into the cabinet to ensure that the interior temperature remains between -5 and 0 degrees Fahrenheit at all times. Not only does the 1/3 hp refrigeration system circulate R-513a refrigerant, but foamed-in-place polyurethane insulation and 2" thick walls help promote temperature retention and add structural rigidity to the overall unit.
With a front-breathing design, this undercounter freezer eliminates the need for side and back clearance during the installation process. This gives the unit installation flexibility, allowing it to operate in more locations than units that require clearance. Plus, since it includes 6" high casters, the freezer is easy to move as needed, whether for cleaning or for service. A 115V electrical connection is required for operation.
Overall Dimensions:
Width: 27 1/2"
Depth: 30"
Height: 36"
Capacity: 7.2 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
UL Classified EPH
This product complies with UL EPH standards and meets ANSI/NSF requirements.
5-15P
This unit comes with a NEMA 5-15P plug.
Resources and Downloads for
Master-Bilt MBUF27
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
