$2,626.00/Each
Contact us for details
Ships free with PlusCall 717-392-7472(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)
Earn up to $78.78 back (7,878 points)with a Webstaurant Rewards Visa® Credit Card
Other Available Types:
Installation Services
Check if installation is currently available for your area.
Usually Ships in 4 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Stainless steel front, sides, top, and door, corrosion resistant aluminum interior
- Stay-open door with self-closing feature and magnetic gaskets for a secure seal
- Removable door simplifies cleaning and service and is field-reversible
- Full electronic control with an automatic defrost for easy operation and maintenance
- Uses eco-friendly R290 refrigerant; 115V, 1/4 hp
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 182 lb.
- Width
- 24 Inches
- Depth
- 32 Inches
- Height
- 31 5/8 Inches
- Interior Width
- 20 Inches
- Interior Depth
- 23 1/2 Inches
- Interior Height
- 23 Inches
- Amps
- 2.5 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Doors
- Capacity
- 5.16 cu. ft.
- Compressor Location
- Rear Mounted
- Compressor Style
- Side / Rear Breathing
- Door Style
- Swing
- Door Type
- Solid
- Features
- Energy Star Qualified Made in America Self-Closing Doors
- Freezer Temperature
- 0
- Hinge Location
- Right
- Horsepower
- 1/4 HP
- Number of Doors
- 1 Door
- Number of Shelves
- 2 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Style
- Low Profile
- Type
- Freezers Undercounter Freezers
Customer questions about this product
Does Beverage-Air warrant this item for use in a food truck?
This item is covered under Beverage-Air's warranty contingent upon the unit being kept in a controlled climate. This means that the interior of the food truck may not be susceptible to extreme high or low temperatures. If warranty service is required, the truck must be able to sit stationary for 24-48 hours to allow for a technician to service the equipment.
How do I know if this unit will fit under or match the height of my ADA-height counter?
Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
What does the “H” or “HC” mean in the newer Beverage-Air model numbers?
This is a representation that the unit is using a “Hydrocarbon” refrigerant. This would include both R290 and R600a refrigerants. They are being used as an eco-friendly refrigerant by Beverage-Air in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Why is there a step in the interior of this undercounter unit?
This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.

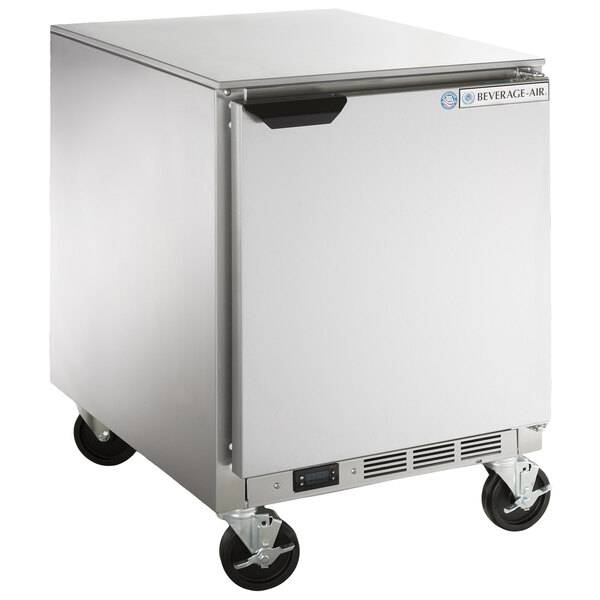

Beverage-Air UCF24AHC-23 Details
This Beverage-Air UCF24AHC-23 24" low profile undercounter freezer is a great solution when you need to increase the usable frozen storage capacity in your kitchen! With a stainless steel front, sides, top, and door design, this unit can stand up to the rigors of even fast-paced kitchens, and since the interior liner is made from aluminum, you won't need to worry about rust and corrosion compromising the safety of the food you serve.
A self-closing door design reduces temperature loss, while the magnetic gasket creates a positive seal to keep cold air in and warm air out. This unit features field reversible doors to make adjusting this unit to your workflow easier. The cartridge style hinges eliminate door sagging and are great for withstanding weight when product is being loaded and unloaded.

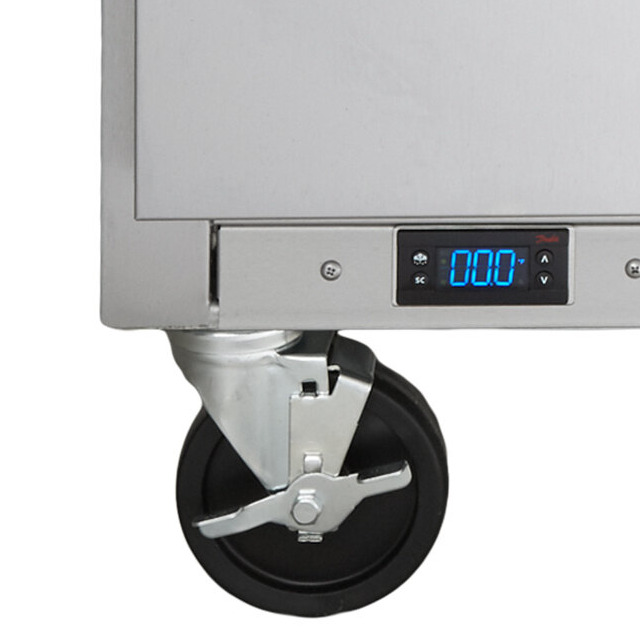

The interior of this unit comes with 2 epoxy-coated shelves to accommodate any storage need and to give you the flexibility to meet changing menu needs. And with CFC and HCFC-free cabinet insulation, it provides superior energy efficiency and temperature retention, too. This unit also runs on eco-friendly R-290 refrigerant, which has an ozone depletion (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. Thanks to a full electronic control you can also keep better track of the cabinet temperature and make sure it is at 0 degrees Fahrenheit or below for optimum food safety. A set of 3" casters (2 with brakes) makes it easy to move the unit for cleaning and maintenance. It also lowers the overall height of the unit, making it great for low counters and other areas with limited space. This model requires a 115V electrical connection.
Overall Dimensions:
Width: 24"
Depth: 32"
Height: 31 5/8"
Capacity: 5.16 cu. ft.
Interior Dimensions:
Width: 20"
Depth: 23 1/2"
Depth (Usable): upper 18 1/2"
Depth (Usable): lower 15 3/8"
Height: 23"
Height (Usable): 16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Made in America
This item was made in the United States of America.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
UL Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Resources and Downloads for
Beverage-Air UCF24AHC-23
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Note: Beverage Air equipment purchased in 2013 or later will have a 3 year parts and labor warranty. Equipment purchased prior to 2013 will have a 1 year parts and labor warranty. RESIDENTIAL USERS: Your warranty will be voided if installed in non-commercial or residential applications.
