$5,272.00/Each

Contact us for details

Ships free with Plus

Call 717-392-7472(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)

Why do we do this?

Due to a manufacturer's price increase, this price will increase by 3.00% on 01/01/25

Earn up to $158.16 back (15,816 points)with a Webstaurant Rewards Visa® Credit Card

Hinging: Left Hinged

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Includes 1 UCF27AHC-24-23 freezer, 1 UCR27AHC-24-23 refrigerator, and a stacking collar
  • Stainless steel front, sides, top, and doors with a corrosion-resistant aluminum interior
  • Full mechanical control and cartridge style hinges with 120 degree stay-open feature
  • Compact design; left hinged doors to meet the specific needs of your space
  • 115V, 1/4 hp freezer; 115V, 1/6 hp refrigerator; both use eco-friendly R-290 refrigerant
UPC Code:400013640383

Beverage-Air UCR27AHC-24-23+00C32-012A+UCF27AHC-24-23 Specs

Quantity
1/Each
Shipping Weight
348 lb.
Width
27 Inches
Depth
32 Inches
Height
60 1/4 Inches
Interior Width
23 Inches
Interior Height
16 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Amps - Freezer
2.5
Amps - Refrigerator
2
Backsplash
Without Backsplash
Capacity
12.26 cu. ft.
Compressor Location
Bottom Mounted
Door Style
Swing
Door Type
Solid
Features
Dual Temperature  Made in America
Horsepower - Freezer
1/4 HP
Horsepower - Refrigerator
1/6 HP
Number of Doors
2 Doors
Number of Shelves
4 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Style
Stacked Kits
Temperature Range - Refrigerator
36 - 38 Degrees F
Type
Freezers  Refrigerators  Undercounter Freezers  Undercounter Refrigerators

Beverage-Air UCR27AHC-24-23+00C32-012A+UCF27AHC-24-23 Details

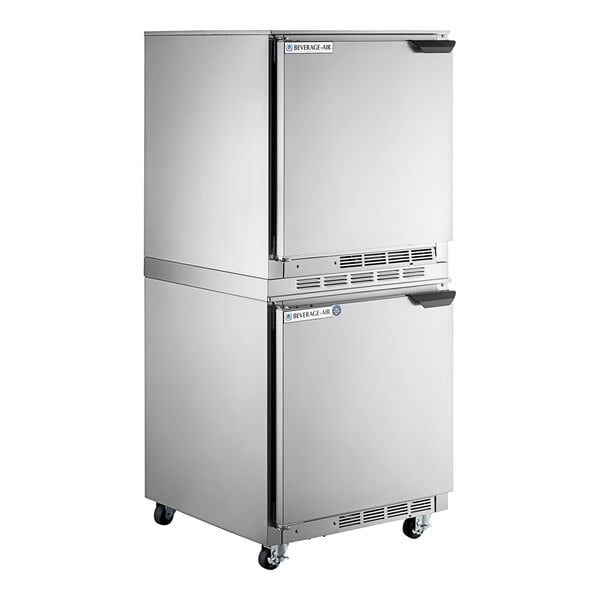

Dealing with limited space can make things hectic in a high-traffic commercial kitchen, so maximize your real estate with this shallow depth Beverage-Air UCF27AHC-24-23/UCR27AHC-24-23 double stacked 27" undercounter freezer and refrigerator combination with left-hinged doors! This set includes 1 undercounter freezer, 1 undercounter refrigerator, and a stacking collar for double stack installation.

Made with a durable, heavy-duty stainless steel exterior and aluminum interior, each unit in this set is durable enough to stand up to frequent use in your commercial kitchen. Each cabinet has a self-closing, left-hinged door that helps to reduce temperature loss, and a stay-open feature for high-volume loading and unloading. The cartridge-style hinges also help to eliminate sagging to ensure a great seal for years to come. Each door can be easily removed for cleaning or maintenance.

The undercounter freezer consistently maintains temperatures below 0 degrees Fahrenheit thanks to 2" thick polyurethane insulation and its 1/4 hp compressor. Thanks to its 1/6 hp compressor, the undercounter refrigerator's refrigeration system provides high humidity storage, while maintaining temperatures between 36 and 38 degrees Fahrenheit. Both refrigeration systems use eco-friendly R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

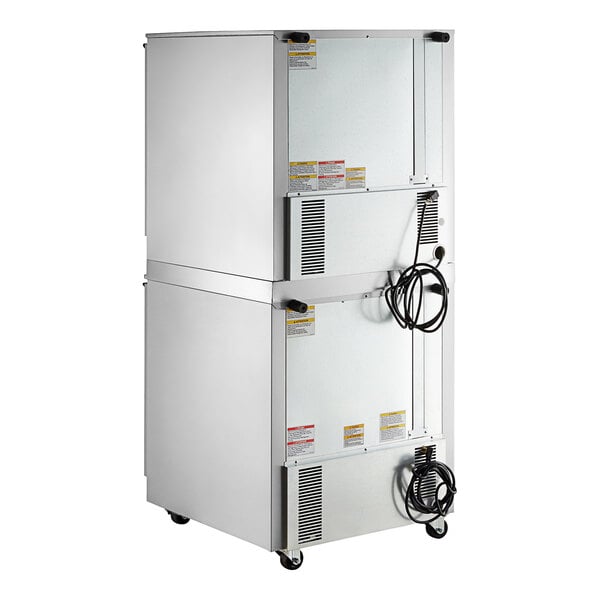

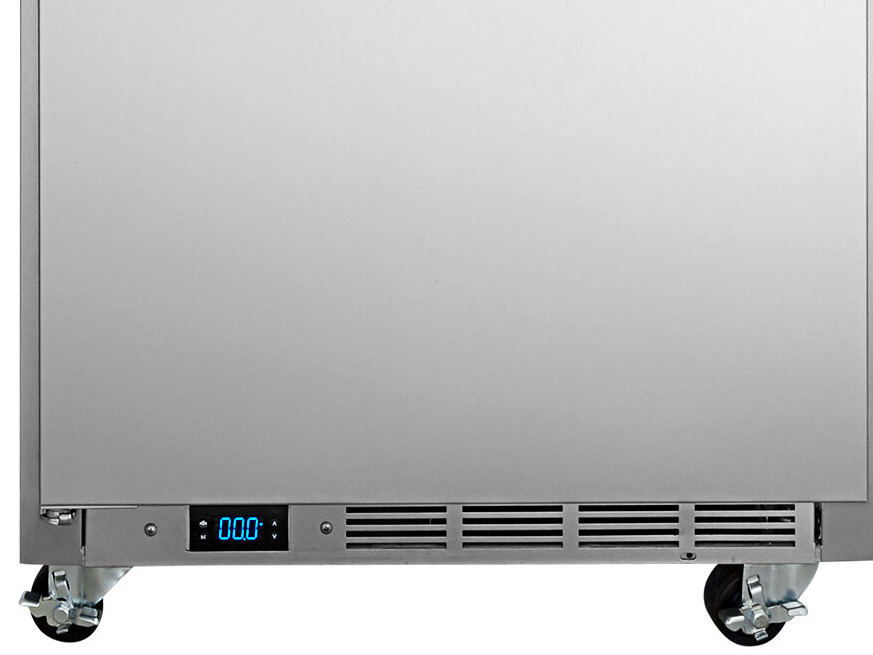

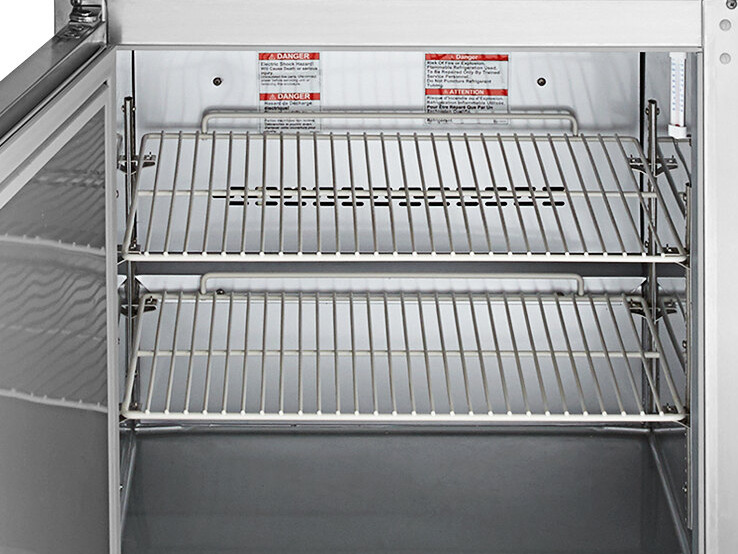

Two adjustable, epoxy-coated, wire shelves are also included with each of the cabinets so that your products can be well-organized to promote shorter open-door times. It also comes with 3" casters, 2 with brakes, making it easy to move the unit for cleaning and maintenance. Each unit requires a 115V electrical connection for operation and comes with an 8' cord and plug set.

Freezer Overall Dimensions:
Width: 27"
Depth: 32"
Height (with casters): 31 5/8"
Capacity: 6.13 cu. ft.

Freezer Interior Dimensions:
Width: 23"
Depth: 23 1/2"
Depth (usable): upper, 18 1/2"; lower, 15 1/2"
Height: 23"
Height (usable): 16"

Refrigerator Overall Dimensions:
Width: 27"
Depth: 32"
Height (with casters): 31 5/8"
Capacity: 6.13 cu. ft.

Refrigerator Interior Dimensions:
Width: 23"
Depth: 23 1/2"
Depth (usable): upper, 18 1/2"; lower, 15 1/2"
Height: 23"
Height (usable): 16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Does Beverage-Air warrant this item for use in a food truck?

This item is covered under Beverage-Air's warranty contingent upon the unit being kept in a controlled climate. This means that the interior of the food truck may not be susceptible to extreme high or low temperatures. If warranty service is required, the truck must be able to sit stationary for 24-48 hours to allow for a technician to service the equipment.

How do I know if this unit will fit under or match the height of my ADA-height counter?

Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:

Counter Height: Work surface is more than 34" high; standard-height unit.

ADA Height: Work surface height is 34" or less; complies with ADA regulations.

Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.

If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • UL Sanitation

    UL Sanitation

    This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Need Parts & Accessories?

Show replacement parts and accessories for Beverage-Air UCR27AHC-24-23+00C32-012A+UCF27AHC-24-23 today!

Resources and Downloads for
Beverage-Air UCR27AHC-24-23+00C32-012A+UCF27AHC-24-23

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Please refer to the warranty document linked to this item for Beverage Air’s most recent warranty statement. RESIDENTIAL USERS: Your warranty will be voided if installed in non-commercial or residential applications.
