$8,151.00/Each

This product is no longer available. We've left this page up for reference only.

Product Overview

  • 6 gallon capacity; countertop design won't take up floor space
  • Closed steam system doesn't require a steam or water connection
  • 90 degree tilting design; hand crank tilt mechanism with positive stop
  • 2/3 steam jacketed design for faster heat-up and cook times
  • 304 stainless steel exterior construction; 316 stainless steel interior cooking surface
  • Hemispherical kettle design for superior heat circulation
  • 208V, 3 Phase, 7.5 kW
  • Safety valve, low water light, and low water shut off
UPC Code:400011981884
Shipping:Usually Ships in 2-4 Weeks

Blodgett KTG-6E208/3 Specs

Quantity
1/Each
Shipping Weight
155 lb.
Width
25 1/8 Inches
Depth
15 1/4 Inches
Height
25 Inches
Amps
20.8 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 Volts
Wattage
7.5 Kilowatts
Capacity
6 Gallons
Capacity per Compartment
6 Gallons
Features
Made in America

NSF Listed
Installation Type
Countertop
Kettle Jacket
Partial
Plug Type
Hardwire
Power Type
Electric
Style
Tilting
Temperature Range
165 - 290 Degrees F
Type
Single Kettle

Blodgett KTG-6E208/3 Details

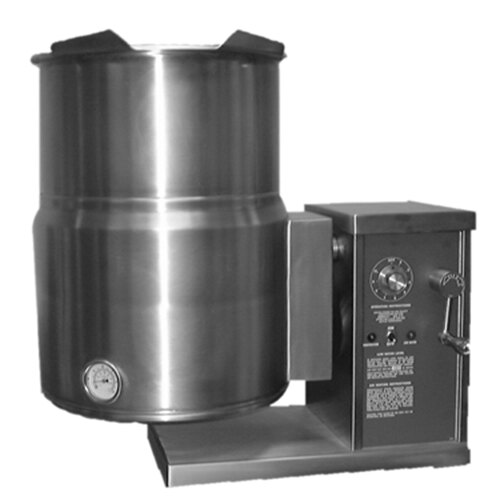

Increase your production capabilities while saving energy and labor with this Blodgett KTG-6E 6 gallon countertop tilting electric steam jacketed kettle with a hand crank tilt mechanism. The tilting mechanism allows this unit to tilt forward 90 degrees so that you can empty the contents with ease. Since this kettle uses a gear box with a hand crank, it offers smoother, more controlled tilting than many manual tilt countertop steam kettles. Plus, the mechanism is self-locking and has a positive stop action so that it can hold any position.

Designed with a closed, self-contained steam system, this unit only requires an electrical connection rather than a direct steam line or a water line. Its 6 gallon capacity allows you to prepare large batches of your signature soups, stews, or pasta without the hassle of ranges or stock pots. As a countertop model, this kettle lets you expand your cooking equipment lineup without taking up valuable floor space and it comes with concealed mounting lugs that let you mount it securely to your counter.

This unit has manual controls that let you precisely control the temperature between 165 and 290 degrees Fahrenheit, and thanks to its 2/3 jacketed design this kettle has 1-2 times more heat transfer surface area than a traditional stock pot. This means you'll have faster heat-up and cook times, which increases overall efficiency and production. Other features that help keep your kitchen running smoothly include the thermostat, cook indicator light, pressure gauge, and power switch.

With more even heating, there is less need for frequent stirring or "pot watching." The hemispherical bottom ensures superior heat circulation, which helps keep the heat inside the kettle and prevents energy from being lost to the surrounding kitchen area.

This kettle is manufactured with a type 304 stainless steel exterior and a type 316 stainless steel interior cooking surface that are highly stain- and corrosion-resistant. This allows much easier cleaning and maintenance of the cooking and exterior surfaces. Plus, the elements are removable to simplify maintenance.

Safety features include a safety valve, low water light, and a low water shut-off that prevents use if the sealed kettle jacket loses water. It requires a 208V, 3 phase electrical connection.

Overall Dimensions:
Left to Right: 25 1/8"
Front to Back: 15 1/4"
Height: 25"
Capacity: 6 gallons

  • CSA_C_US

    CSA_C_US

    This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ASME U Stamp

    ASME U Stamp

    This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Resources and Downloads for
Blodgett KTG-6E208/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
