Product Overview
- 3 door design for straight or corner applications
- Extended height for larger items
- Uses only 1.09 gallons of water per cycle
- Cleans up to 40 racks per hour
- 115V
Works With
View All Items
$114.49/Case
$18.49/Each
$18.49/Each
$84.99/Case
$116.99/Case
$41.99/Case
$139.99/Each
$38.49/Each
- Quantity
- 1/Each
- Shipping Weight
- 273 lb.
- Width
- 25 3/4 Inches
- Depth
- 25 3/4 Inches
- Height
- 56 - 57 Inches
- Dishwasher Height
- Standard
- Amps
- 16 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Application
- Dishwashers
- Dishwasher Style
- Straight / Corner
- Features
- Chemical Pumps
Energy Star Qualified
Made in America - High or Low Temp
- Low Temp
- Horsepower
- 1 HP
- Interior Clearance
- 20 1/2 Inches
- Minimum Water Inlet Temperature
- 120 Degrees F (140 Recommended)
- Number of Cycles
- 1 Cycle
- Plug Type
- Hardwire
- Racks Per Hour
- 40
- Type
- Single Rack
- Wash Cycle Time
- 90 Seconds
- Wash Tank Capacity
- 1.09 gal.
- Water Inlet Size
- 1/2 Inches
- Water Temperature
- 120 - 140 Degrees F
- Water Usage
- 1.09 Gallons Per Rack

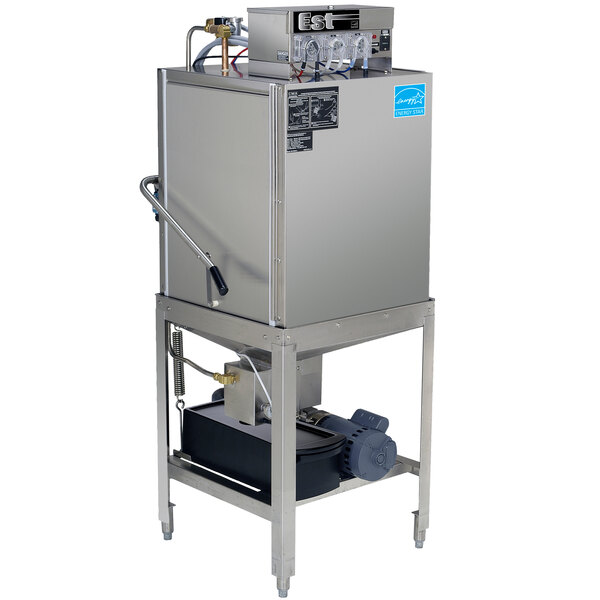

CMA Dishmachines MODEL EST-3-D-EXT Details
Use this CMA EST-3-D-EXT single rack low temperature straight / corner dishwasher to quickly and efficiently clean soiled dishware and glassware! This dish machine features 3 extended height doors to accommodate taller items and all doors open at the same time, allowing you to use it in either a straight or corner application. It can also wash up to 40 racks per hour with only 1.09 gallons of water per cycle, and an auto start / stop feature makes it easy to use! And since it boasts an all stainless steel construction, you can be sure this dish machine will provide years of reliable use.
- 1 hp wash pump motor
- Comes with (2) dish racks
- Integrated scrap tray prevents food soil from entering drain system
- Top mounted control box with built-in chemical pumps and deliming system
- Automatic start / stop for easy use
- Power drain saves space and reduces noise
- Upper and lower stainless steel wash arms
Overall Dimensions:
Width: 25 3/4"
Depth: 25 3/4"
Height: 56" - 57"
Inside Chamber Clearance: 20 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ETL Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
Made in America
This item was made in the United States of America.
1/2" Water Connection
This unit comes with a 1/2" water connection.
