Other Available Voltages:

Installation Services

Check if installation is currently available for your area.  Enter ZIP Code >

Quick Shipping

Usually ships in 1 business dayEstimated shipping time tooltip

Product Overview

  • Cleans up to 55 racks per hour using 0.72 gallons of water per rack
  • Features a large, 27" door opening
  • Sani-Sure technology ensures proper sanitation is achieved in a 60 second cycle
  • 4 selectable wash cycles
  • Auto-fill and auto-start for convenience
  • Multi-cycle timer
  • 208/230V, 3 phase
  • Built in 70 degree rise electric booster heater
Quality Rating:


Shipping Weight
420 lb.
25 1/4 Inches
25 1/4 Inches
76 3/4 Inches
Dishwasher Height
60 Hertz
3 Phase
208/230 Volts
Booster Tank Capacity
3 gal.
Booster Wattage
10.5 Kilowatts
Dishwasher Style
Straight / Corner
Booster Heater Included

Energy Star Qualified

Made in America

NSF Listed
High or Low Temp
High Temp
2 HP
Interior Clearance
27 Inches
Number of Cycles
4 Cycles
Plug Type
Racks Per Hour
Single Rack
Wash Cycle Time
60 Seconds
Wash Tank Capacity
8 gal.
Water Inlet Size
3/4 Inches
Water Temperature
150 - 180 Degrees F
Water Usage
0.72 Gallons Per Rack

Customer questions about this product

Can I convert my dish machine from a straight-through model to a corner unit and vice versa?

Yes, this dish machine is field-convertible so you can switch your unit to best fit your needs. To do this, a false panel is needed (sold separately).

Can sheet pans be washed with this dishwasher?

Yes, sheet pans can be washed using a normal peg rack. We recommend washing no more than 4 sheet pans at a time to ensure proper wash.

Ask your own question!

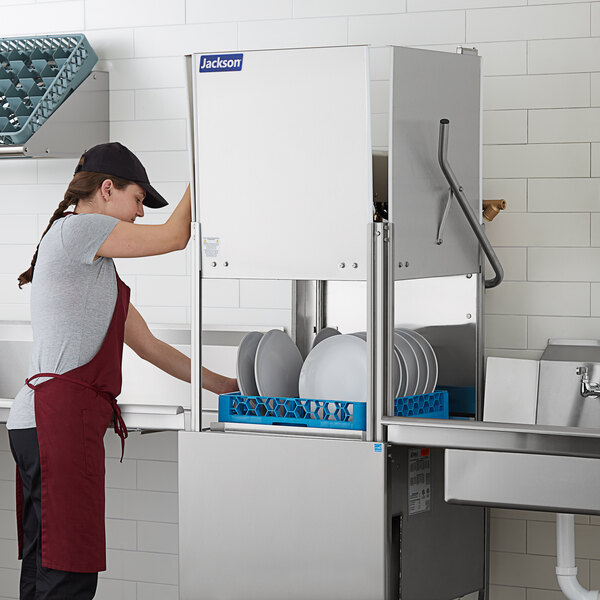

Quickly, easily, and efficiently clean full racks of used dishes with the Jackson TempStar HH-E high temperature door type dish machine! Keeping your dishes and glasses clean is essential to the life of your business, and thanks to this durable unit's 60 second normal washing cycle and 2 hp wash pump, you can successfully clean up to 55 racks per hour using a mere 0.72 gallons of water per rack. This dishwasher features a large, 27" door opening which allows you to wash larger items like full size sheet pans, platters, and 60 qt. mixing bowls! Plus, with its auto-start feature, the washing cycle begins as soon as you close the door.

This high temperature warewashing machine comes with a 70 degree rise booster heater that helps the unit achieve appropriate rinse temperatures, and because it's already built-in, you won't have to worry about any extra electrical requirements. Plus, an exclusive Sani-Sure feature also aids in assuring proper temperatures.

Made with rugged stainless steel, this machine is built to withstand heavy-duty use in a humid, commercial dishroom. Specially designed stainless steel nozzles prevent clogging to provide superb cleaning action. The included delimer switch makes quick work of removing hard water deposits, so your dishes will be left sparkling clean every time.

Other great features of this dish machine include the multi-cycle timer, hi-limit thermostat and low water protection, and a self-draining pump. Its top mounted controls are easy to read and access and it requires a 208/230V, 3 phase electrical connection.

Overall Dimensions:
Width: 25 1/4"
Depth: 25 1/4"
Height: 76 3/4"
Inside Chamber Clearance: 27"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
