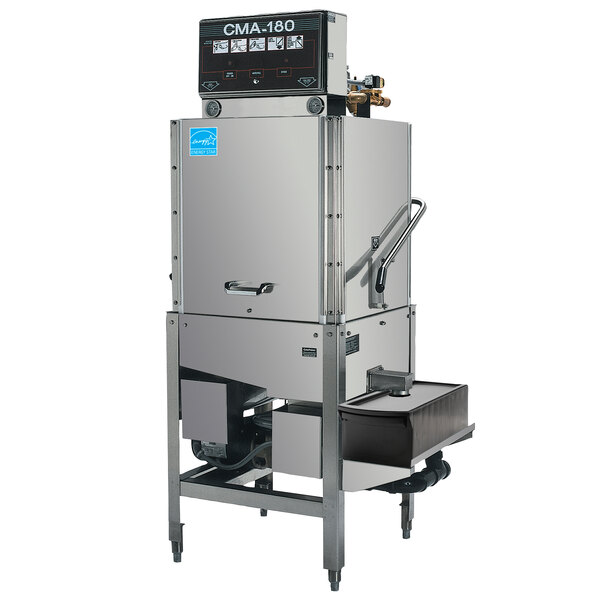

CMA Dishmachines CMA-180SB Single Rack High Temperature Straight Dishwasher with Booster Heater - 208/240V, 1 Phase
Other Available Voltages:
- Uses only .82 gallons of water per cycle
- Cleans up to 60 racks per hour
- Built-in 12 kW, 40 degree rise booster heater
- 1 hp wash pump
- 208/240V, 1 Phase
You May Also Need View All Items
Noble Chemical Acclaim 8 lb. / 128 oz. Solid Dish Machine Detergent - 4/Case
Noble Chemical Force X2 8 lb. / 128 oz. Solid Dish Machine Detergent - 2/Case
Noble Chemical Safe Block 8 lb. / 128 oz. Metal Safe Machine Warewashing Detergent - 4/Case
plus $89.99 /Case
Noble Chemical 8 lb. / 128 oz. Power Block Solid Dish Machine Detergent - 4/Case
Noble Chemical 8 lb. / 128 oz. Power Green Environmentally Friendly Solid Dish Machine Detergent - 4/Case
plus $103.99 /Case
Noble Chemical 1 gallon / 128 oz. Dry It Plus Rinse Aid for High Temperature Dish Machines - 4/Case
plus $103.99 /Case
Noble Chemical 1 gallon / 128 oz. Dry It HD Premium Rinse Aid gallon / Drying Agent - 4/Case
plus $137.99 /Case
Noble Chemical TDS Rinse 1 Gallon / 128 oz. Additive Drying Agent - 4/Case
This video gives an overview on the features of the CMA 180 series dishwashers, with a focus on the CMA-180-VL ventless unit. It also covers some maintenance and usage tips, like how to repair a wash pump!
This video presents step-by-step instructions for installing your CMA 180 series dishwasher, and even goes over additional requirements you will need such as a 2" drain line. Check it out to learn more!
|CMA Dishmachines 180SB W/BOOST 208-2401 Specs|
|Width||25 1/2 Inches|
|Amps||78 - 88 Amps|
|Booster Heater Included||Yes|
|Booster Wattage||12 Kilowatts|
|Energy Star Qualified||Yes|
|High or Low Temp||High Temp|
|Interior Clearance||17 1/2 Inches|
|Made in America||Yes|
|Racks Per Hour||60|
|Wash Cycle Time||58 Seconds|
|Wash Tank Capacity||8 gal.|
|Water Inlet Size||3/4 Inches|
|Water Temperature||155 - 195 Degrees F|
|Water Usage||0.82 Gallons Per Rack|
CMA Dishmachines 180SB W/BOOST 208-2401 Details
The CMA-180SB single rack straight high temperature dishwasher is perfect for both glassware and dishware, and can accommodate products up to 17 1/2" high.
With a 1-minute wash cycle and 1 hp wash pump, the CMA-180SB straight dishwasher can clean up to 60 standard dish racks per hour. The CMA-180SB single rack dishwasher only uses .82 gallons of water per cycle, making it economical to operate and friendly to the environment.
Upper and lower rotating wash and rinse arms provide excellent cleaning. A built-in 12 kW, 40 degree rise booster heater ensures a continuous supply of 180 degree Fahrenheit water during the rinse cycle for effective sanitization.
The CMA-180SB single rack high temperature dishwasher incorporates an automatic soil purging system which traps plate debris in a removable external drawer, keeping the wash water clean.
Other helpful features of the CMA-180SB straight high temperature dishwasher include a water pressure regulator valve and a water tight top mounted control box with a rack counter, extended delimer switch, and easy to read controls. It requires a 208/240V, 1 phase electrical connection.
Width: 25 1/2"
Inside Chamber Clearance: 17 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date,
please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
This product must be hardwired; it does not plug into a standard wall outlet.
3/4" Water Connection
This unit comes with a 3/4" water connection.
