Product Overview

  • Eliminates need for vent hood
  • Uses only 0.89 gallons of water per cycle
  • Cleans up to 40 racks per hour
  • Built-in 12 kW booster heater (40 degrees)
  • 1 hp wash pump
  • 208/240V, 1 Phase
UPC Code:400011120092

CMA Dishmachines CMA-180-VL 208-240/1 Specs

Quantity
1/Each
Shipping Weight
520 lb.
Width
25 1/2 Inches
Depth
29 Inches
Height
86 5/16 Inches
Dishwasher Height
Standard
Amps
78 - 88 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
208/240 Volts
Application
Dishwashers
Booster Wattage
12 Kilowatts
Dishwasher Style
Straight
Features
Booster Heater Included
High or Low Temp
High Temp
Horsepower
1 HP
Interior Clearance
17 1/2 Inches
Minimum Water Inlet Temperature
120 Degrees F (140 Recommended)
Number of Cycles
1 Cycle
Racks Per Hour
40
Type
Single Rack  Ventless
Wash Cycle Time
90 Seconds
Wash Tank Capacity
8 gal.
Water Inlet Size
1/2 Inches
Water Temperature
155 - 195 Degrees F
Water Usage
0.89 Gallons Per Rack

Customer questions about this product

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

Ask your own question!

CMA Dishmachines CMA-180-VL 208-240/1 Details

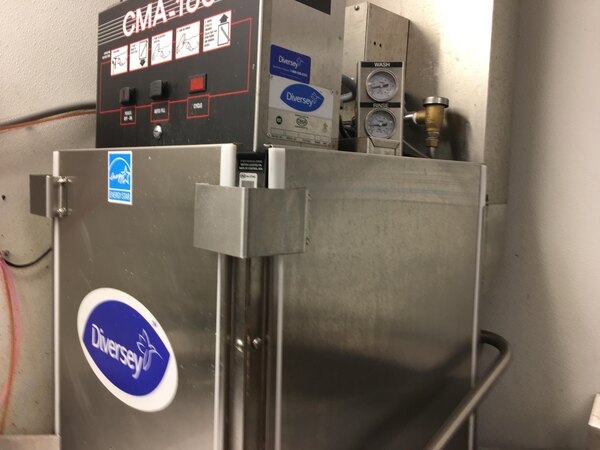

Thanks to its innovative ventless design, this CMA-180-VL single rack high temperature 3-door dishwasher cleans soiled dishware and glassware and saves on energy costs at the same time! This 3-door dish machine uses natural heat from the wash / rinse tank to preheat incoming final rinse water before it reaches the booster heater, lowering energy expenses and removing the need for an independent hood system at the same time. It is also designed to accept racks of dish and glassware through the front or sides for use in straight or corner applications, and it can wash up to 40 racks per hour with only 0.89 gallons of water per cycle! This dish machine also incorporates a soil purging system which traps plate debris in a removable external tray, keeping the wash water clean. A built-in 12kW booster heater is included.

- Ventless design with heat recovery system, for greater energy savings

- 6 kW wash tank heater

- Built-in 12kW booster heater (40 degrees)

- 8 gallon wash tank; 1 hp wash pump motor

- All stainless steel construction

- Fully automatic cycle for easy use; automatic heat exchange condenser wash-down

- It requires a 208/240V, 1 phase electrical connection

Overall Dimensions:
Width: 25 1/2"
Depth: 29"
Height: 86 5/16"
Inside Chamber Clearance: 17 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
