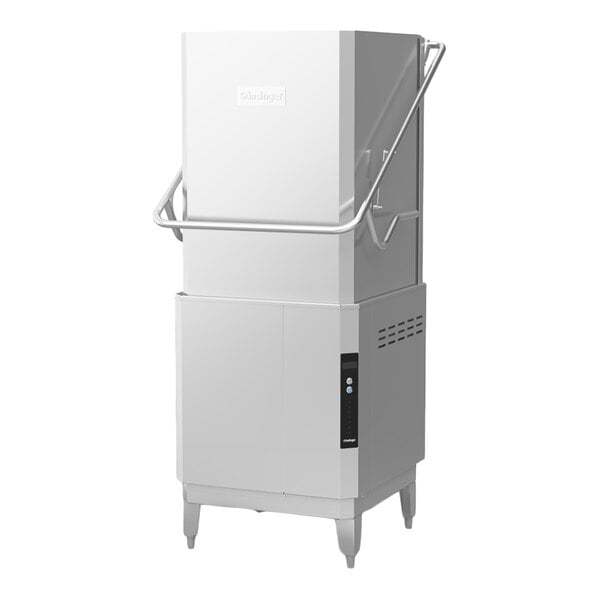

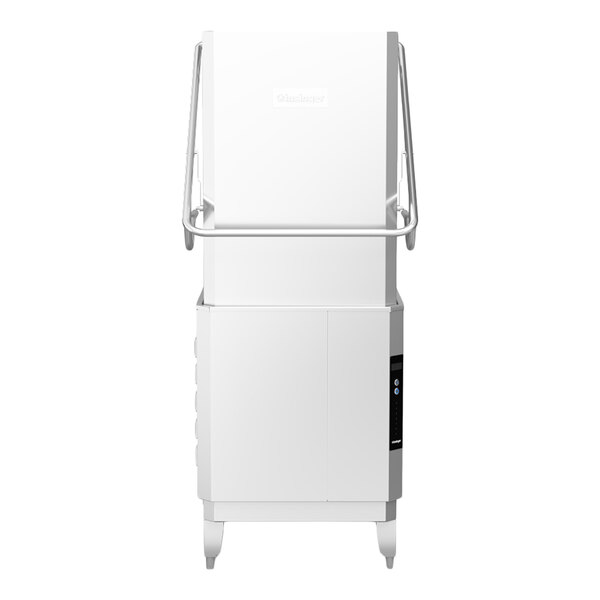

Insinger CX20H Door-Type High Temperature Dishwasher with High Hood and HeatCore Booster Heater - 208V, 3 Phase
Item number 97bcx2h203MFR number CX20H 208/60/3
$16,536.00/Each
Ships free with
Login or enter your email to be instantly sent the price!
Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Earn up to $496.08 back (49,608 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 1 Business Day from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable 304 stainless steel frame, legs, and adjustable feet
- Cleans up to (60) 20" x 20" racks per hour using 0.65 gallons of water per rack
- 3 wash cycles for dishware and cookware
- Built-in HeatCore submerged booster heater for high-temperature rinsing and washing
- High-hood design fits full size sheet pans (sold separately)
Works With
View All Items
$122.49/Case
$92.99/Case
$86.99/Case
$108.99/Case
$109.99/Case
$89.99/Each
$63.49/Case
$138.49/Case
Thoroughly clean and sanitize racks of dishware and cookware quickly with this Insinger CX20H dishwasher!
Designed for versatility, this door-type dishwasher is made for convenient access with a 27 1/4" door opening for maximum clearance, and it fits full size sheet pans thanks to its high-hood design (sold separately). This powerful, energy-efficient dishwasher combines a durable 304 stainless steel frame, legs, and adjustable feet with high-temperature sanitization for a reliable, easy-to-use dishwashing solution designed for high-traffic commercial kitchen environments. It provides convenient use with a front-mounted wash tank, an easy-glide door with an Ergo-Grip door handle that ensures smooth corner installations without modification, and a foot-operated drain pedal.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
Powerful Operation
This powerful 3 phase dishwasher features a water temperature range from 110-160 degrees Fahrenheit. It features 3 wash cycles, with a standard cycle, an extended cycle, and a heavy cycle, each with the right balance of power to ensure spotless results with every wash. It has a 17.5 gallon wash tank capacity. It washes up to (60) 20” x 20” racks per hour for 1,500 dishes, 2,400 glasses, or 2,400 meals per hour, using only 0.65 gallons of water per rack at 20 PSI for 38.4 gallons per hour. This single-point electrical unit requires a 208V connection for operation.
Convenient Technology

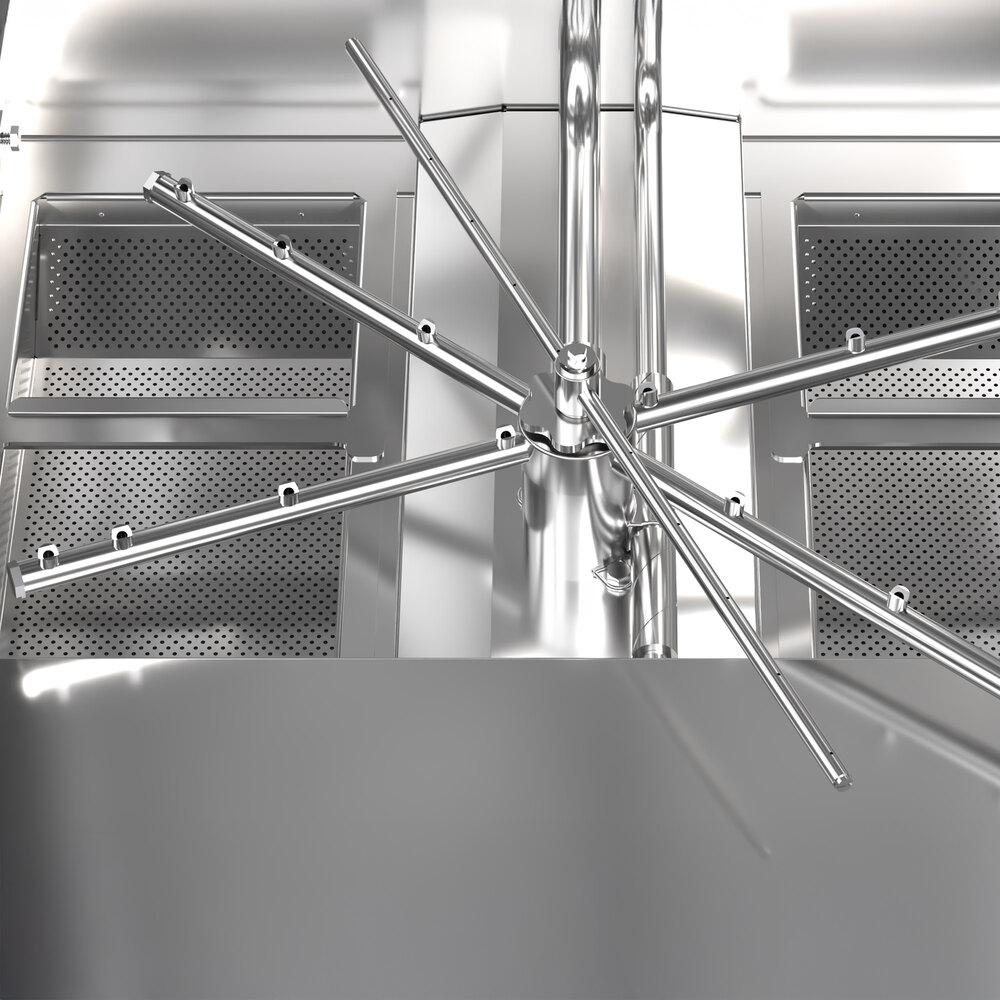

This unit features a quad-arm wash system for full rack coverage, and RackAware rack detection that optimizes water and energy use by automatically sensing when dish racks are present. This ensures that the wash and rinse cycles only activate when needed, significantly reducing water and energy consumption. This item is compatible with select Insinger accessories like additional racks, external panel kits, external steam boosters, a drain quench system, and an additional security package (sold separately).
Efficient Heat Transfer

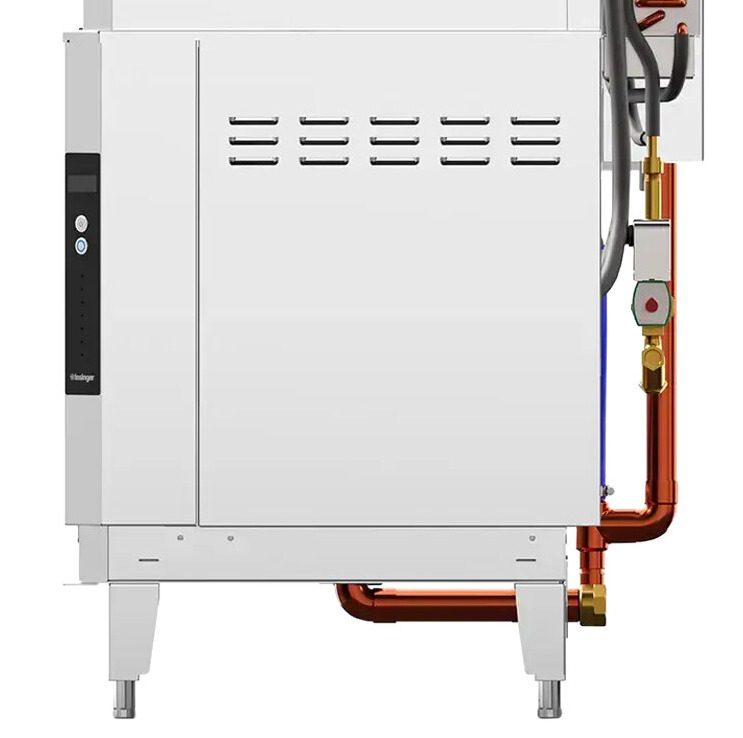

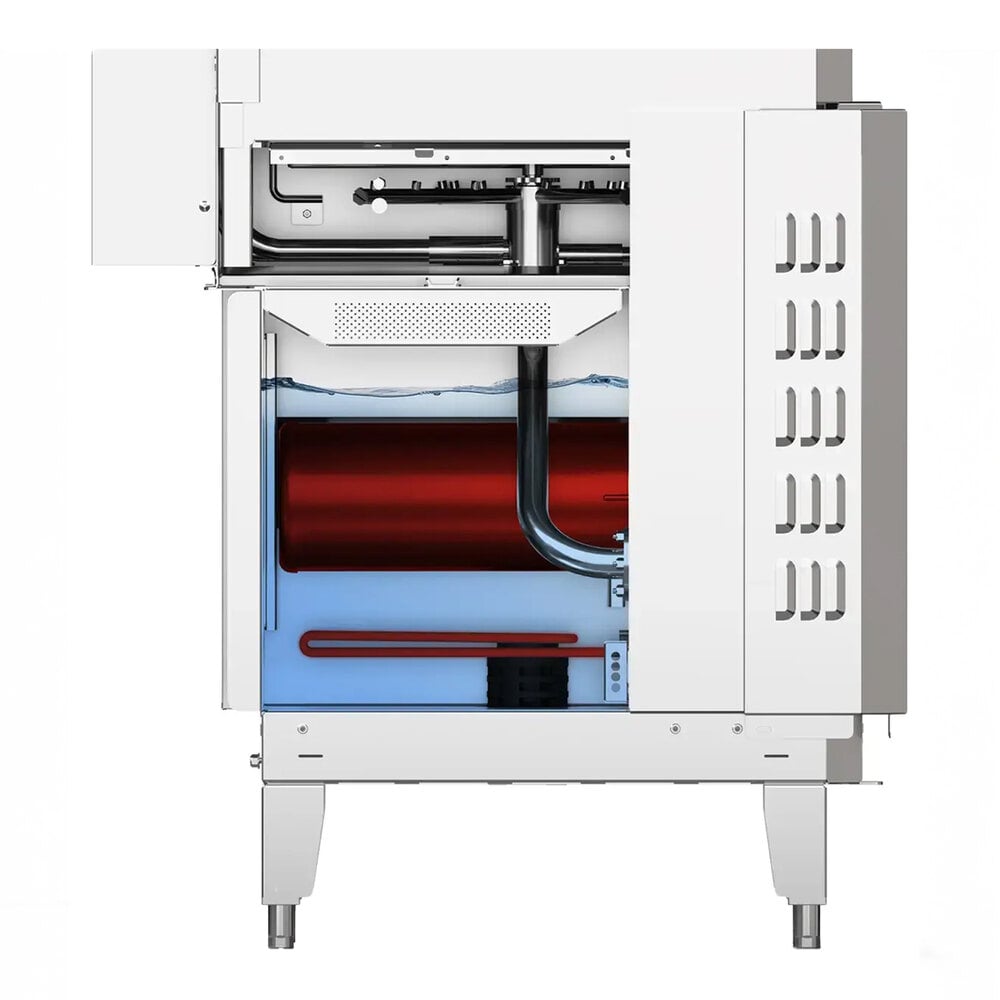

This Insinger CX20H dishwasher features a 1.5 hp wash motor with a built-in HeatCore submerged booster heater designed for high-temperature warewashing. The booster heater tank features a 2.3 gallon capacity, and it's welded to the wash tank to absorb and transfer radiant heat more efficiently. This item’s steam tank consumes 11 lb. per hour with a steam consumption rate range of 22-43 lb. per hour and a rise range of 40-70 degrees Fahrenheit.
Optimal Protection
The unit features a drain flow peak rate of 35 gallons per minute, an overflow designed for energy conservation with low-water protection, oversized scrap screens, and a detergent connection provision with a dedicated de-lime cycle for easy cleaning. It has a StatusGlow LED indicator bar, a swing-out corner control panel with a waterproof IP67 control board for protection from moisture, and anti-vandal stainless steel buttons. It also features gas springs for the door hood, a door safety switch, a hinged dish rack support, and dish rack guides that nest and lock for rack security.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Compare to Other Products
Price
Dishwasher Style
Number of Cycles
Racks Per Hour
Wash Cycle Time
Water Temperature
- Width:
- 29 3/8 Inches
- Depth:
- 41 5/8 Inches
- Height (open):
- 96 1/4 - 96 3/4 Inches
- Height (closed):
- 67 3/8 - 67 7/8 Inches
