Product Overview

  • Features an exclusive triple wash arm for superior cleaning action
  • Includes a built-in booster heater with SaniSure technology
  • 3 selectable time cycles provide flexibility and versatility
  • Easy to see digital LED control panel with service diagnostics
  • Cleans 62 racks per hour, using only 0.72 gallons of water per rack
UPC Code:400015771221

Jackson DSTAR HH-E-D-7R-V Specs

Quantity
1/Each
Shipping Weight
400 lb.
Width
30 1/2 Inches
Depth
30 Inches
Height
71 1/2 Inches
Door Opening Width
17 1/2 Inches
Phase
1 Phase
Voltage
208 Volts
Application
Dishwashers
Dishwasher Style
Front Load
Features
Energy Recovery
Flow Pressure
15 - 65 PSI
High or Low Temp
High Temp
Incoming Water Temperature
40 - 90 Degrees F
Number of Cycles
3 Cycles
Racks Per Hour
62
Type
Ventless
Water Inlet Size
1/2 Inches
Water Usage
0.72 Gallons Per Rack

Customer questions about this product

Can I convert my dish machine from a straight-through model to a corner unit and vice versa?

Yes, this dish machine is field-convertible so you can switch your unit to best fit your needs. To do this, a false panel is needed (sold separately).

Ask your own question!

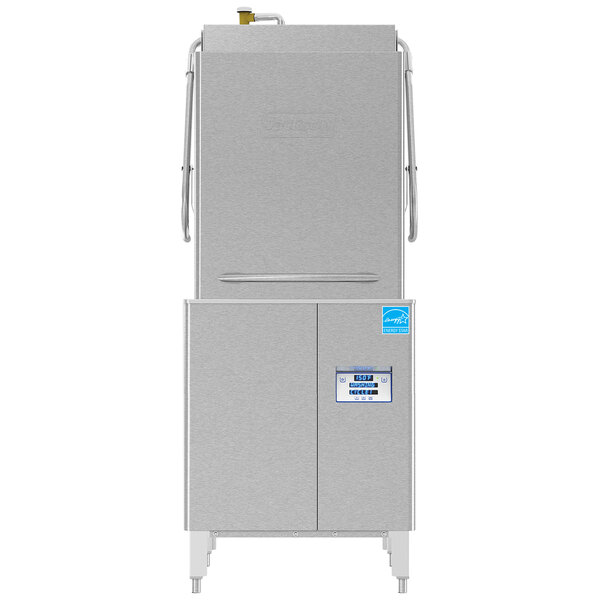

Jackson DSTAR HH-E-D-7R-V Details

Quickly, easily, and efficiently clean full racks of used dishes with the Jackson DynaStar HH-E-VER ventless high temperature tall door type pot & pan washer with energy recovery! Thanks to this durable unit, you can successfully clean up to 40 racks per hour using a mere 0.7 gallons of water per rack. Not only will this increase productivity in your dishroom, this water conserving unit lowers costs and saves money in the long run. This door type machine features a generous 17 1/2" door that accepts standard 20" x 20" racks. Keeping your dishes and glasses clean is essential to the life of your business, and this dishwasher meets those needs.

This high temperature warewashing machine comes complete with a built-in 40 to 70 degree Fahrenheit rise booster heater that helps the unit achieve appropriate rinse temperatures so you can skip the worry of any extra electrical requirements. Plus, the exclusive Sani-Sure feature also aids in assuring proper temperatures for a maximum clean. Made with durable stainless steel, this machine is built to withstand heavy-duty use in a humid, commercial dishroom. Specially designed stainless steel nozzles prevent clogging to provide superb cleaning action. This unit is also ventless, allowing you to place it in any convenient location since it does not require a hood.

With this unit's Energy Recovery System, it collects the hot water vapor inside the machine, using it to preheat the incoming rinse water and ultimately helping you save energy. The included delimer switch makes quick work of removing hard water deposits, so your dishes will be left sparkling clean every time. This unit also features an adjustable rinse, digital LED display, onboard service diagnostics, and 3 selectable timed cycles. For added benefit, this warewashing unit is field convertible from straight through to corner and vice versa (kit required) or from 3 phase to single phase and vice versa (kit required). This unit requires a 208V, 1 phase electrical connection.

Overall Dimensions:
Width: 30 1/2"
Depth: 30"
Height: 71 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
