Product Overview

  • Cleans 42 racks per hour with 0.92 gallons of water per rack
  • Effective low temperature chemical sanitizing model
  • Recirculating design uses less water verses fill and dump dish machines
  • Efficient 4-sided door design saves energy by retaining heat
  • LED temperature and operator display is clear and simple to use; 120V
UPC Code:EDL-1
View all Ecoline by Hobart Single Rack Dishwashers and Double Rack Dishwashers

Works With

View All Items

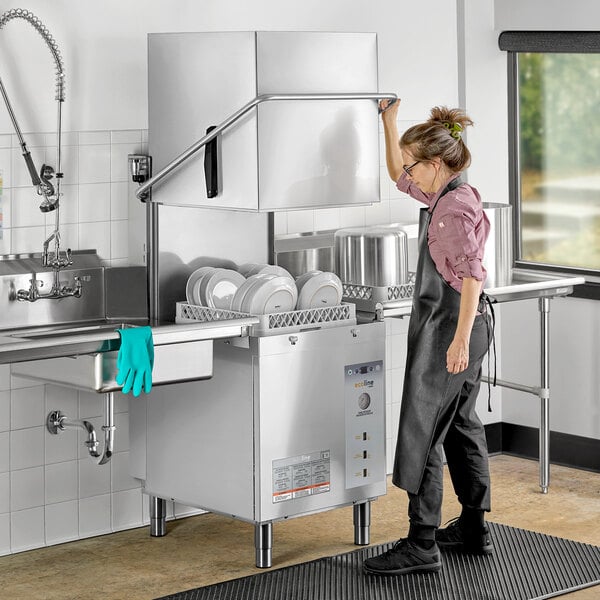

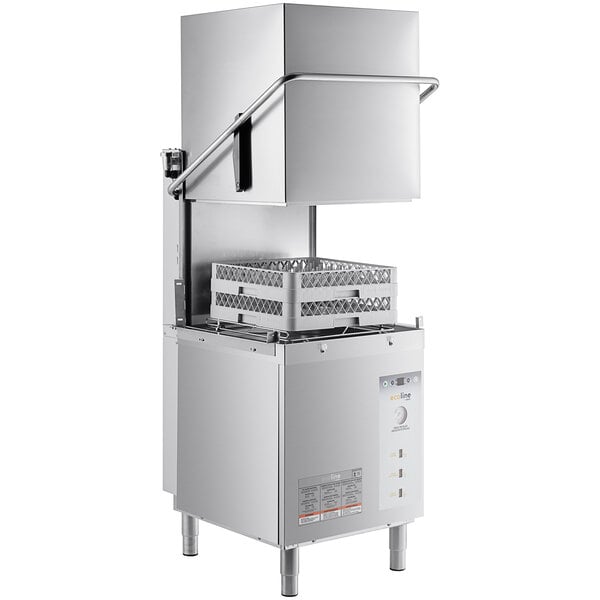

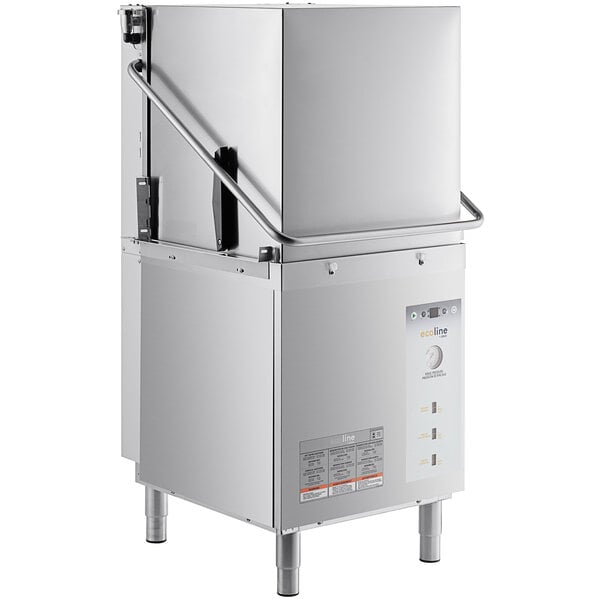

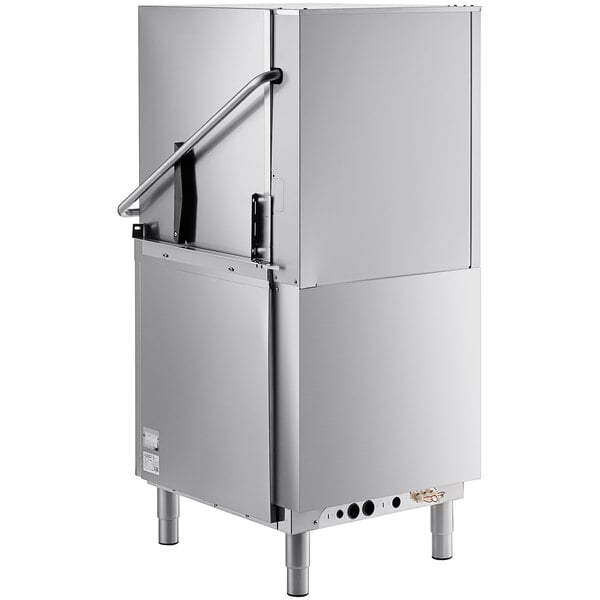

Designed for busy kitchens, the Ecoline by Hobart EDL-1 electric low temperature door-type dishwasher delivers convenience and reliability!

The perfect workhorse for your establishment, within one hour this dishwasher washes up to 42 racks, with each rack using 0.92 gallons of water, using a standard cycle. This unit features a door actuated start, and each cycle begins with a soft start and fills automatically. A sustainable and efficient machine, the four-sided door saves energy by retaining heat. Its recirculating design also uses less water compared to fill and dump dish machines for a quick and efficient wash.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Field Convertible (Electrical)

    Field Convertible (Electrical)

    This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.

Thorough Wash

The low-profile revolving upper and lower wash arms snap in for easy installation and removal, and they're designed to be anti-clogging for reduced maintenance. The arms spray water onto the dishes, combining with detergent (sold separately) for a thorough wash. As the soapy water knocks off food particles, they collect in a 2-part stainless steel scrap screen, which is easy to remove and empty. The arms then disperse rinse water through a pumped rinse, washing away the soap.

Optimal Sanitation

Using electric tank heat, this dish machine is low temperature. This machine sanitizes with chemicals. As such, chemical pumps and a chemical visual indicator come standard. The automatic pumped drain removes wash and rinse water at the end of the cycle.

Simple Operation

This dishwasher is simple to program thanks to its easy-to-access user interface. It includes a digital LED temperature and operator display, as well as a delime notification and cycle to simplify maintenance.

Easy to Maintain

Service diagnostics and error notifications also make it easy to isolate symptoms for troubleshooting, reducing the need for expensive and time-consuming service calls.

Pillarless Opening

The 17" pillarless opening of this dish machine is convenient and easy to load. This versatile opening can accommodate a single sheet pan.

Durable Construction

Heavy-duty stainless steel construction resists corrosion and extends the life of this dishwasher. This unit is made for straight through or corner installation. A 120V electrical connection is required for operation; unit is field convertible to 3 phase by a qualified electrician.

Compare to Other Products

Overall Dimensions:
Width:
28 1/2 Inches
Depth:
23 9/16 Inches
Maximum Height:
79 11/16 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Show replacement parts and accessories for Ecoline by Hobart EDL-1 today!

Resources and Downloads for
Ecoline by Hobart EDL-1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

  • NSF International
  • Top 10 Energy Conservation Tips for Restaurants
  • Types of Commercial Dishwashers
  • Dishwasher Sizes
  • Hobart Dishwasher Troubleshooting Guide

    • Ecoline by Hobart EDL-1 Specs

    Quantity
    1/Each
    Shipping Weight
    208 lb.
    Width
    28 1/2 Inches
    Depth
    23 9/16 Inches
    Door Opening Width
    17 Inches
    Maximum Height
    79 11/16 Inches
    Minimum Height
    60 9/16 inches
    Amps
    17.1 Amps
    Hertz
    60 Hz
    Phase
    1 Phase
    Voltage
    120 Volts
    Application
    Dishwashers
    Dishwasher Style
    Straight  Straight / Corner
    Features
    Auto Fill  Booster Heater Included  Built-In Drain Pump  Chemical Pumps  Digital Display  Field-Convertible (Electrical)  NSF Listed
    Flow Pressure
    20 - 25 PSI
    Glasses Per Hour
    1,890
    High or Low Temp
    Low Temp
    Number of Cycles
    1 Cycle
    Plug Type
    Hardwire
    Racks Per Hour
    42
    Type
    Single Rack
    Water Inlet Size
    3/4 Inches
    Water Usage
    0.92 Gallons Per Rack
