Product Overview

  • Cleans up to 60 racks per hour
  • Uses only 1.24 gallons of water per cycle
  • Configured for high temperature operation with use of external booster heater (sold separately)
  • 27" door opening for larger items; split door feature provides sheet pan clearance
  • 208/240V, 1 Phase; 1 hp wash pump
UPC Code:400011120160

CMA Dishmachines CMA-180TC NB 208/2401 Specs

Quantity
1/Each
Shipping Weight
353 lb.
Width
25 1/2 Inches
Depth
25 Inches
Height
70 Inches
Dishwasher Height
Tall
Amps
36 - 38 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
208/240 Volts
Application
Dishwashers
Dishwasher Style
Corner
Features
Made in America  NSF Listed
High or Low Temp
High Temp
Horsepower
1 HP
Interior Clearance
27 Inches
Minimum Water Inlet Temperature
140 Degrees F
Number of Cycles
1 Cycle
Plug Type
Hardwire
Racks Per Hour
60
Type
Single Rack
Wash Cycle Time
55 Seconds
Wash Tank Capacity
8 gal.
Water Inlet Size
3/4 Inches
Water Temperature
155 - 195 Degrees F
Water Usage
1.24 Gallons Per Rack

Customer questions about this product

Can sheet pans be washed with this dishwasher?

Yes, sheet pans can be washed using a normal peg rack. We recommend washing no more than 4 sheet pans at a time to ensure proper wash.
Ask your own question!

CMA Dishmachines CMA-180TC NB 208/2401 Details

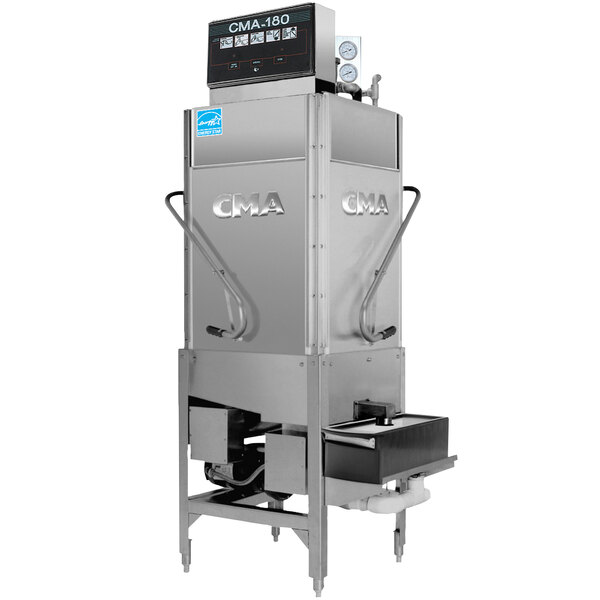

Use this CMA-180TC single rack high temperature tall corner dishwasher to quickly and efficiently clean soiled dishware and glassware! This corner dish machine is designed to accept racks of dish and glassware in through the front and to have them removed from the side, and it can wash up to 60 racks per hour with only 1.24 gallons of water per cycle! Additionally, it boasts a 27" door opening and split door design to accommodate larger items such as sheet pans, while still keeping the overall height (with door open) at only 93 1/2". Upper and lower stainless steel wash arms are removable and interchangeable for easy cleaning, and it incorporates an automatic soil purging system which traps plate debris in a removable external tray, keeping the wash water clean.

- Tall 27" door clearance with split door design to accommodate sheet pans

- Chemical resistant 7 kW heater

- 8 gallon wash tank; 1 hp wash pump motor

- All stainless steel construction

- Top mounted control box with rack counter, extended wash/delimer switch, and easy to read temperature gauges

- Automatic start / stop for easy use

- Upper and lower wash arms are interchangeable for easy operation

- It requires a 208/240V, 1 phase electrical connection

Overall Dimensions:
Width: 25 1/2"
Depth: 25"
Height: 70"
Inside Chamber Clearance: 27"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
