$9366.50/Each

This product is no longer available. We've left this page up for reference only.

  • 20 gallon capacity
  • Direct steam design utilizes a direct steam line rather than a sealed steam jacket
  • 90 degree tilting design makes it easy to empty the kettle's contents
  • 2/3 steam jacketed design for faster heat-up and cook times
  • 304 stainless steel exterior construction; 316 stainless steel interior cooking surface
  • Hemispherical kettle design for superior heat circulation
  • Steam control valve mounted in the console
  • Stainless steel pedestal base with four mounting holes

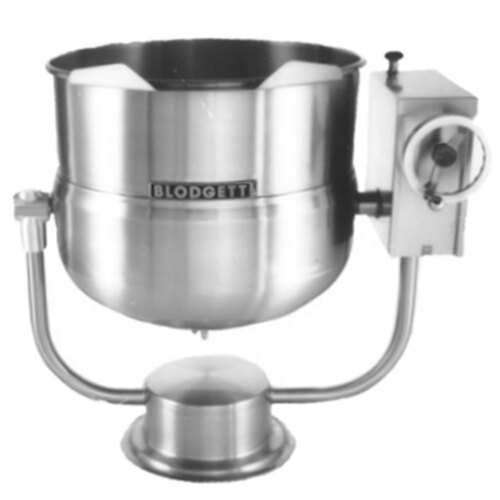

Blodgett KPT20DS Specs
Width 34 3/4 Inches
Depth 21 Inches
Height 37 Inches
Capacity 20 Gallons
Capacity per Compartment 20 Gallons
Installation Type Floor Model
Kettle Jacket Partial
Made in America Yes
NSF Listed Yes
Power Type Steam
Steam Inlet Size 3/4 Inches
Style Tilting
Type Single Kettle

Blodgett KPT20DS Details

Increase your production capabilities while saving energy and labor with this Blodgett KPT-20DS 20 gallon direct steam tilting pedestal base steam jacketed kettle! This kettle connects directly to your pre-existing steam source, while boasting a 20 gallon capacity that allows you to prepare large batches of your signature soups, stews, sauces, or pasta without the hassle of ranges or stock pots. The stainless steel pedestal base design features four evenly spaced 7/16" holes, allowing you to secure it to the floor in your kitchen.

This kettle is manufactured with a type 304 stainless steel exterior and type 316 stainless steel interior cooking surface that is highly stain- and corrosion-resistant. This allows much easier cleaning and maintenance of the cooking and exterior surfaces. In addition, this kettle features a tilting console that lets the kettle tilt 90 degrees for quick and easy emptying. The tilting console also conceals the direct steam lines from view and contains the steam controls.

Thanks to the 2/3 jacketed design, this kettle has 1-2 times more heat transfer surface area than a traditional stock pot. This means you'll have faster heat-up and cook times, which increases production. Plus, faster cook times mean less energy used, so your utility bills will be lower. And, with more even heating, there is less need for frequent stirring or "pot watching." The hemispherical bottom ensures superior heat circulation, which helps keep the heat inside the kettle rather than the surrounding kitchen area.

Overall Dimensions:
Left to Right: 34 3/4"
Front to Back: 21"
Height: 37"
Capacity: 20 gallon

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ASME U Stamp

    ASME U Stamp

    This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.

  • 3/4

    3/4" Steam Connection

    This unit comes with a 3/4" steam connection.

Resources and Downloads for
Blodgett KPT20DS

Spec Sheet Specsheet Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
