$9,463.26/Each

for details

Ships free with Plus

Accessories & Options

  • (1) 15 liter hopper
  • Mix low indicator alerts operator to add mix
  • Standard hopper agitator ensures product quality and consistency
  • Equipped with microprocessor controls
  • Standby feature maintains product temperature when machine is not in use
  • Outputs 40 quarts / hour
  • Uses R404A refrigerant; 1 HP motor
  • Digital control system automatically regulates and maintains consistent product quality.
Quality Rating:
good
Shipping: Usually Ships in 1-2 Business Days

You May Also Need

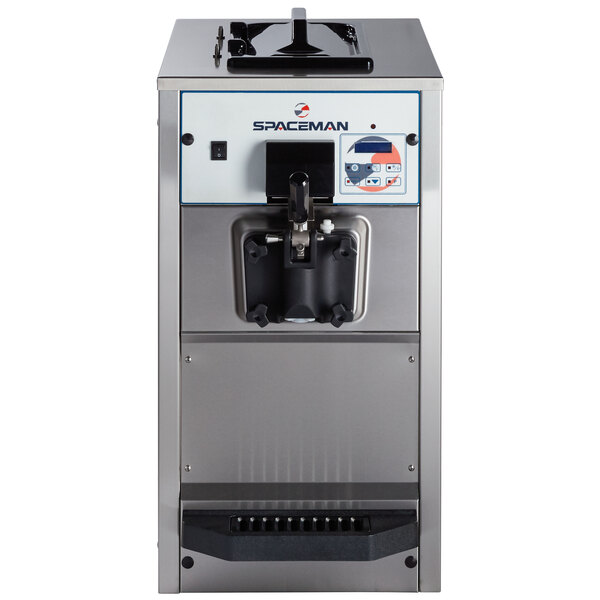

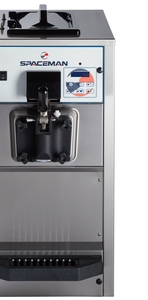

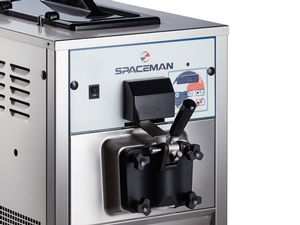

This Spaceman 6236H single flavor, countertop soft serve freezer is great for ice cream, custard, frozen yogurt, gelato, and sorbet!

The machine is equipped with (1) 3.2 liter freezing cylinder and (1) 15 liter mix hopper. This soft serve machine is small enough to be placed on a countertop, but has the ability to output up to 40 quarts an hour. Greatly expand your dessert menu and cool your customers off at the same time!

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

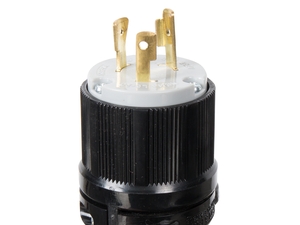

  • L6-20P

    L6-20P

    This unit comes with a locking NEMA L6-20P plug.

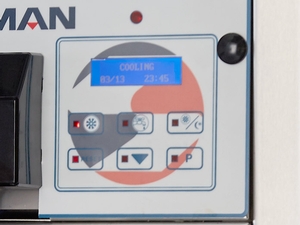

Simple to Use Controls

It is equipped with a mix low indicator, which alerts the operator when the mix is running low and gives you time to remedy the issue. The built-in temperature display shows both the hopper and cylinder temperature to control product safety.

Microprocessor Controls

The microprocessor controls add a level of convenience by automatically regulating refrigeration and helping ensure consistent product quality by controlling the product's temperature and viscosity levels.

Standby Mode

The built-in standby feature maintains product temperature in the mix hoppers and freezing cylinders below 40 degrees Fahrenheit during long no-use periods. This avoids potential user-error related damage.

Built-In Safety Features

The freezer is also equipped with low temperature and motor overload cutouts to protect from cylinder over freezing. Its high pressure switch prevents compressor overheat, while thermal overload protects the freezer from motor overheat.

Customer Q&A Ask a Question

Can my Spaceman Soft Serve machine serve gelato?
This machine can only be used with soft serve gelato mixes including: soft serve gelato, custard, yogurt, and sorbet. If you have any questions, please feel free to reach out to our Customer Solutions Team!

Spaceman Ice Cream Machine Overview

Check out this video for a brief introduction to the Spaceman USA Ice Cream Machine.

How to Sanitize Your Spaceman Ice Cream Machine

Check out this short video for the details and procedures of cleaning your Spaceman Ice Cream Machine!

Spaceman Beater Technology

Learn how Spaceman's beater technology can increase efficiency in your restaurant or ice cream parlor!

How to Assemble Your Spaceman Ice Cream Machine

Check out this video for a brief rundown of how to assemble your Spaceman Ice Cream Machine

How to Clean Your Spaceman Ice Cream Machine

This video provides a detailed demonstration of how to clean your Spaceman USA Ice Cream Machine.

How to Disassemble Your Spaceman Ice Cream Machine

Watch this video to learn how to properly disassemble your Spaceman Ice Cream Machine.

Hi, I'm Kevin Resnick. I work with Spaceman USA. Thank you for purchasing one of our machines. Today I'm going to show you about the buttons. We're going to take some product out, and we're going to clean it out and we're going to put product back in. The first one is going to be your power button. This is going to give power to your display. The second button is going to be your freeze button. This will freeze product throughout the day. The next one is your wash, which is going to beat the product and just spin the augers. Then you have sleep mode, which you'll use through the night. Reset, or the stop button. Your ice cream button which is going to show your dispenses in the day, and P, which is used for various purposes. But the first time you press P, it's going to give you the temperatures on the hoppers and the cylinders, and when the motor is running, it will give you the current of the motor. We have product that's been made in this machine right now. We're going to start by flushing it out and getting ready to pull off the discharge door. The first thing that we want to do is remove the hopper covers and the air tubes. And we'll take these to the sink. We're going to pour a little bit of water in the hoppers, about a gallon in each side, and we're going to flush out the product that's remaining in the machine. Press wash on the front and that's going to agitate the mix. We'll use our brush and we'll just scrub along the sides and break free any debris. We've had it on wash now for approximately a minute. We're going to pull down the handles and remove the product. Once you've removed all the mix, you'll want to press the reset button, which is going to stop the beaters from spinning. Then we'll do a second rinse just to make sure we get everything as clean as we can. No you're ready to disassemble the discharge door.

Copy and paste the embed code above.
Prepare two gallons of approved sanitizing solution. Pour sanitizing solution into the hoppers and allow it to flow into the freezing cylinder. Now that we have the sanitizing solution in the hoppers, we want to hit stop, and then clean, which is going to beat the motor and move the sanitizer around. During this time, we'll also use the brush again to get the sanitizer around the top of the hopper. We're going to let this sit for the time specified on the sanitizer and then we'll drain it and prepare it to make product. Now that our machine has been sanitized, we're going to chase out the last of the sanitizer with a little bit of yogurt, before we start to prime and produce. We'll remove our air tubes and install the caps. We want to make sure that we're using the flavor that's going to be in the hopper. And that's going to push that sanitizer down and through. Before we go and pull down the handles, we want to make sure we flip our power switch to the OFF position. Take a cup and you'll see the sanitizer come out until you get your yogurt. Now that we've chased out our sanitizer, we can turn our power back on. We want to pull up our prime plugs. And this is going to make it so that we can fill the chamber up to a certain set point. This will set our overrun. Once we see product start to come out the bottom, we're going to push the prime plug in and install our air tube. Press reset or stop, and then freeze, and that's going to start the production of yogurt. Let's put these hopper covers on and serve product. I hope that you found this tutorial on the machine informational and thank you again for purchasing Spaceman USA.

Copy and paste the embed code above.
With Spaceman beater technology, your machine's blades scrape its cylinder walls, producing a more efficient product flow and ensuring every last drop is used.

Copy and paste the embed code above.
Our parts are clean and we're ready to lubricate and re-assemble our machine. We'll start with our rear shell bearings and their gasket. We need our lube, which is going to be made specifically for yogurt machines. You want to get it on the shaft, but not on the key. That will make it very hard to disassemble later on. Inside the gasket, we want a very good amount of lubrication. That's going to snap into place and we're ready to install these into the machine. When you get them back there, you want to make sure the key lines up. It will click in and you'll hear it pop and you won't be able to turn it. Next is going to be the beaters. We'll take our clip and our scraper blade. Them together. Then we want to line up the blade. And Holding both the blades, we'll gently insert the beater and move it around until it goes it. It should never come past the front of the machine. The next part is preparing the discharge door for assembly on the machine. We will start with our prime plugs. These little prime plug o-rings on here. Lubricate. We're going to install our rear shell bearings. Install our front bearings and our discharge door gasket. The gasket has one side that has ridges on it and another side that's flat. We want the ridges pointing towards the door and the flat side out. We're ready to assemble our discharge door into the machine. These front bearings can be a bit tricky to line up with the beaters. Just go slow. You've got the discharge door on. We're ready to install the hand screws. The longer ones will go on the top. With the door seated on the freezer, install the hand screws. Tighten equally in a criss-cross pattern to ensure the door is snug. Slide the two o-rings into the grooves on the draw valves and lubricate. Lubricate the inside of the freezer door spouts, top and bottom, and insert the draw valves form the bottom, until the slot in the draw valves comes into view. Install the adjustable draw handles. Secure with pivot pin. Snap the star cap over the bottom of each door spout. Lay the air tube in the bottom of the hopper for the sanitizing process.

Copy and paste the embed code above.
Hi, I'm Kevin Resnick. I work with Spaceman USA. Thank you for purchasing one of our machines. Today I'm going to show you about the buttons, we're going to take some product out, and we're going to clean it out, and we're going to put product back in. the first one is going to be your power button. This is going to give power to your display. Second button is going to be your freeze button. This will freeze product throughout the day. The next one is your wash, which is going to beat the product and just spin the augers. Then you have sleep mode, which you'll use through the night. Reset, or the stop button. Your ice cream button, which is going to show your dispenses in the day, and P, which is used for various purposes, but the first time that you press P, it's going to give you the temperatures on the hoppers and the cylinders, and when the motor is running, it will give you the current of the motor. We have product that's been made in this machine, right now. We're going to start by flushing it out and getting ready to pull off the discharge door. The first thing that we want to do is remove the hopper covers and the air tubes. And we'll take these to the sink. We're going to pour a little water in the hoppers, about a gallon in each side, and we're going to flush out the product that's remaining in the machine. Press wash on the front, and that's going to agitate the mix. We'll use our brush and just scrub along the sides, and break free any debris. We've had it on wash now for approximately a minute. We're going to pull down the handles and remove the product. Once you've removed all the mix, we want to press the reset button, which is going to stop the beaters from spinning. Then we'll do a second rinse, just to make sure we get everything as clean as we can. Now you're ready to disassemble the discharge door. The next thing we're going to do is remove the hand screws. A little bit of water will come out the bottom. Make sure that you're holding a towel. Our hand screws will go to the sink for washing. Grab both sides of the discharge door and remove evenly. As you remove the auger, prepare to grab the beater blades. using a towel, grab the rear shell bearing and pull that out and then pull out the ripple seal. We've got all of our pieces removed and set out for further dis-assembly and then we will take them and wash them. This tool is the easiest way to get these o-rings off. Unscrew the retention nut and pull out the retention pin and remove the handles. Flip the discharge door over. Move the tabs so that you can grab them and pull off the star caps. Push out the valve bodies. Grab your o-ring tool and remove the o-rings. Start with the back. If you remove this one first, this one is just going to fall into that groove. The h-ring goes into the middle piece and stops the two products from mixing. Be careful not to break the h-ring when you pull it off. Remove the metal from the scraper blades. It's important to do this because there will be product stuck between the scraper blade and the metal clip. Our remaining pieces do not require any dis-assembly. Our parts are clean and we're ready to lubricate and reassemble our machine. We'll start with our rear shell bearings and their gasket. We need our lube, which is going to be made specifically for yogurt machines. You want to get it on the shaft, but not on the key. That will make it very hard to dis-assemble later on. Inside the gasket we want a very good amount of lubrication. It's going to snap into place, and we're ready to install these into the machine. When you get them back there, you want to make sure the key lines up. It will click in and you'll hear it pop and then you won't be able to turn it. Next is going to be the beaters. We'll take our clip and our scraper blade; them together. Then we want to line up the blade. And holding both the blades, we'll gently insert the beater and move it around until it goes in. It should never come past the front of the machine. The next part is preparing the discharge door assembly on the machine. We'll start with our prime plugs. These little prime plug o-rings on here. Lubricate. We're going to install our rear shell bearings. Install our front bearings and our discharge door gasket. The gasket has one side that has ridges on it and another side that's flat. We want the ridges pointing towards the door and the flat side out. We're ready to assemble our discharge door into the machine. These front bearings can be a bit tricky to line up with the beaters. Just go slow. We've got the discharge door on. We're ready to install the hand screws. The longer ones will go on the top. With the door seated on the freezer, install the hand screws. Tighten equally in a criss-cross pattern to ensure the door is snug. Slide the two o-rings into the grooves on the draw valves and lubricate. Lubricate the inside of the freezer door spouts, top and bottom, and insert the draw valves from the bottom until the slot in the draw valves comes into view. Install the adjustable draw handles. Secure with pivot pin. Snap the star cap over the bottom of each door spout. Lay the air tube in the bottom of the hopper for the sanitizing process. Prepare two gallons of approves sanitizing solution. Pour sanitizing solution into the hoppers and allow it to flow into the freezing cylinder. Now that we have the sanitizing solution in the hoppers, we want to hit stop, and then clean, which is going to beat the motor and move the sanitizer around. During this time we'll also use the brush again to get the sanitizer around the top of the hopper. We're going to let this sit for the time specified on the sanitizer and then we'll drain it and prepare to make product. Now that our machine has been sanitized, we're going to chase out the last of the sanitizer with a little bit of yogurt before we start to prime and produce. We'll remove our air tubes and install the caps. We want to make sure we're using the flavor that's going to be in the hopper. And that's going to push that sanitizer down and through. Before we go and pull down the handles, we want to make sure that we flip our power switch to the off position. Take a cup and you'll see the sanitizer come out until you get your yogurt. Now that we've chased out our sanitizer, we can turn our power back on. We want to pull up our prime plugs and this is going to make it so that we can fill the chamber up to a certain set point. This will set our overrun. Once we see product start to come out the bottom, we're going to push the prime plug in and install our air tube. Press reset or stip, then freeze, and that's going to start the production of yogurt.

Copy and paste the embed code above.
The next thing we're going to do is remove the hand screws. A little bit of water will come out the bottom. Make sure you're holding a towel. Our hand screws will go to the sink for washing. Grab both sides of the discharge door and remove evenly. As you remove the auger, prepare to grab the beater blades. Using a towel, grab the rear shell bearing and pull that out, then pull out the ripple seal. We've got all of our pieces removed and set out for further dis-assembly. Then we will take them and wash them. This tool is the easiest way to get these o-rings off. Unscrew the retention nut and pull out the retention pin and remove the handles. Flip the discharge door over. Move the tabs so that you can grab them and pull off the star caps. Push out the valve bodies. Grab your o-ring too and remove the o-rings. Start with the back. If you remove this one first, this one is just going to fall into that groove. The h-ring goes into the middle piece, and stops the two products from mixing. Be careful not to break the h-ring when you pull it off. Remove the metal from the scraper blades. It is important to do this because there will be product stuck in between the scraper blade and the metal clip. Our remaining pieces do not require any dis-assembly.

Copy and paste the embed code above.
Overall Dimensions:
  • Width: 17.9375 Inches
  • Depth: 25 Inches
  • Height: 35.8125 Inches
  • Capacity: 15 Liters Liters

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents: Prop 65 Warning

Resources and Downloads

6236 Spec Sheet Specsheet Spaceman Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Warranty only valid once training is complete. Please contact Customer Solutions for details. INTERNATIONAL USERS:For users outside the United States, Spaceman offers a one year part warranty. Any labor costs incurred by an onsite technician are not covered. Condensers must be cleaned annually (at a minimum) and documented by buyer in order to maintain the compressor warranty. RESIDENTIAL USERS: Spaceman assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
