$7,841.00/Each

for details

Ships free with Plus

Accessories & Options

  • (1) 12 liter hopper
  • Mix low indicator alerts operator to add mix
  • Standard hopper agitator ensures product quality and consistency
  • Equipped with microprocessor controls
  • Standby feature maintains product temperature when machine is not in use
  • Outputs 30 quarts / hour
  • Uses R404A refrigerant; 1 1/5 HP motor
  • Digital control system automatically regulates and maintains consistent product quality.
Quality Rating:
good
Shipping: Usually Ships in 1-2 Business Days

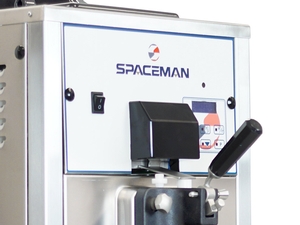

Add frozen treats to your menu with this Spaceman 6228H 1-hopper soft serve ice cream machine.

Pairing precision engineering with a smart, common-sense design, this Spaceman single flavor countertop soft serve freezer will give your customers the ice cream, frozen yogurt, custard, and sorbet they crave, and give you the simple operation you need to keep your business running smoothly! This unit is equipped with (1) 1.7 liter freezing cylinder and (1) 12 liter mix hopper, and while it may be small enough to fit on a countertop, it can still produce up to 30 quarts an hour!

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

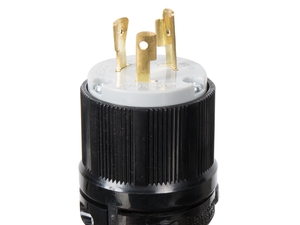

  • L6-20P

    L6-20P

    This unit comes with a locking NEMA L6-20P plug.

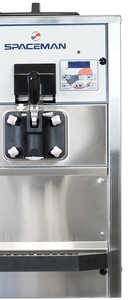

30 Qt. Output

Boasting an output of 30 qt. an hour, this soft serve machine is great for a wide range of businesses. Plus, with a built-in counter to track the number of dispenses per day and total dispenses, this unit helps you track usage so you can keep the right stock of mix and other ice cream supplies.

Quality System, Quality Ice Cream

This unit features a patented freezing cylinder design that freezes faster and more efficiently than any competitor, a tight-fitting beater, and a precision-engineered air tube that allows separate suction of air and product each time the beater turns. This translates to smaller ice crystals and a smoother finished product that will keep customers coming back for more. It also means you get the most consistent overrun control of any gravity-fed machine, so you can count on each batch coming out with the same texture every time!

Plug-And-Play Setup

This unit ships with an 8’ cord and plug included so that you can install and use it right out of the box, with no need to call an electrician for wiring. It is 208/230V.

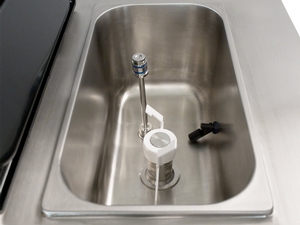

Single 12 Liter Mix Hopper

This model boasts a 12 liter mix hopper, with a magnetic drive agitator that helps maintain consistent product temperature, in addition to preventing settling.

Smart Engineering

Maximizing freezing cylinder efficiency reduces the energy consumption and heat output of the machine, making it run smarter, not harder, to make frozen products. In addition, the scraper blades feature a 1-piece design, which cuts down on the number of parts to clean and maintain. Precision engineering and extra care taken in the welds and junctions, particularly in the hopper area, ensure that you’re getting a product that will last.

Dual Compressors

This air-cooled unit comes with a 1.7 liter freezing cylinder, a 4400 BTU/HR main compressor (uses R-404A refrigerant), and a separate 480 BTU/HR cooling compressor (uses R-134a refrigerant). It has a 1 1/5 hp motor.

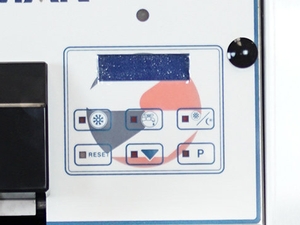

Easy to Use Controls

Intuitive digital controls allow easy monitoring and let you adjust the settings for viscosity and hopper temperature. Standby mode keeps the product fresh overnight, and a low mix indicator lets you know when more mix needs to be added.

Customer Q&A Ask a Question

Can my Spaceman Soft Serve machine serve gelato?
This machine can only be used with soft serve style mixes of gelato, custard, yogurt, ice cream, and sorbet. If you have any questions, please feel free to reach out to our Customer Solutions Team!

Spaceman Ice Cream Machine Overview

Check out this video for a brief introduction to the Spaceman USA Ice Cream Machine.

How to Sanitize Your Spaceman Ice Cream Machine

Check out this short video for the details and procedures of cleaning your Spaceman Ice Cream Machine!

Spaceman Beater Technology

Learn how Spaceman's beater technology can increase efficiency in your restaurant or ice cream parlor!

How to Assemble Your Spaceman Ice Cream Machine

Check out this video for a brief rundown of how to assemble your Spaceman Ice Cream Machine

How to Clean Your Spaceman Ice Cream Machine

This video provides a detailed demonstration of how to clean your Spaceman USA Ice Cream Machine.

How to Disassemble Your Spaceman Ice Cream Machine

Watch this video to learn how to properly disassemble your Spaceman Ice Cream Machine.

Hi, I'm Kevin Resnick. I work with Spaceman USA. Thank you for purchasing one of our machines. Today I'm going to show you about the buttons. We're going to take some product out, and we're going to clean it out and we're going to put product back in. The first one is going to be your power button. This is going to give power to your display. The second button is going to be your freeze button. This will freeze product throughout the day. The next one is your wash, which is going to beat the product and just spin the augers. Then you have sleep mode, which you'll use through the night. Reset, or the stop button. Your ice cream button which is going to show your dispenses in the day, and P, which is used for various purposes. But the first time you press P, it's going to give you the temperatures on the hoppers and the cylinders, and when the motor is running, it will give you the current of the motor. We have product that's been made in this machine right now. We're going to start by flushing it out and getting ready to pull off the discharge door. The first thing that we want to do is remove the hopper covers and the air tubes. And we'll take these to the sink. We're going to pour a little bit of water in the hoppers, about a gallon in each side, and we're going to flush out the product that's remaining in the machine. Press wash on the front and that's going to agitate the mix. We'll use our brush and we'll just scrub along the sides and break free any debris. We've had it on wash now for approximately a minute. We're going to pull down the handles and remove the product. Once you've removed all the mix, you'll want to press the reset button, which is going to stop the beaters from spinning. Then we'll do a second rinse just to make sure we get everything as clean as we can. No you're ready to disassemble the discharge door.

Copy and paste the embed code above.
Prepare two gallons of approved sanitizing solution. Pour sanitizing solution into the hoppers and allow it to flow into the freezing cylinder. Now that we have the sanitizing solution in the hoppers, we want to hit stop, and then clean, which is going to beat the motor and move the sanitizer around. During this time, we'll also use the brush again to get the sanitizer around the top of the hopper. We're going to let this sit for the time specified on the sanitizer and then we'll drain it and prepare it to make product. Now that our machine has been sanitized, we're going to chase out the last of the sanitizer with a little bit of yogurt, before we start to prime and produce. We'll remove our air tubes and install the caps. We want to make sure that we're using the flavor that's going to be in the hopper. And that's going to push that sanitizer down and through. Before we go and pull down the handles, we want to make sure we flip our power switch to the OFF position. Take a cup and you'll see the sanitizer come out until you get your yogurt. Now that we've chased out our sanitizer, we can turn our power back on. We want to pull up our prime plugs. And this is going to make it so that we can fill the chamber up to a certain set point. This will set our overrun. Once we see product start to come out the bottom, we're going to push the prime plug in and install our air tube. Press reset or stop, and then freeze, and that's going to start the production of yogurt. Let's put these hopper covers on and serve product. I hope that you found this tutorial on the machine informational and thank you again for purchasing Spaceman USA.

Copy and paste the embed code above.
With Spaceman beater technology, your machine's blades scrape its cylinder walls, producing a more efficient product flow and ensuring every last drop is used.

Copy and paste the embed code above.
Our parts are clean and we're ready to lubricate and re-assemble our machine. We'll start with our rear shell bearings and their gasket. We need our lube, which is going to be made specifically for yogurt machines. You want to get it on the shaft, but not on the key. That will make it very hard to disassemble later on. Inside the gasket, we want a very good amount of lubrication. That's going to snap into place and we're ready to install these into the machine. When you get them back there, you want to make sure the key lines up. It will click in and you'll hear it pop and you won't be able to turn it. Next is going to be the beaters. We'll take our clip and our scraper blade. Them together. Then we want to line up the blade. And Holding both the blades, we'll gently insert the beater and move it around until it goes it. It should never come past the front of the machine. The next part is preparing the discharge door for assembly on the machine. We will start with our prime plugs. These little prime plug o-rings on here. Lubricate. We're going to install our rear shell bearings. Install our front bearings and our discharge door gasket. The gasket has one side that has ridges on it and another side that's flat. We want the ridges pointing towards the door and the flat side out. We're ready to assemble our discharge door into the machine. These front bearings can be a bit tricky to line up with the beaters. Just go slow. You've got the discharge door on. We're ready to install the hand screws. The longer ones will go on the top. With the door seated on the freezer, install the hand screws. Tighten equally in a criss-cross pattern to ensure the door is snug. Slide the two o-rings into the grooves on the draw valves and lubricate. Lubricate the inside of the freezer door spouts, top and bottom, and insert the draw valves form the bottom, until the slot in the draw valves comes into view. Install the adjustable draw handles. Secure with pivot pin. Snap the star cap over the bottom of each door spout. Lay the air tube in the bottom of the hopper for the sanitizing process.

Copy and paste the embed code above.
Hi, I'm Kevin Resnick. I work with Spaceman USA. Thank you for purchasing one of our machines. Today I'm going to show you about the buttons, we're going to take some product out, and we're going to clean it out, and we're going to put product back in. the first one is going to be your power button. This is going to give power to your display. Second button is going to be your freeze button. This will freeze product throughout the day. The next one is your wash, which is going to beat the product and just spin the augers. Then you have sleep mode, which you'll use through the night. Reset, or the stop button. Your ice cream button, which is going to show your dispenses in the day, and P, which is used for various purposes, but the first time that you press P, it's going to give you the temperatures on the hoppers and the cylinders, and when the motor is running, it will give you the current of the motor. We have product that's been made in this machine, right now. We're going to start by flushing it out and getting ready to pull off the discharge door. The first thing that we want to do is remove the hopper covers and the air tubes. And we'll take these to the sink. We're going to pour a little water in the hoppers, about a gallon in each side, and we're going to flush out the product that's remaining in the machine. Press wash on the front, and that's going to agitate the mix. We'll use our brush and just scrub along the sides, and break free any debris. We've had it on wash now for approximately a minute. We're going to pull down the handles and remove the product. Once you've removed all the mix, we want to press the reset button, which is going to stop the beaters from spinning. Then we'll do a second rinse, just to make sure we get everything as clean as we can. Now you're ready to disassemble the discharge door. The next thing we're going to do is remove the hand screws. A little bit of water will come out the bottom. Make sure that you're holding a towel. Our hand screws will go to the sink for washing. Grab both sides of the discharge door and remove evenly. As you remove the auger, prepare to grab the beater blades. using a towel, grab the rear shell bearing and pull that out and then pull out the ripple seal. We've got all of our pieces removed and set out for further dis-assembly and then we will take them and wash them. This tool is the easiest way to get these o-rings off. Unscrew the retention nut and pull out the retention pin and remove the handles. Flip the discharge door over. Move the tabs so that you can grab them and pull off the star caps. Push out the valve bodies. Grab your o-ring tool and remove the o-rings. Start with the back. If you remove this one first, this one is just going to fall into that groove. The h-ring goes into the middle piece and stops the two products from mixing. Be careful not to break the h-ring when you pull it off. Remove the metal from the scraper blades. It's important to do this because there will be product stuck between the scraper blade and the metal clip. Our remaining pieces do not require any dis-assembly. Our parts are clean and we're ready to lubricate and reassemble our machine. We'll start with our rear shell bearings and their gasket. We need our lube, which is going to be made specifically for yogurt machines. You want to get it on the shaft, but not on the key. That will make it very hard to dis-assemble later on. Inside the gasket we want a very good amount of lubrication. It's going to snap into place, and we're ready to install these into the machine. When you get them back there, you want to make sure the key lines up. It will click in and you'll hear it pop and then you won't be able to turn it. Next is going to be the beaters. We'll take our clip and our scraper blade; them together. Then we want to line up the blade. And holding both the blades, we'll gently insert the beater and move it around until it goes in. It should never come past the front of the machine. The next part is preparing the discharge door assembly on the machine. We'll start with our prime plugs. These little prime plug o-rings on here. Lubricate. We're going to install our rear shell bearings. Install our front bearings and our discharge door gasket. The gasket has one side that has ridges on it and another side that's flat. We want the ridges pointing towards the door and the flat side out. We're ready to assemble our discharge door into the machine. These front bearings can be a bit tricky to line up with the beaters. Just go slow. We've got the discharge door on. We're ready to install the hand screws. The longer ones will go on the top. With the door seated on the freezer, install the hand screws. Tighten equally in a criss-cross pattern to ensure the door is snug. Slide the two o-rings into the grooves on the draw valves and lubricate. Lubricate the inside of the freezer door spouts, top and bottom, and insert the draw valves from the bottom until the slot in the draw valves comes into view. Install the adjustable draw handles. Secure with pivot pin. Snap the star cap over the bottom of each door spout. Lay the air tube in the bottom of the hopper for the sanitizing process. Prepare two gallons of approves sanitizing solution. Pour sanitizing solution into the hoppers and allow it to flow into the freezing cylinder. Now that we have the sanitizing solution in the hoppers, we want to hit stop, and then clean, which is going to beat the motor and move the sanitizer around. During this time we'll also use the brush again to get the sanitizer around the top of the hopper. We're going to let this sit for the time specified on the sanitizer and then we'll drain it and prepare to make product. Now that our machine has been sanitized, we're going to chase out the last of the sanitizer with a little bit of yogurt before we start to prime and produce. We'll remove our air tubes and install the caps. We want to make sure we're using the flavor that's going to be in the hopper. And that's going to push that sanitizer down and through. Before we go and pull down the handles, we want to make sure that we flip our power switch to the off position. Take a cup and you'll see the sanitizer come out until you get your yogurt. Now that we've chased out our sanitizer, we can turn our power back on. We want to pull up our prime plugs and this is going to make it so that we can fill the chamber up to a certain set point. This will set our overrun. Once we see product start to come out the bottom, we're going to push the prime plug in and install our air tube. Press reset or stip, then freeze, and that's going to start the production of yogurt.

Copy and paste the embed code above.
The next thing we're going to do is remove the hand screws. A little bit of water will come out the bottom. Make sure you're holding a towel. Our hand screws will go to the sink for washing. Grab both sides of the discharge door and remove evenly. As you remove the auger, prepare to grab the beater blades. Using a towel, grab the rear shell bearing and pull that out, then pull out the ripple seal. We've got all of our pieces removed and set out for further dis-assembly. Then we will take them and wash them. This tool is the easiest way to get these o-rings off. Unscrew the retention nut and pull out the retention pin and remove the handles. Flip the discharge door over. Move the tabs so that you can grab them and pull off the star caps. Push out the valve bodies. Grab your o-ring too and remove the o-rings. Start with the back. If you remove this one first, this one is just going to fall into that groove. The h-ring goes into the middle piece, and stops the two products from mixing. Be careful not to break the h-ring when you pull it off. Remove the metal from the scraper blades. It is important to do this because there will be product stuck in between the scraper blade and the metal clip. Our remaining pieces do not require any dis-assembly.

Copy and paste the embed code above.
Overall Dimensions:
  • Width: 17 15/16 Inches
  • Depth: 22 5/8 Inches
  • Height: 32 7/16 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents: Prop 65 Warning

Resources and Downloads

6228 Spec Sheet Specsheet Spaceman Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Warranty only valid once training is complete. Please contact Customer Solutions for details. INTERNATIONAL USERS:For users outside the United States, Spaceman offers a one year part warranty. Any labor costs incurred by an onsite technician are not covered. Condensers must be cleaned annually (at a minimum) and documented by buyer in order to maintain the compressor warranty. RESIDENTIAL USERS: Spaceman assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
