$4,779.50/Each

Ships free with Plus

Earn up to $143.38 back (14,338 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Accommodates two full size food pans; slim and slanted design for easy access
  • Refrigerated for optimal temperature retention of cold products
  • Auto-defrost function with 1" drain for easy cleaning
  • Adjustable condensing unit for flexibility at installation
  • R-513A refrigerant; 1/4 hp, 120V
UPC Code:400012354144

Hatco CWB-S2 AND CWB-S2SLANT Specs

Quantity
1/Each
Shipping Weight
180 lb.
Width
48 1/8 Inches
Depth
18 7/8 Inches
Height
25 1/16 Inches
Cutout Width
46 1/4 - 47 1/16 Inches
Cutout Depth
17 1/16 - 17 7/8 Inches
Amps
6.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Wattage
804 Watts
Compressor Location
Bottom Mounted
Features
Made in America  NSF Listed
Horsepower
1/4 HP
Installation Type
Drop In
Material
Aluminum / Stainless Steel
Number of Wells
2 Wells
Pan Mounting
Recessed
Plug Type
NEMA 5-15P
Power Type
Electric
Style
Narrow/Slim  Slanted/Slope Top
Temperature Range
32 - 41 Degrees F
Temperature Settings
Adjustable
Type
Refrigerated Food Wells

Hatco CWB-S2 AND CWB-S2SLANT Details

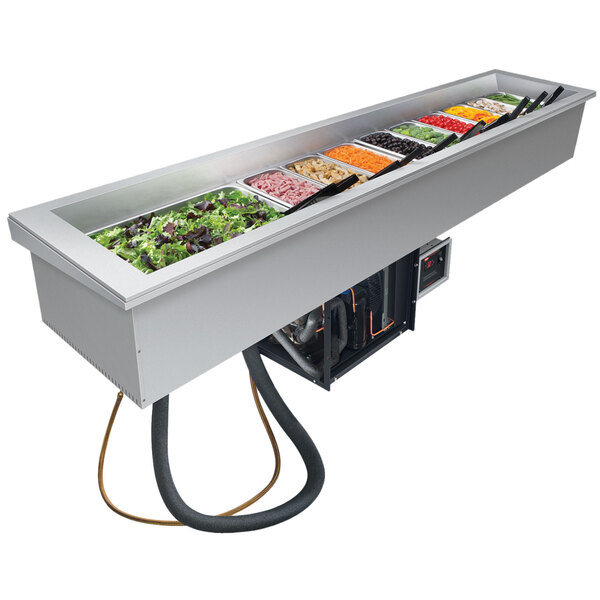

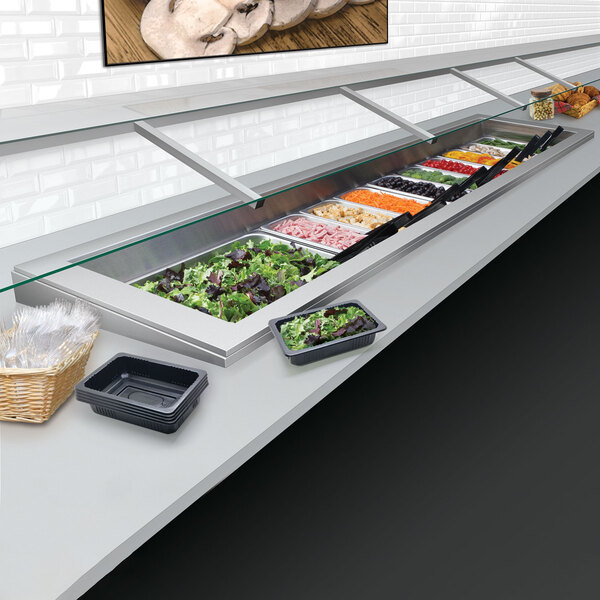

Keep your most popular cold dishes chilled to the perfect serving temperature with the Hatco CWB-S2SLANT two pan slanted refrigerated slim drop-in cold food well! Thanks to the slim design, this unit accommodates full size food pans end-to-end rather than side-by-side, adding a few extra inches of precious space between buffet lines. This ensures that customers will have an easier time accessing your salad or cold condiment bar, even with sneeze guards present. Plus, the slim design still looks uniform with the rest of your Hatco drop-in food wells for a consistent look across any serving line.

This unit comes with a slanting kit that provides a 5 degree tilt from the back of the unit to the front. This, in conjunction with the slim design, increases product accessibility for both employees and customers. This food well fits two full size food pans and features a 1/4 hp condensing unit that circulates R-513A refrigerant, so you can be sure your food stays safely cold throughout the day. The full-body insulation improves energy efficiency while retaining temperature, and you can easily maintain and fine-tune this unit with its sight glass, service valves, dryer, filter, and receiver. And, with a drop-in design, this unit can easily be installed into existing countertops, buffet lines, and other surfaces.

To prevent frost buildup, a programmable automatic defrost can be adjusted to your needs through the electronic controls. The condensing unit is field adjustable so you can fit the unit perfectly in your countertop, and thanks to the built-in 1" drain, clean-up takes a matter of moments. This unit requires a 120V electrical connection.

Overall Dimensions:
Width: 48 1/8"
Depth: 18 7/8"
Height: 25 1/16"

Cutout Dimensions:
Width: 46 1/4" to 47 1/16"
Depth: 17 1/16" to 17 7/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Need Parts & Accessories?

Show replacement parts and accessories for Hatco CWB-S2 AND CWB-S2SLANT today!

Resources and Downloads for
Hatco CWB-S2 AND CWB-S2SLANT

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

NOTICE: This product does not ship internationally.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
