Product Overview

  • Coldwall, drop-in design; for use with a remote refrigeration system
  • Accommodates up to 5 full size, 6" deep food pans; includes (6) 20" divider bars
  • Stainless steel construction, drain, and coved interior corners simplify cleaning and maintenance
  • Foamed-in-place insulation helps maintain food safe temperatures
  • 115V; condenser sold separately
UPC Code:400013051486

Alto-Shaam 500-CW/R 115V/1 Specs

Shipping Weight
270 lb.
70 1/8 Inches
27 Inches
10 1/2 Inches
Cutout Width
68 1/2 Inches
Cutout Depth
22 Inches
5.5 Amps
60 Hertz
1 Phase
115 Volts
Compressor Location
Made in America  NSF Listed  With Drain
1/4 HP
Installation Type
Drop In
Stainless Steel
Number of Pans
5 Pans
Pan Mounting
Plug Type
NEMA 5-15P
Power Type
Refrigeration Type
Temperature Settings
Refrigerated Food Wells

Alto-Shaam 500-CW/R 115V/1 Details

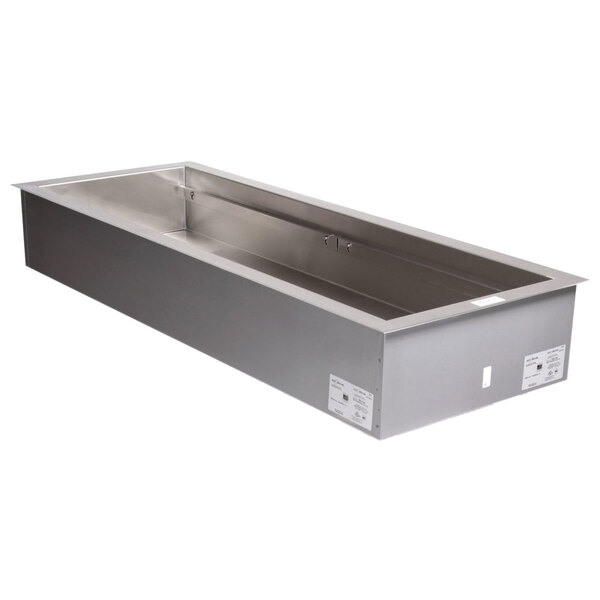

With the Alto-Shaam 500-CW/R 5 pan refrigerated drop-in cold food well, holding cold food for display and service is both safe and easy. Engineered with coldwall conductive cooling technology, the well is designed to remain at proper, food safe temperatures to maintain the quality, integrity, and visual appeal of products. From holding grapes to pasta salad and shrimp, the well creates an ideal environment to prolong the life of dishes and prevent time-temperature abuse.

This remote model requires a remote condenser (sold separately) for operation. Remote-cooled cold food wells remove any output heat or noise from around the serving area, compared to traditional models. They also reduce the space needed for the well, providing room to accommodate other necessary supplies.

For maximum holding capacity, the well accommodates up to 5 full size, 6" deep food pans and comes with 6 complementary pan dividers. A recessed stainless steel ledge is designed into the interior walls, providing pans extra support for secure placement throughout the workday. A drain and coved corners are built into the interior as well, simplifying cleaning and maintenance tasks.

The food well features a stainless steel top and interior for outstanding durability, even in constant, heavy use applications. Made of corrosion resistant steel, the exterior surface provides additional strength and durability required for commercial use. Because of the well's drop-in design, only the top and interior are visible, and the unit installs easily for quick convenience. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 70 1/8"
Depth: 27"
Height: 10 1/2"

Interior Dimensions:
Width: 64 7/8"
Depth: 22"
Height: 6 1/4"

Cutout Dimensions:
Width: 68 1/2"
Depth: 25 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.
