Product Overview

  • Coldwall, drop-in design perfect for cold food display and service
  • Accommodates up to 5 full size, 6" deep food pans; includes (6) 20" divider bars
  • Stainless steel construction, drain, and coved interior corners simplify cleaning and maintenance
  • Foamed-in-place insulation; dual air movement louver on the refrigeration system
  • 115V, 1/4 hp
UPC Code:400013051462

Alto-Shaam 500-CW 115V/1 Specs

Shipping Weight
300 lb.
70 1/8 Inches
27 Inches
27 1/2 Inches
Cutout Width
68 1/2 Inches
Interior Width
64 7/8 Inches
Cutout Depth
25 1/2 Inches
Interior Depth
22 Inches
Interior Height
6 1/4 Inches
5.5 Amps
60 Hertz
1 Phase
115 Volts
600 Watts
Compressor Location
Bottom Mounted
ADA Compliant

Made in America

NSF Listed

With Drain
1/4 HP
Installation Type
Drop In
Stainless Steel
Number of Pans
Pan Mounting
Plug Type
NEMA 5-15P
Power Type
Temperature Settings
Refrigerated Food Wells

Alto-Shaam 500-CW 115V/1 Details

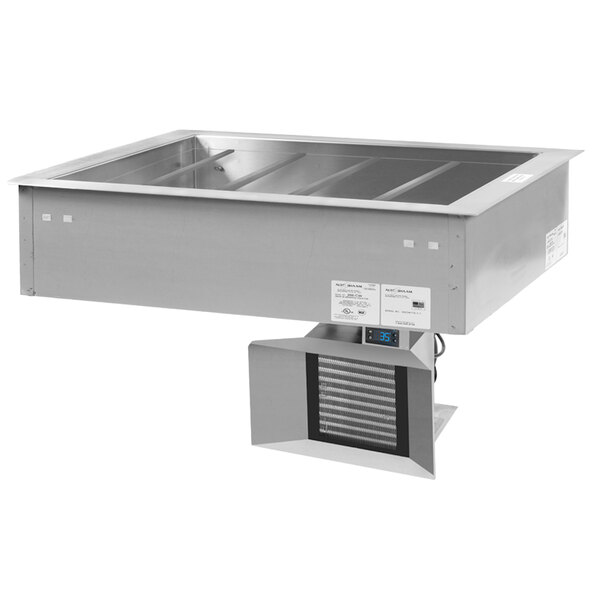

With the Alto-Shaam 500-CW 5 pan refrigerated drop-in cold food well, holding cold food for display and service is both safe and easy. Engineered with coldwall conductive cooling technology, the well is designed to remain at proper, food safe temperatures to maintain the quality, integrity, and visual appeal of products. From holding grapes to pasta salad and shrimp, the well creates an ideal environment to prolong the life of dishes and prevent time-temperature abuse.

For maximum holding capacity, the well accommodates up to 5 full size 6" deep food pans and comes with 6 complimentary 20" long pan dividers. A recessed stainless steel ledge is designed into the interior walls, providing pans extra support for secure placement throughout the workday. A drain and coved corners are built into the interior as well, simplifying cleaning and maintenance tasks.

The food well features a stainless steel top and interior for outstanding durability, even in constant, heavy use applications. Made of corrosion-resistant stainless steel, the exterior surface provides additional strength and durability required for commercial use. Because of the well's drop-in design, only the top and interior are visible, and the unit installs easily for quick convenience. The unit's height is able to accommodate ADA-compliant counters.

To help maintain cold temperatures, wrapped, foamed-in-place polyurethane insulates the well. The refrigeration system with a dual air movement louver cools the well down to the perfect cold holding temperatures, below 41 degrees Fahrenheit. Throughout the day, adjust the temperature with the easy-to-use push-button digital control, and guarantee the safety of your products. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 70 1/8"
Depth: 27"
Height: 25 5/16"

Interior Dimensions:
Width: 65 1/16"
Depth: 21 7/8"
Height: 8 3/4"

Cutout Dimensions:
Width: 68 1/2"
Depth: 25 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ADA Compliant

    ADA Compliant

    This item meets the criteria established by the Americans with Disabilities Act (ADA), helping make your restaurant more accessible to people with disabilities.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.
