Usually Ships in 5 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Holds (84) six-packs or (3) 1/2 half barrels
  • Stainless steel exterior with galvanized steel top
  • Double pane thermal swing glass doors reduce energy loss
  • Narrow model includes 6 heavy-duty adjustable PVC-coated shelves
  • Uses R-290 refrigerant; 115V, 1/4 hp
UPC Code:400012762826

True Refrigeration TBB-24GAL-72G-S-HC-LD Specs

Quantity
1/Each
Shipping Weight
435 lb.
Width
71 7/8 Inches
Depth
25 1/4 Inches
Height
34 1/4 Inches
Nominal Depth
Narrow
Amps
2.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Can Capacity
84 Six-Packs
Capacity
20.4 cu. ft.
Casters
Without Casters
Compressor Location
Side Mounted
Compressor Style
Side / Rear Breathing
Construction
Stainless Steel  Steel
Countertop Type
Galvanized Steel
Door Style
Swing
Door Type
Glass
Exterior Finish
Stainless Steel
Features
LED Lighting  Self-Closing Doors
Hinge Location
Left / Right
Horsepower
1/4 HP
Number of Doors
3 Doors
Number of Kegs
3 Kegs
Number of Shelves
6 Shelves
Refrigerant Type
R-290
Temperature Range
33 - 38 Degrees F
Top Type
Counter Height
Type
Back Bars

True Refrigeration TBB-24GAL-72G-S-HC-LD Details

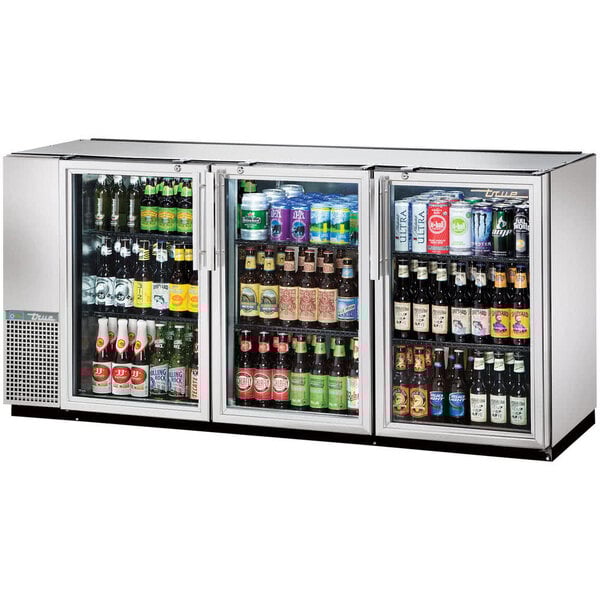

This True 71 7/8" stainless steel narrow glass door back bar refrigerator with galvanized top and LED lighting can hold up to (84) six-packs of 12 oz. cans, or (3) 1/2 kegs to keep your bar fully stocked on the busiest nights! Designed with galvanized steel walls, a reinforced lip, and door threshold protector, this unit's durable cabinet construction prevents damages from routine loading and unloading of product. Thanks to its narrow depth, this unit allows for more working room behind crowded bars.

This unit's stainless steel front and sides with matching aluminum back provide durability and a professional, sleek appearance, while its galvanized steel top allows it to easily slide under an existing bar or cabinetry. The energy efficient low-E double pane glass doors permit excellent product visibility, while six heavy-duty adjustable PVC-coated wire shelves help you make the most of the interior space. Plus, its brilliant LED interior lighting helps your products look their best while saving energy too.

With a 1/4 hp compressor, the unit's high-capacity refrigeration system maintains temperatures between 33 and 38 degrees Fahrenheit to best preserve your product. For optimal temperature retention, the entire cabinet is foamed-in-place using high-density polyurethane insulation. Thanks to its R-290 hydrocarbon refrigerant, this unit is energy-efficient. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 71 7/8"
Depth: 25 1/4"
Height: 34 1/4"
Capacity: 20.4 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Ask your own question!
  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.
