$1,049.00/Each

Ships free with Plus

Earn up to $31.47 back (3,147 points)with a Webstaurant Rewards Visa® Credit Card

Other Available Styles:

  • Black / Solid Door
  • Black / Glass Door
  • Stainless Steel / Glass Door
  • Stainless Steel / Solid Door

Installation Services

Check if installation is currently available for your area.  Enter ZIP Code >

Product Overview

  • 1 1/2" thick stainless steel countertop with stainless steel interior and black coated steel exterio
  • Casters included provide easy mobility for cleaning and organizing kitchen and bar workflow
  • Adjustable epoxy-coated steel shelf can accommodate up to 90 lb.
  • Preprogrammed digital temperature controls featuring auto-defrost function for easy setup and mainte
  • 115V; 1/4 hp; R290 refrigerant; 1.1 Amps
UPC Code:400012835667
Shipping:
Quick Shipping
Usually ships in 1 business day

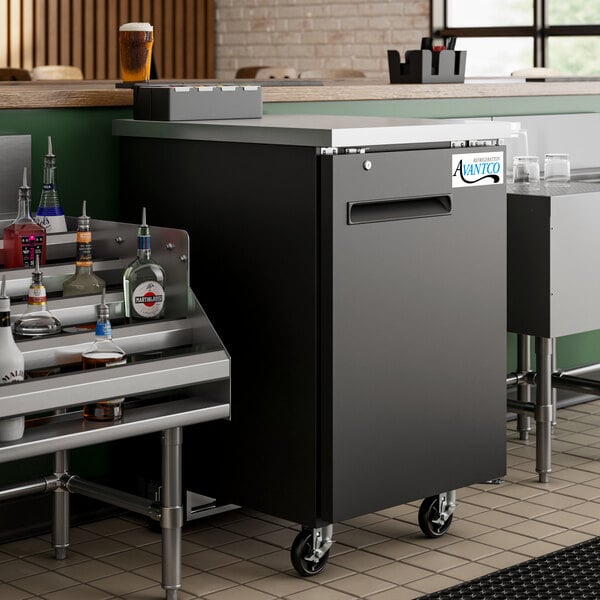

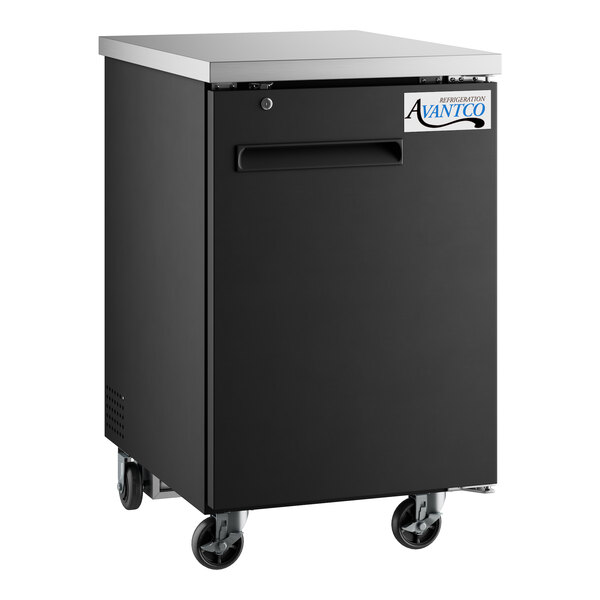

Optimize the space behind your bar by adding refrigerated storage with this Avantco UBB-1-HC 23" undercounter back bar refrigerator.

Conveniently keep beverages both cold and close at hand for immediate service to customers! With this undercounter back bar refrigerator, you can do just that. Featuring a sturdy epoxy-covered shelf and thick polyurethane insulation, the unit is engineered to make your job faster and easier. Plus, it even uses an eco-friendly refrigerant, so you can help preserve the environment while serving crisp beers, ales, and ciders all year-long!

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL US

    ETL US

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Convenient Capacity

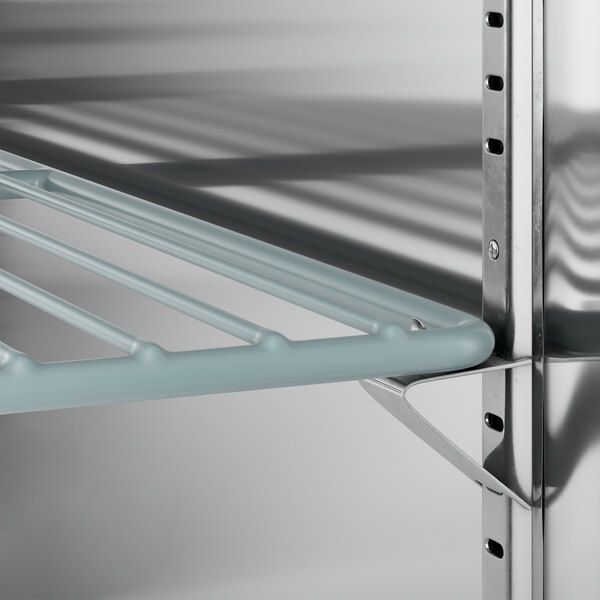

Providing 7.8 cu. ft. of interior storage space, the unit houses one epoxy-coated shelf that accommodates up to 90 lb. This shelf is perfect for storing and organizing drinks for your bar service, from bottles of ale to bottles of cider.

Structural Durability

The interior, made of strong 201 type stainless steel, won't rust or corrode with the inevitable spill or leak. Plus, for overall durability, the unit's exterior is made with black coated steel and is topped with a type 201 stainless steel surface.

Insulated Cabinet

This unit features foamed-in-place polyurethane insulation, which provides the refrigerator with additional structural integrity and ensures that all beverages held in the unit remain at cool temperatures. As a result, the refreshing supply is always ready for immediate service to customers!

Eco-Friendly Refrigerant

This back bar refrigerator ensures optimal performance by operating with a 1/4 hp refrigeration system that circulates environmentally-friendly R290 hydrocarbon refrigerant to maintain temperatures from 33 - 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

Customer Q&AAsk a Question

Can I install this unit directly on the floor without casters?
Because of the location of the compressor, this unit must be installed on the included casters.
What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?
Make sure that you are loading it properly, and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
Can this unit be built into cabinetry?
It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Overall Dimensions:
  • Width:23 1/2 Inches
  • Depth:30 3/4 Inches
  • Height:39 3/4 Inches
  • Capacity:7.8 cu. ft.
Interior Dimensions:
  • Interior Width:19 1/2 Inches
  • Interior Depth:18 1/8 Inches
  • Interior Height:28 5/8 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Avantco Refrigeration equipment with a labor warranty purchased prior to October 15th 2020 is warranted for 1 year parts & labor / 5 year compressor. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
