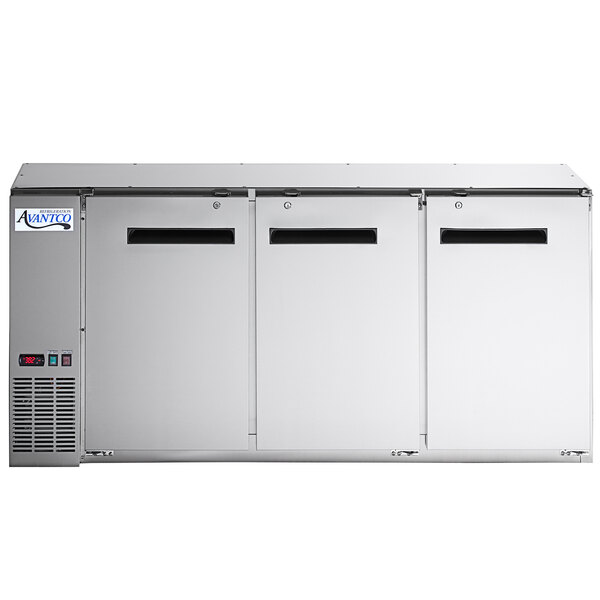

Name: Avantco UBB-72-GT-S 73" Stainless Steel Underbar Height Narrow Solid Door Back Bar Refrigerator with Galvanized Top and LED Lighting
Brand: Avantco Refrigeration
SKU: 178UBB72GTS
Price: 2129 USD
Availability: InStock

0:00 / 0:00

Regularly

$2,129.00/Each

Plus Member Price

$1,949.00/Each

Ships free with Plus

Earn up to $63.87 back (6,387 points)with a Webstaurant Rewards Visa® Credit Card

Style: Stainless Steel / Solid Door

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

Galvanized steel top with stainless steel interior and stainless steel exterior
LED interior lighting
Six adjustable epoxy-coated steel shelves can be removed to fit three 1/2 kegs
Preprogrammed digital temperature controls featuring auto-defrost function for easy setup and mainte
115V; 3/7 hp; R290 refrigerant

UPC Code:400013809438

View all Avantco Refrigeration Back Bar Coolers

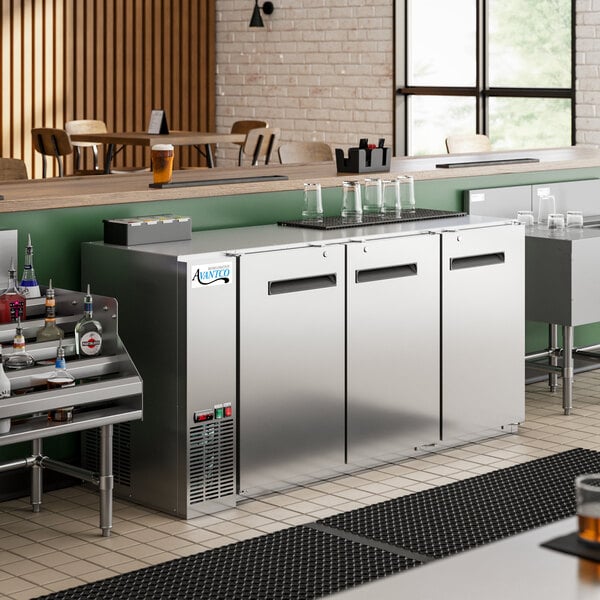

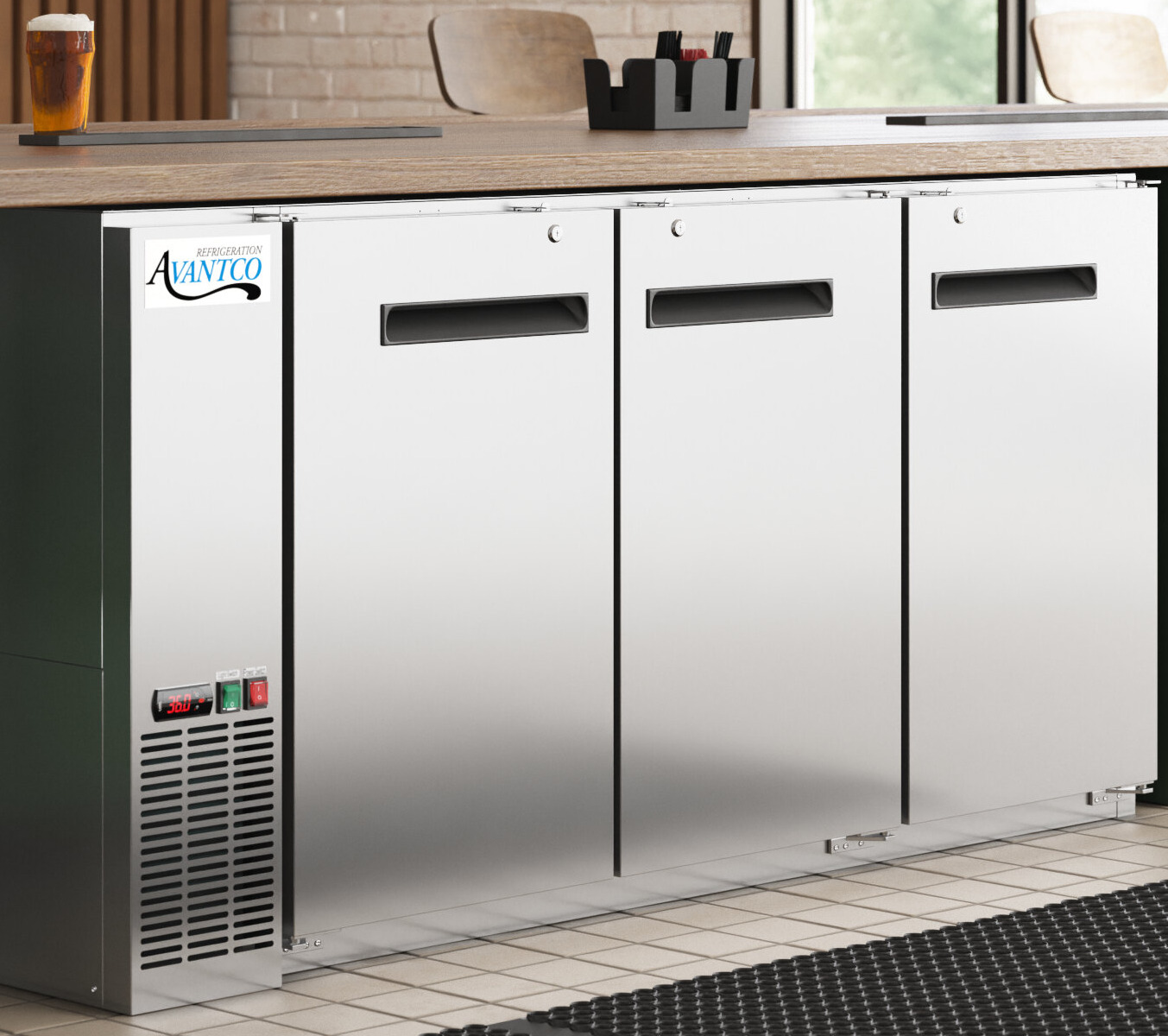

Optimize the space behind your bar with this Avantco stainless steel underbar height narrow back bar refrigerator!

Conveniently store a variety of bottles behind the bar so that they're ready to serve at all times! With this underbar back bar refrigerator, you gain 21.6 cu. ft. of refrigerated storage space for your most popular brews, ales, ciders, and other beverages. Its narrow design makes it more compact than similar units, making it ideal for operations that are tight on space. This unit even comes with adjustable feet for simple, convenient leveling.

5-15P
This unit comes with a NEMA 5-15P plug.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

Refrigerated Storage

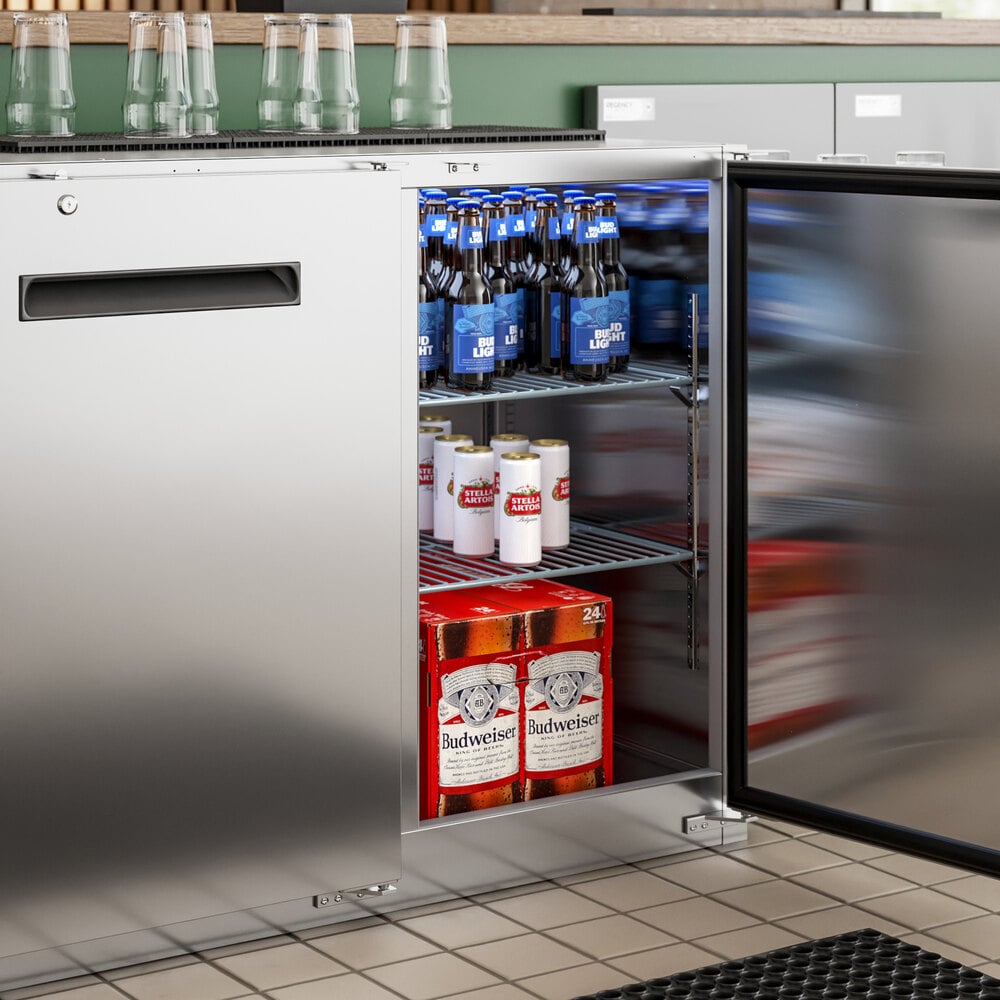

Providing 21.6 cu. ft. of interior storage space, the unit fits up to (3) 1/2 kegs and houses (6) shelves that each accommodate up to 88 lb. The epoxy-coated steel shelves are perfect for storing and organizing heavy bulk ingredients for your bar service, from bottles of ale and beer to fresh fruit for mixed drinks and garnishes.

Energy-Efficient

This back bar refrigerator ensures optimal performance by operating with a 3/7 hp refrigeration system that circulates R290 hydrocarbon refrigerant to maintain temperatures from 33 to 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an energy-efficient choice for your business. The foamed-in-place polyurethane insulation helps to maintain internal temperatures and adds rigidity to the body's structure.

Exceptional Durability

The interior, made of strong 201 type stainless steel, is accessible through two solid doors. For overall durability, the unit's exterior is made with stainless steel and is topped with a galvanized steel countertop.

Narrow Design

Ensure that bartenders and servers have enough space to work behind your bar with this space-saving unit. With its narrow design, this back bar refrigerator easily fits in spaces where other units can't. This helps you to maximize the space you have available, using it to grow your business and keep your guests and employees happy.

Customer Q&AAsk a Question

Can this unit be built into cabinetry?

It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

I'd like to install casters on this unit. Do I need 8 casters?

Yes, this item requires 8 casters. For convenience, we offer a kit with all of the casters and the M8-1.25 mm x 20 mm bolts required to mount them. See the Works With section.

What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?

Make sure that you are loading it properly and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.

Compare to Other Products

Item #: 178ubb72gtsAvantco UBB-72-GT-S 73" Stainless Steel Underbar Height Narrow Solid Door Back Bar Refrigerator with Galvanized Top and LED Lighting
Free Shipping
Price:$2,129.00/Each

72 3/4 Inches

(3) 1/2 Kegs

3 Kegs

6 Shelves

Item #: 178ubb48gtsAvantco UBB-48-GT-S 48" Stainless Steel Underbar Height Narrow Solid Door Back Bar Refrigerator with Galvanized Top and LED Lighting
Free Shipping
Price:$1,729.00/Each

48 3/4 Inches

(2) 1/2 Kegs

2 Kegs

4 Shelves

Item #: 178ubb60gtsAvantco UBB-60-GT-S 60" Stainless Steel Underbar Height Narrow Solid Door Back Bar Refrigerator with Galvanized Top and LED Lighting
Free Shipping
Price:$1,829.00/Each

60 3/4 Inches

(2) 1/2 Kegs

2 Kegs

4 Shelves

Overall Dimensions:

Width:: 72 3/4 Inches
Depth:: 24 7/16 Inches
Height:: 34.5 Inches
Capacity:: 21.6 cu. ft.

Interior Dimensions:

Width:: 60 1/8 Inches
Depth:: 18 1/2 Inches
Height:: 29 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

Bar Essentials Buying Guide

Quantity: 1/Each
Shipping Weight: 268 lb.
Width: 72 3/4 Inches
Depth: 24 7/16 Inches
Height: 34 1/4 Inches
Power Cord Length: 106 Inches
Interior Width: 60 1/8 Inches
Left Door Opening Width: 17 13/16 Inches
Middle Door Opening Width: 17 13/16 Inches
Packaging Width: 75 1/4 Inches
Right Door Opening Width: 17 13/16 Inches
Shelf Width: 19 - 20 1/2 Inches
Interior Depth: 18 1/2 Inches
Nominal Depth: Narrow
Packaging Depth: 27 1/2 Inches
Shelf Depth: 18 1/8 - 18 1/4 Inches
Interior Height: 29 Inches
Packaging Height: 41 3/4 Inches
Amps: 3.5 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 115 Volts
Wattage: 325 Watts
Access Type: Doors
BTU (LBP): 974 BTU
Capacity: (3) 1/2 Kegs 21.6 cu. ft.
Casters: Without Casters
Compressor Location: Side Mounted
Countertop Type: Galvanized Steel
Door Style: Swing
Door Type: Solid
Exterior Finish: Stainless Steel
Features: Automatic Electric Defrost Digital Temperature Controller Food Rated LED Lighting Removable Magnetic Door Gaskets
Horsepower: 3/7 HP
Individual Shelf Capacity: 88 lb.
Insulation Material: Polyurethane Foam
Material: Stainless Steel
Maximum Ambient Temperature: 90 Degrees F
Net Weight: 331 lb.
Number of 12 oz. Bottles: 308 Bottles
Number of 12 oz. Cans: 252 Cans
Number of Doors: 3 Doors
Number of Kegs: 3 Kegs
Number of Shelves: 6 Shelves
Plug Type: NEMA 5-15P
Refrigerant Capacity: 2.5 oz.
Refrigerant Type: R-290
Shelf Material: Epoxy-Coated Steel
Starting Amps: 10.5 Amps
Starting Wattage: 975 Watts
Temperature Range: 33 - 40 Degrees F
Top Capacity: 353 lb.
Top Type: Below Counter
