$1,149.00/Each

Ships free with Plus

Other Available Styles:

  • 1 1/2" thick stainless steel countertop with stainless steel interior and exterior
  • Casters included provide easy mobility for cleaning and organizing kitchen and bar workflow
  • Adjustable epoxy-coated steel shelf can accommodate up to 90 lb.
  • Preprogrammed digital temperature controls featuring auto-defrost function for easy setup and maintenance
  • 115V; 1/6 hp; R290 refrigerant
Shipping:

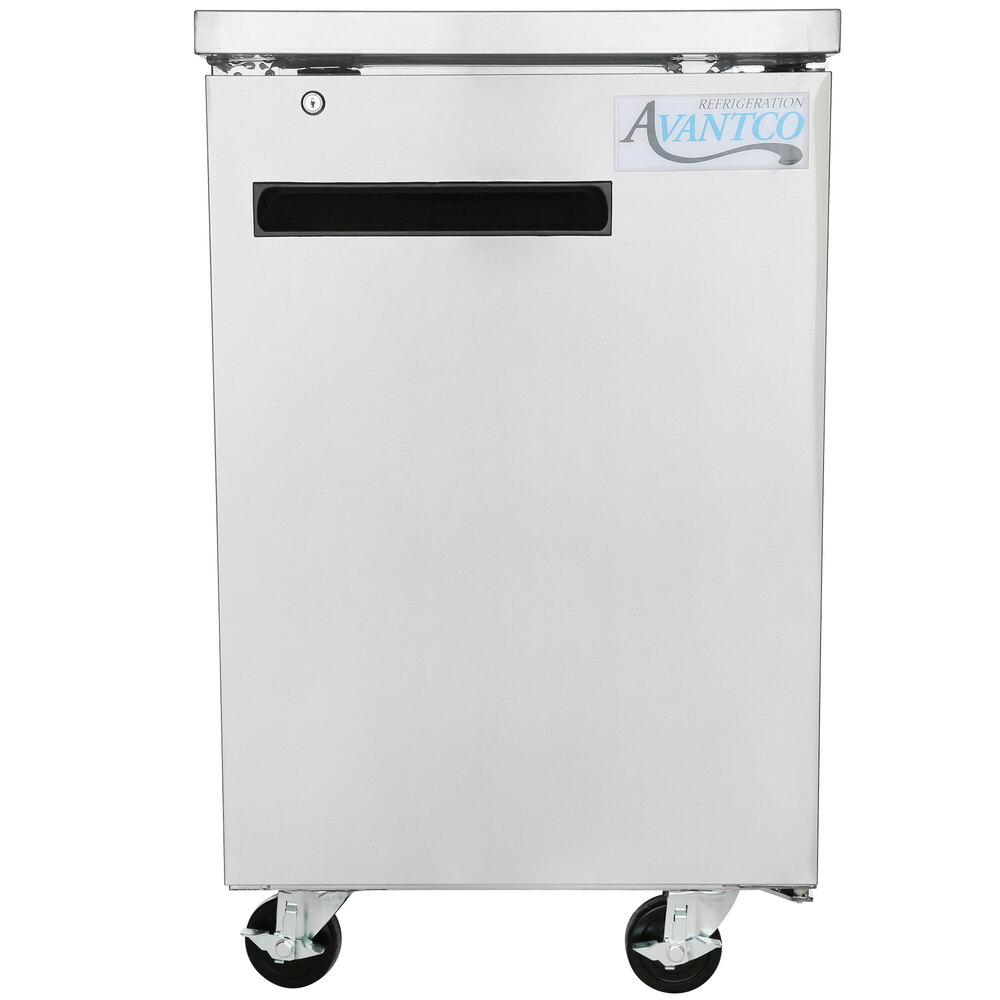

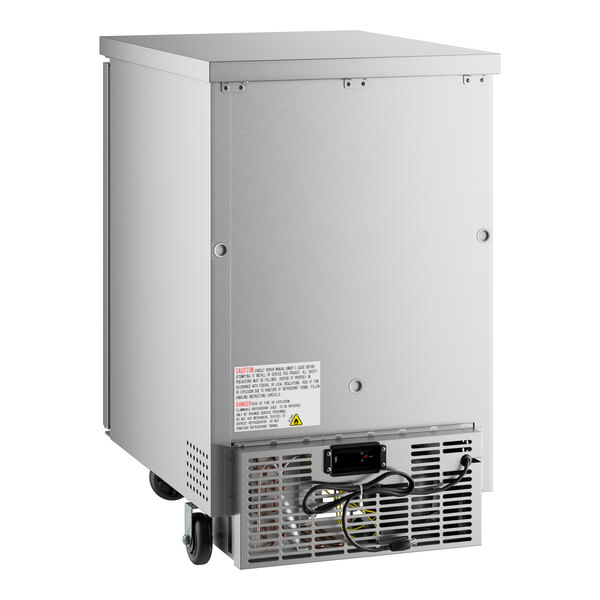

Optimize the space behind your bar by adding refrigerated storage with this Avantco UBB-1-HC-S 23" undercounter back bar refrigerator.

Conveniently keep beverages both cold and close at hand for immediate service to customers! With this undercounter back bar refrigerator, you can do just that. Featuring a sturdy epoxy-covered shelf and thick polyurethane insulation, the unit is engineered to make your job faster and easier. Plus, it even uses an eco-friendly refrigerant, so you can help preserve the environment while serving crisp beers, ales, and ciders all year-long!

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Convenient Capacity

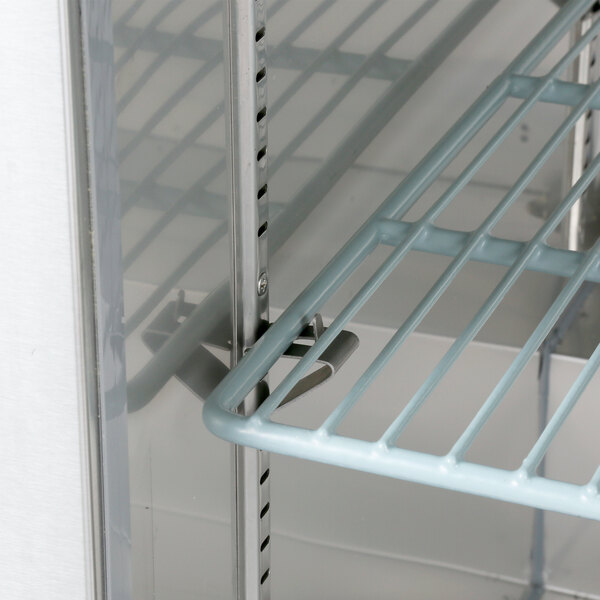

Providing 7.8 cu. ft. of interior storage space, the unit houses one epoxy-coated shelf that accommodates up to 90 lb. This shelf is perfect for storing and organizing drinks for your bar service, from bottles of ale to bottles of cider.

Structural Durability

The interior, made of strong 304 type stainless steel, won't rust or corrode with the inevitable spill or leak. Plus, for overall durability, the unit's exterior is also made with sleek stainless steel and is topped with a type 304 stainless steel surface.

Eco-Friendly Refrigerant

This back bar refrigerator ensures optimal performance by operating with a 1/6 hp refrigeration system that circulates environmentally-friendly R290 hydrocarbon refrigerant to maintain temperatures from 33 - 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

Insulated Cabinet

This unit features foamed-in-place polyurethane insulation, which provides the refrigerator with additional structural integrity and ensures that all beverages held in the unit remain at cool temperatures. As a result, the refreshing supply is always ready for immediate service to customers!

Customer Q&A Ask a Question

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Can this unit be built into cabinetry?
It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?
Make sure that you are loading it properly, and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
Can I install this unit directly on the floor without casters?
Because of the location of the compressor, this unit must be installed on the included casters.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

How to Program a Carel PJEZ Controller on an Avantco Refrigerator

Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.

Here's some basic settings you can make to your Avantco refrigerator in your restaurant. If you want to adjust the temperature, you hold set for one second and you'll see your low temperature limit. This unit is set to shut off at 33 degrees. If you want to have it shut off at a warmer temperature you can adjust it up. But it will not go below 33. You see when I get to 33 it just cycles back up to the top of the temperature range. Take this unit back down to 33 degrees. Press set to save it and you're back to your home screen.

Copy and paste the embed code above.
Overall Dimensions:
  • Width: 23 1/2 Inches
  • Depth: 30 1/4 Inches
  • Height: 39 3/4 Inches
  • Capacity: 7.8 cu. ft.
Interior Dimensions:
  • Interior Width: 18 1/8 Inches
  • Interior Depth: 28 5/8 Inches
  • Interior Height: 29 1/2 Inches
