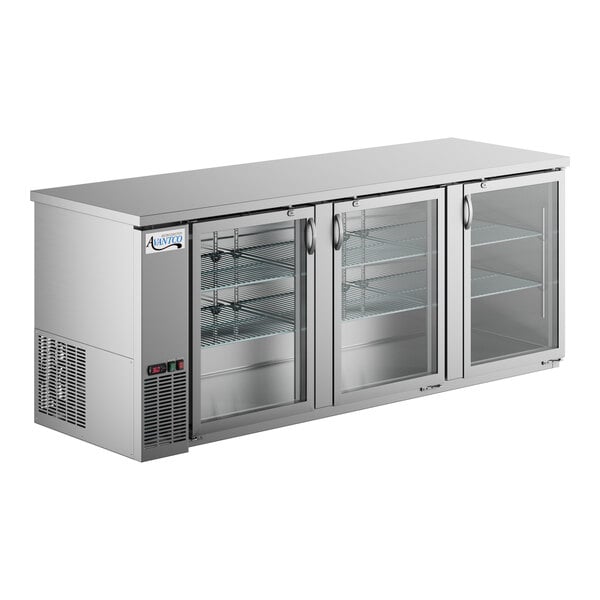

Avantco UBB-4G-HC 90" Stainless Steel Counter Height Glass Door Back Bar Refrigerator with LED Lighting
Item number 178ubb4ghcs
Works WithView All Items
Apply, opens link in this tabEarn up to $58.17 back (5,817 points)
(5,817 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.
Quick Shipping
Usually ships in 1 business day
Product Overview
- 1 1/2" thick stainless steel countertop with stainless steel interior and exterior
- LED interior lighting
- Six adjustable epoxy-coated steel shelves can be removed to fit four 1/2 size kegs
- Preprogrammed digital temperature controls and auto-defrost function for easy setup and maintenance
- Uses R290 refrigerant; 1/4 hp; 115V
UPC Code:400013157386
Works With
View All ItemsOptimize the space behind your bar by adding refrigerated storage with this Avantco UBB-4G-HC 90" stainless steel counter height glass door back bar refrigerator.
Help streamline bar service with this back bar refrigerator! Providing 32.4 cu. ft. of refrigerated storage, the unit ensures excellent product visibility with glass doors and bright, LED lighting. From individually bottled beverages to 1/2 kegs, product is easy to keep cool and serve in record time with this refrigerator right behind the bar! Plus, you can rest assured that you're doing the planet a favor, as the unit circulates R290 refrigerant while keeping the cabinet within the optimal temperature range at all times. For long-lasting quality assurance and peace of mind, this unit also comes with a 2 year Parts and Labor Warranty. This unit even comes with adjustable feet for simple, convenient leveling.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
Energy-Efficient
This back bar refrigerator ensures optimal performance by operating with a 1/4 hp refrigeration system that circulates R290 hydrocarbon refrigerant to maintain temperatures from 33 to 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an energy-efficient choice for your business.

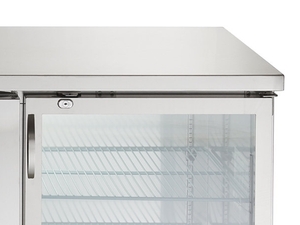

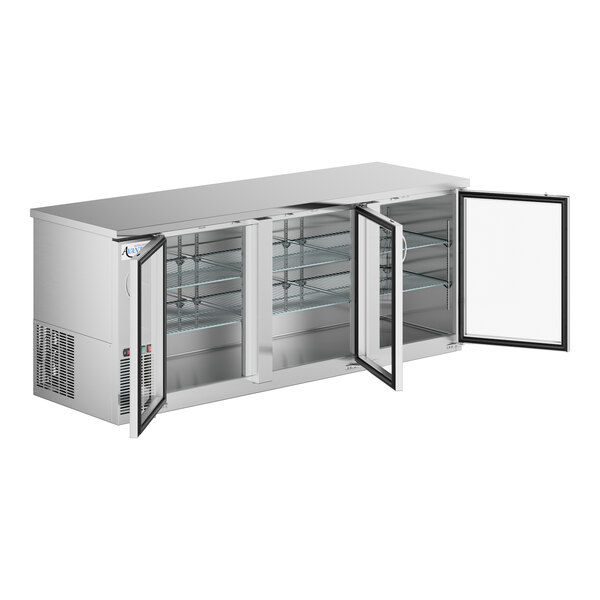

Product Visibility
The interior, made of strong 201 type stainless steel, is accessible through glass doors. Because they're made of glass, the doors provide excellent product visibility, enabling you to easily view your current drink or ingredient selection for efficient drink preparation. Plus, bright LED lighting illuminates the interior, so it's easy to retrieve beverages, even in dark night clubs and bars.

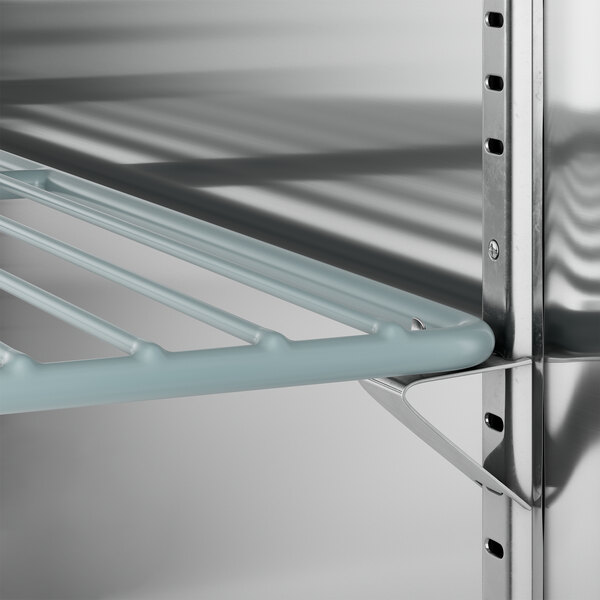

Steel Shelves
Providing 32.4 cu. ft. of interior storage space, the unit comes with six shelves that accommodate up to 88 lb. each or (4) 1/2 kegs total. The epoxy-coated steel shelves are perfect for storing and organizing heavy bulk ingredients for your bar service, from bottles of ale to bottles of cider. Plus, since the unit is rated to safely store food products, it provides versatility and helps you maximize the space you have available.

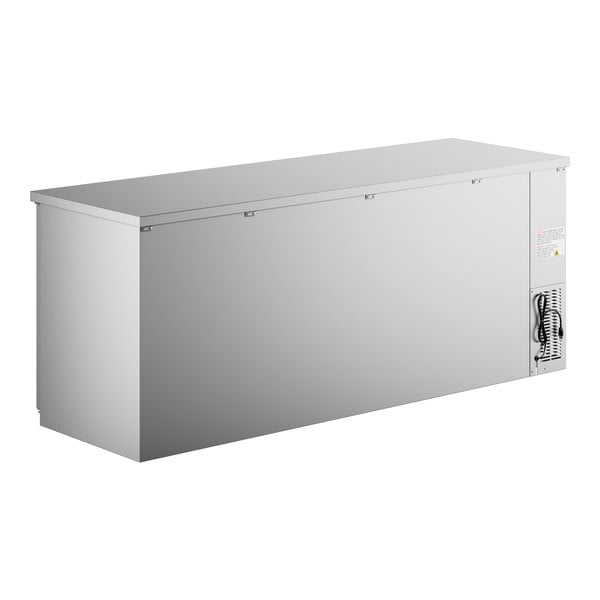

Stainless Steel Exterior

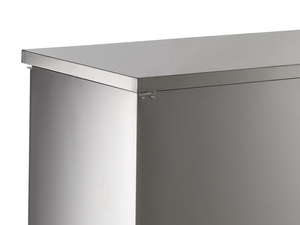

For durability in high-traffic, commercial operations, the unit's exterior is made with stainless steel and is topped with a stainless steel surface.
Foamed-in-Place Insulation
The foamed-in-place polyurethane insulation provides the refrigerator with additional structural integrity and ensures that all products held in the unit remain at cool temperatures.
Easy to Operate
Easy to Operate
Delivering ease of use and maintenance, the refrigerator is easy to adjust with a digital temperature controller and features automatic defrost. Overall, the unit requires a 115V electrical connection for operation.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Can I plug in this unit for use right away after receiving it?
No. It is strongly recommended to allow this unit to sit in its normal operating position for at least 24 hours before plugging it in for use. This allows the compressor oil and refrigerant time to settle from being displaced during transport, preventing damage to the unit that may void its warranty.
Can this unit be built into cabinetry?
It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
I'd like to install casters on this unit. Do I need 8 casters?
Yes, this item requires 8 casters. For convenience, we offer a kit with all of the casters and the M8-1.25 mm x 20 mm bolts required to mount them. See the Works With section.
What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?
Make sure that you are loading it properly and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
Compare to Other Products
Price
Width
Depth
Height
Voltage
Capacity
Exterior Finish
Horsepower
Number of Doors
Number of Kegs
Overall Dimensions:
- Width:
- 90 1/4 Inches
- Depth:
- 29 1/8 Inches
- Height:
- 36 1/4 Inches
- Capacity:
- 32.4 cu. ft.
Interior Dimensions:
- Width:
- 77 3/4 Inches
- Depth:
- 21 7/8 Inches
- Height:
- 30 1/2 Inches
Please check the Compatibility resource for information on items that work with this product.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
Need Parts & Accessories?
Shop replacement parts and accessories for this item today!
Resources and Downloads
Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Compatibility
Opens in new tab
Buying Guide
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Note: Avantco Refrigeration equipment with a labor warranty purchased prior to May 1st, 2024, is warranted for 2-year parts & labor / 5-year compressor. Any equipment installed outdoors, in a temporary structure, food truck, other mobile application, or in a residence or home-based business is covered by a 30-day replacement warranty through the place of purchase.
