Other Available Styles:

  • 1 1/2" thick stainless steel countertop with stainless steel interior and black coated steel exterior
  • LED interior lighting
  • Six adjustable epoxy-coated steel shelves can be removed to fit four 1/2 kegs
  • Preprogrammed digital temperature controls featuring auto-defrost function for easy setup and maintenance
  • 115V; 1/4 hp; R290 refrigerant

Keep your bar stocked and ready to go with the Avantco UBB-4G-HC 90" black glass door back bar cooler.

The Avantco glass door stainless steel back bar cooler is designed to be used at any restaurant, bar, or club. This back bar cooler boasts a 29 1/8" deep footprint, giving you plenty of room to efficiently store beer, drink mixes, soda, and garnishes. This refrigerator has three self-closing swing doors, and its six epoxy-coated wire shelves are easily adjustable. Additionally, it can serve as a stainless steel countertop for added prep space.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.

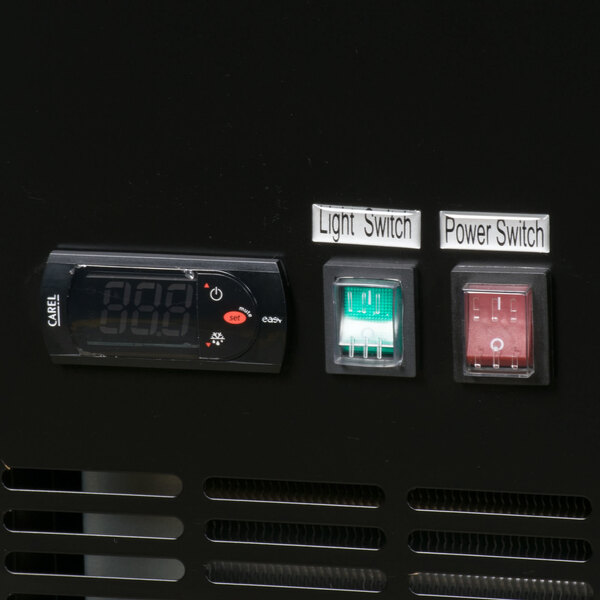

Digital Temperature Display

The back bar cooler's easy-to-read digital display makes it extremely simple to monitor the unit's temperature.

Stainless Steel Countertop

The stainless steel top of this cooler can double as a garnish cutting and drink preparation space.

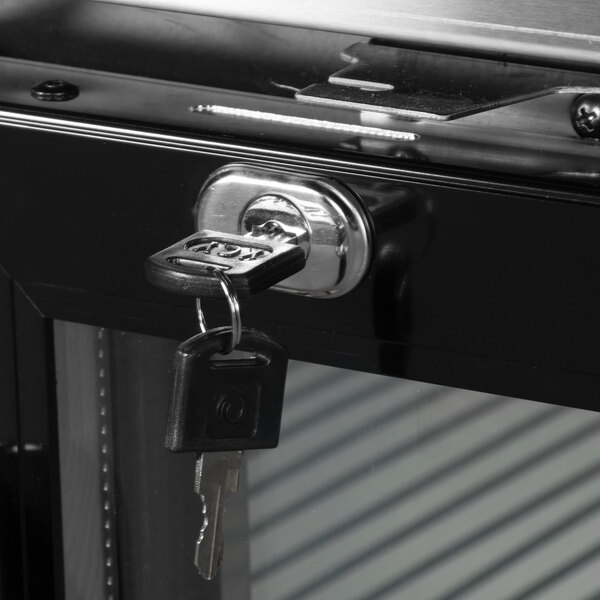

Lockable Doors

Lock the doors of your cooler at the end of a shift to help protect your delicious brews from theft.

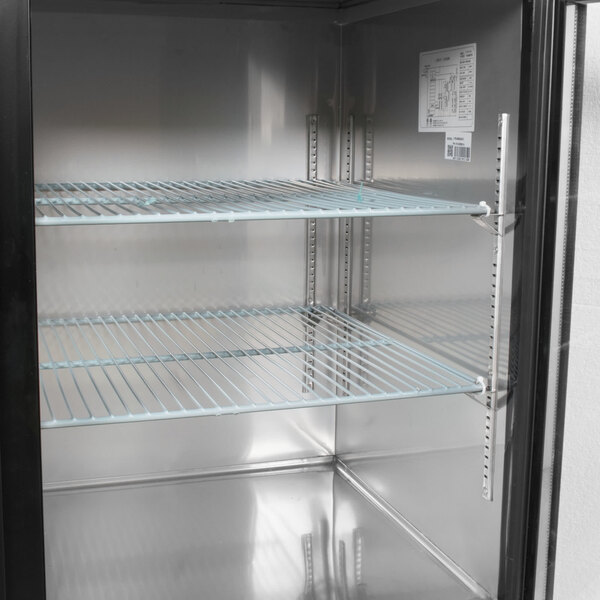

Ample Storage

This back bar cooler boasts a 32.4 cu. ft. interior that comfortably houses up to (4) 1/2 kegs, while 6 adjustable epoxy-coated wire shelves allow you to customize the configuration of your unit. And since the doors are made of glass, you can easily view your current drink or ingredient selection for efficient drink preparation.

Eco-Friendly Refrigeration

This back bar refrigerator ensures optimal performance by operating with a 1/4 hp refrigeration system that circulates environmentally-friendly R290 hydrocarbon refrigerant to maintain temperatures from 33 to 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

Energy Efficient LED Lighting

This refrigerator has interior LED lighting to maximize product visibility. Even if your bar area is dimly lit, bartenders and servers will have no trouble finding the drinks and garnishes they need.

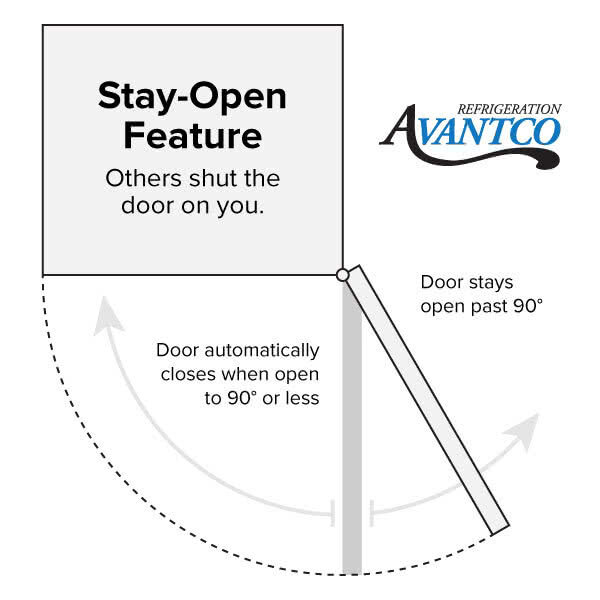

Self-Closing Doors with Stay Open Feature

The doors of this unit stay open when they are opened past 90 degrees. If they are only opened less than 90 degrees, they automatically swing closed to help save energy! This not only helps your employees easily load product without the door closing on them, but also helps make sure the door closes properly when quickly reaching into the unit without fully opening it. The tight seal prevents potential energy loss.

Customer Q&A Ask a Question

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Can this unit be built into cabinetry?
It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
I'd like to install casters on this unit. Do I need 8 casters?
Yes, this item requires 8 casters. For convenience, we offer a kit with all of the casters and the M8-1.25mm x 20mm bolts required to mount them. See the Items You May Also Need section.
What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?
Make sure that you are loading it properly, and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

Watch More Videos

Avantco Back Bar Coolers

Avantco back bar coolers provide the added beverage storage space you need to ensure that your guests never go thirsty! For additional details and to learn about the different styles available, check out our short video.

How to Program a Carel PJEZ Controller on an Avantco Refrigerator

Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.

Make sure your bartenders can easily access your most popular drinks with an Avantco Refrigeration back bar cooler! These back bar coolers come in 48", 60", and 72" widths so you can find the one that best fits the space you have available, and you can choose between a glass door and solid door unit. The 48" and 60" models are both built with two large sections, while the 72" units are made with three sections to provide unmatched interior capacity. Depending on the model, these back bar refrigerators are built to accommodate two or three kegs, hundreds of bottles, or over a thousand cans so you never run out of drinks. These coolers are all made with heavy duty steel exteriors covered in a wear-resistant black coating to ensure long-lasting durability. In addition, their interiors are all made of type 304 stainless steel to resist corrosion and spills. And the stainless steel top fits smoothly underneath your bar or functions as a countertop. Every Avantco back bar refrigerator comes with a high-powered, side-mount compressor that circulates R-134a refrigerant throughout the body, while the walls are packed with foamed-in-place, high-density polyurethane insulation to help maintain temperatures between 33 and 41 degrees Fahrenheit. A lock and key are included to make sure your stock stays safe during off hours. In order to make sure that your bartenders can easily pick out cans and bottles during busy hours, each section of these refrigerators comes with four shelves for excellent organization. All Avantco back bar coolers are ETL listed and come with a standard NEMA 5-15P plug. For more equipment options to fill out your bar, take a look at our selections of underbar ice bins, underbar sinks, and glass chillers. Thanks for watching, and if you have any questions, please click on our Live Chat button.

Copy and paste the embed code above.
Here's some basic settings you can make to your Avantco refrigerator in your restaurant. If you want to adjust the temperature, you hold set for one second and you'll see your low temperature limit. This unit is set to shut off at 33 degrees. If you want to have it shut off at a warmer temperature you can adjust it up. But it will not go below 33. You see when I get to 33 it just cycles back up to the top of the temperature range. Take this unit back down to 33 degrees. Press set to save it and you're back to your home screen.

Copy and paste the embed code above.

Compare to Other Products

Overall Dimensions:
  • Width: 90 1/4 Inches
  • Depth: 27 3/4 Inches
  • Height: 35 5/8 Inches
  • Capacity: 32.4 cu. ft.
Interior Dimensions:
  • Width: 77 3/4 Inches
  • Depth: 22 1/2 Inches
  • Height: 30 1/2 Inches
