$1,949.00/Each

Ships free with Plus

Other Available Styles:

  • Durable, black exterior with a sliding glass door
  • Narrow design great for placement behind the bar to increase service efficiency
  • Four adjustable epoxy-coated steel shelves can be removed to fit two 1/2 kegs
  • Glass door and bright, LED lighting ensure easy product visibility and retrieval
  • 115V; 1/5 hp; R290 refrigerant
Shipping:

You May Also Need

How to Program a Carel PJEZ Controller on an Avantco Refrigerator

How to Program a Carel PJEZ Controller on an Avantco Refrigerator

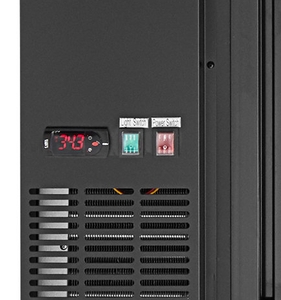

Here's some basic settings you can make to your Avantco refrigerator in your restaurant. If you want to adjust the temperature, you hold set for one second and you'll see your low temperature limit. This unit is set to shut off at 33 degrees. If you want to have it shut off at a warmer temperature you can adjust it up. But it will not go below 33. You see when I get to 33 it just cycles back up to the top of the temperature range. Take this unit back down to 33 degrees. Press set to save it and you're back to your home screen.

Copy and paste the embed code above.

Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.

Specs
Width 61 Inches
Depth 24 1/2 Inches
Height 36 Inches
Phase 1
Voltage 115
Color Black
Door Style Sliding
Door Type Glass
Exterior Finish Black
Features Food Rated

LED Lighting
Horsepower 1/5 HP
Number of Doors 2 Door
Number of Kegs 2
Number of Shelves 4
Refrigerant Type R-290
Temperature Range 33 - 40 Degrees F
Top Type Counter Height

Customer questions about this product

I haven’t heard of R-290, R-600a, or R-513a refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) is an HFO (hydrofluoroolefin) refrigerant. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Can this unit be built into cabinetry?

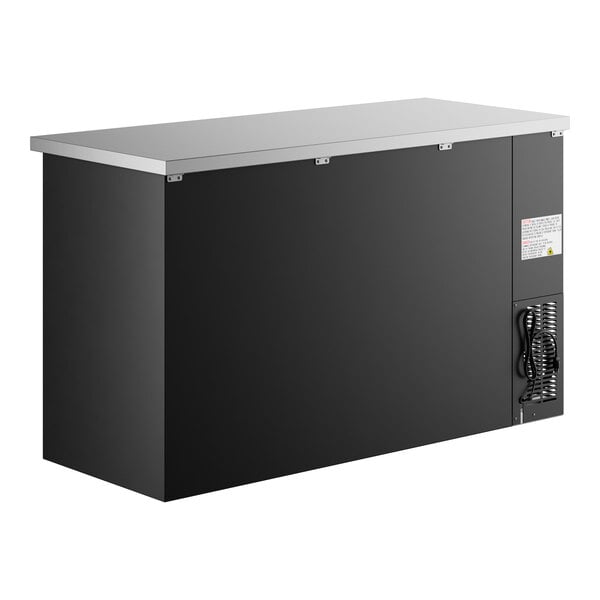

It should not be built into cabinetry. This unit is rear and side breathing, and for proper ventilation it requires 3" of clearance behind it and on the sides.
I'd like to install casters on this unit. Do I need 6 casters?
Yes, this item requires 6 casters. For convenience, we offer a kit with all of the casters and the M8-1.25mm x 20mm bolts required to mount them. See the Items You May Also Need section.
What if my Avantco cooler doesn’t seem to be getting cold enough throughout the cabinet?
Make sure that you are loading it properly, and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
My Avantco cooler’s compressor doesn’t kick on until 47 degrees, what should I do?
Before contacting Avantco for warranty service, please try resetting the temperature differential using these instructions.
Ask your own question!

Details

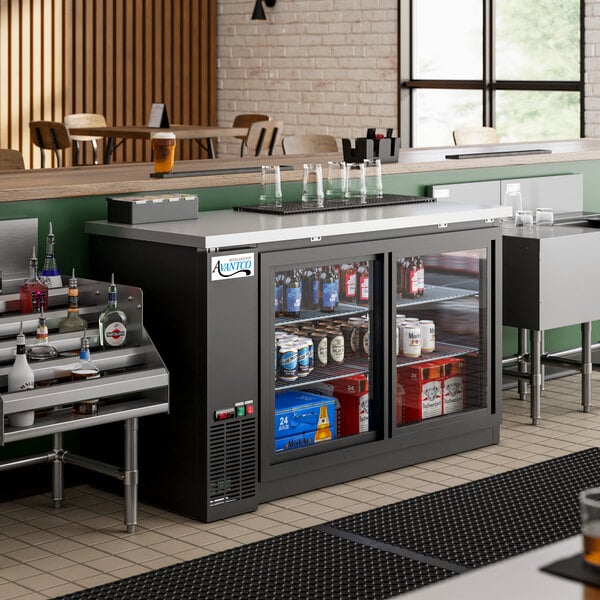

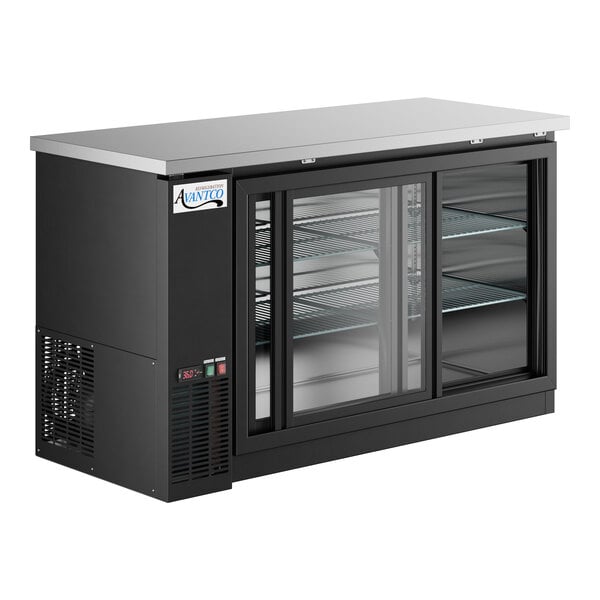

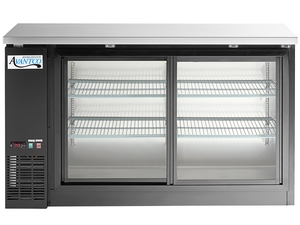

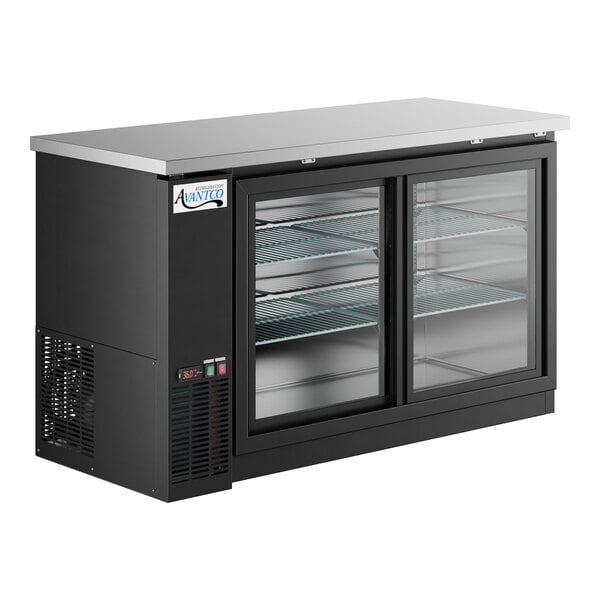

Optimize the space behind your bar by adding refrigerated storage with this Avantco UBB-60S-HC 60" black counter height narrow sliding glass door back bar refrigerator with LED lighting! Conveniently store a variety of bottles behind the bar so that they're ready to serve at all times, and gain 17.3 cu. ft. of refrigerated storage space for your most popular brews, ales, ciders, and other beverages. Its narrow design makes it more compact than similar units, making it ideal for operations that are tight on space.

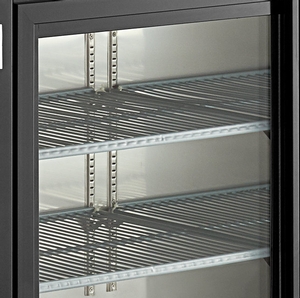

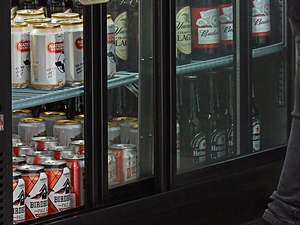

Providing 17.3 cu. ft. of interior storage space, the unit fits up to (2) 1/2 kegs and house (4) 23 5/8" x 18 1/8" shelves that each accommodate up to 90 lb. The epoxy-coated steel shelves in this food-rated unit are perfect for storing and organizing heavy bulk ingredients for your bar service, from bottles of ale and beer to fresh fruit for mixed drinks and garnishes. The interior, made of strong 304 type stainless steel, is accessible through two sliding glass doors, taking up less precious space behind the bar and making it easy to grab drinks and garnishes quickly. This unit features easy-to-use digital temperature controls to make setting and changing the temperature simple. In addition, this refrigerator has interior LED lighting to maximize product visibility. Even if your bar area is dimly lit, bartenders and servers will have no trouble finding the drinks and garnishes they need. For overall durability, the unit's exterior is made with black coated steel and is topped with a type 304 stainless steel surface. The stainless steel top of this cooler can double as a garnish cutting and drink preparation space.

This back bar refrigerator ensures optimal performance by operating with a 1/4 hp refrigeration system that circulates environmentally-friendly R290 hydrocarbon refrigerant to maintain temperatures from 33 to 40 degrees Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. The foamed-in-place polyurethane insulation helps to maintain internal temperatures and adds rigidity to the body's structure. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 61"
Depth: 24 1/2"
Height: 36"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents: Prop 65 Warning

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads

Manual Manual Avantco Back Bar Cooler Buying Guide Buying Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
