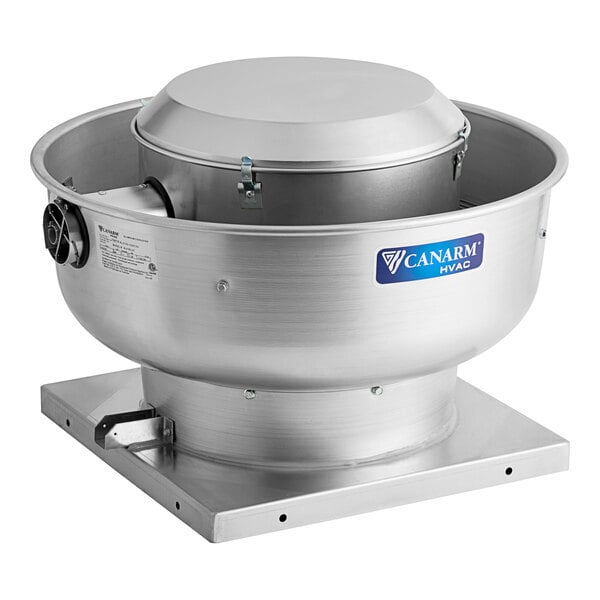

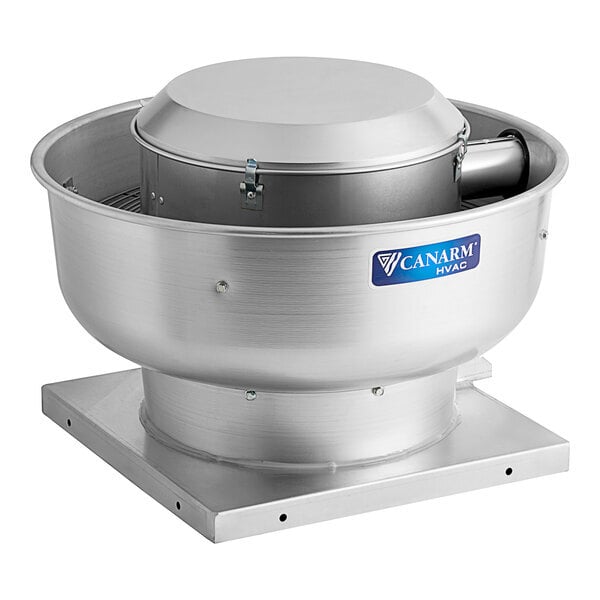

Scratch and Dent Canarm 10 1/2" Variable Speed Capable Upblast Direct Drive Aluminum Exhaust Fan ALX105-UD013V - 950 CFM, 1,650 RPM, 120/240V, 1 Phase
Item number 664l105u013vMFR number ALX105-UD013V
Works With
Condition:Outlet
Quick Shipping
Usually ships in 1 business day
Product Overview
- Supports variable-speed operation with a select remote 0–10V potentiometer (sold separately)
- Durable spun aluminum construction does not chip, rust, or peel
- 10 1/2" non-overloading wheel provides efficient airflow
- Can be wall-mounted or installed on your roof top
- Powerful 1/8 hp motor produces up to 950 CFM; 120/240V, 1 phase
Works With
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 47.8 lb.
- Width
- 25 Inches
- Depth
- 19 Inches
- Height
- 18 Inches
- Wheel Diameter
- 10 1/2 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120/240 Volts
- Color
- Silver
- Curb Size
- 19 Inches
- Drive Type
- Direct Drive
- Horsepower
- 1/8 hp
- Installation Type
- Roof Top Mounted Wall Mounted
- Material
- Aluminum
- Max CFM
- 950 CFM
- Min CFM
- 300 CFM
- Motor Type
- Direct Drive
- Plug Type
- Hardwire
- RPM
- 1,650 RPM
- Speeds
- Variable Capable
- Style
- Fixed Upblast
- Type
- Exhaust Fans Upblast Exhaust Fans

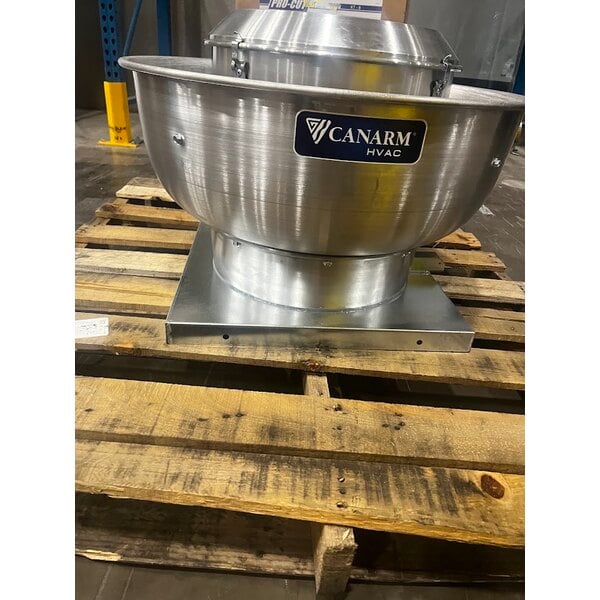

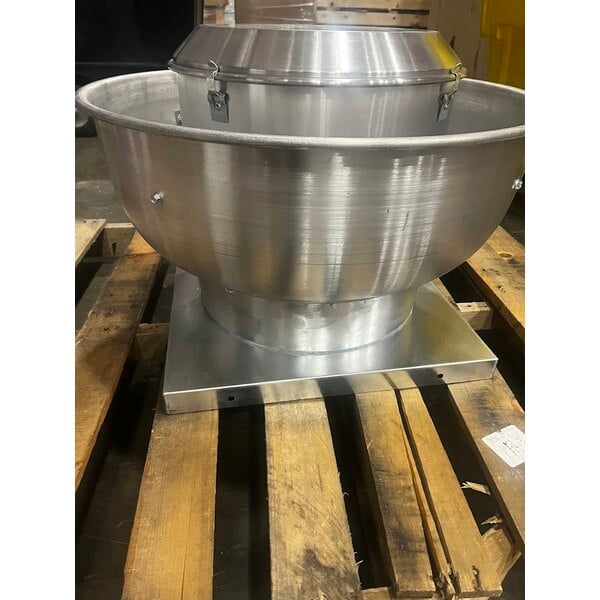

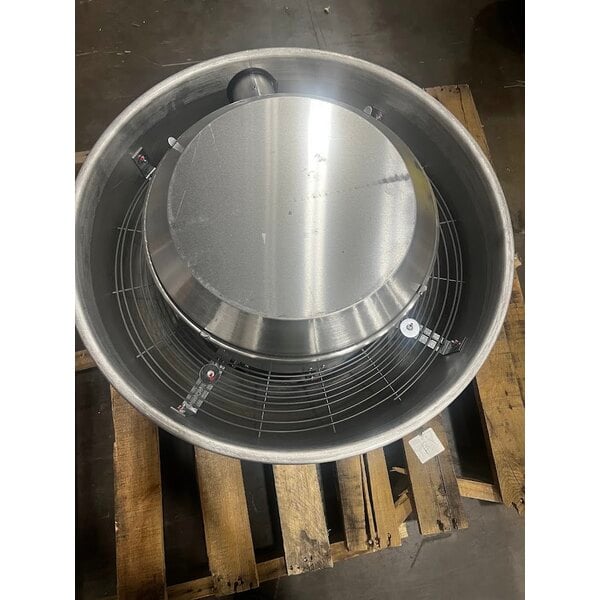

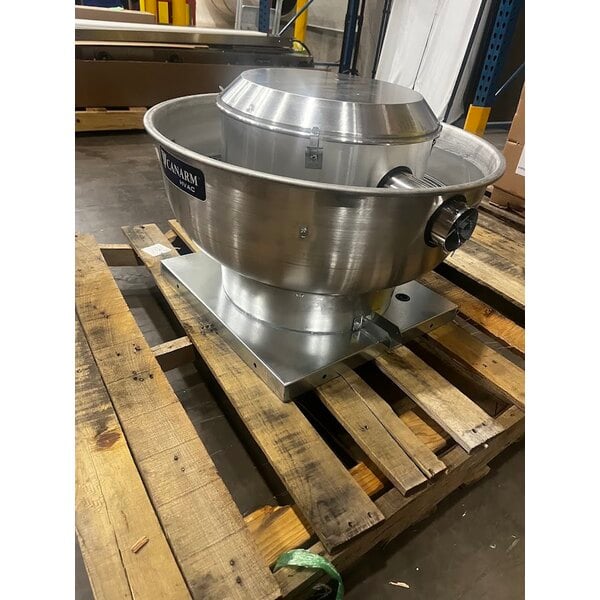

Scratch and Dent Canarm ALX105-UD013V Details
- New; never used
- Out of original packaging

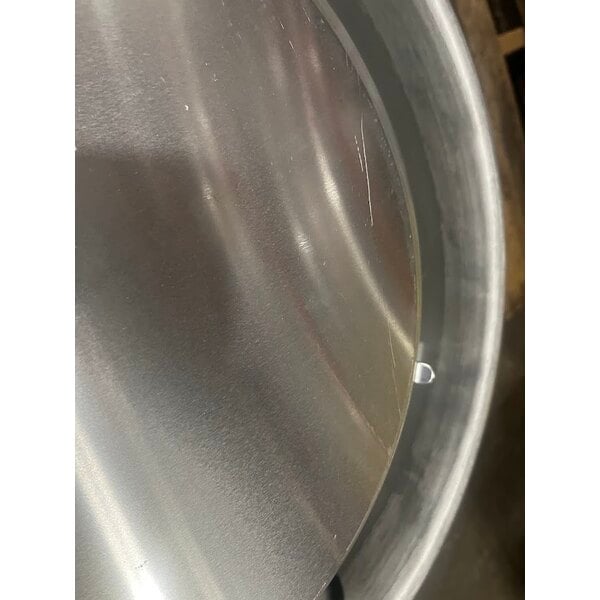

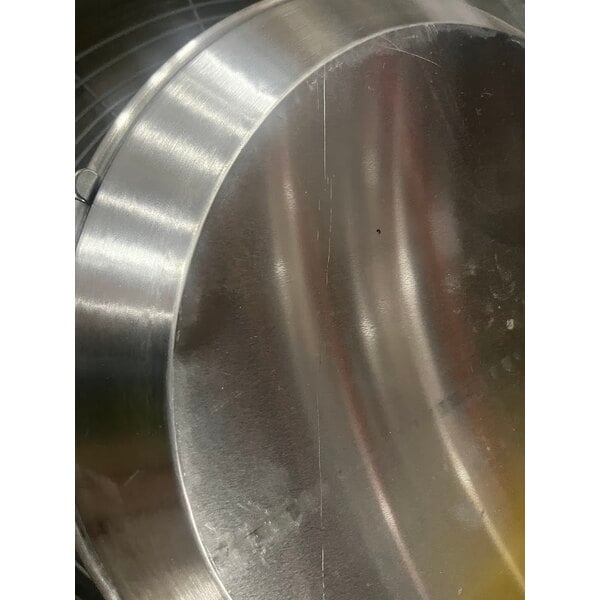

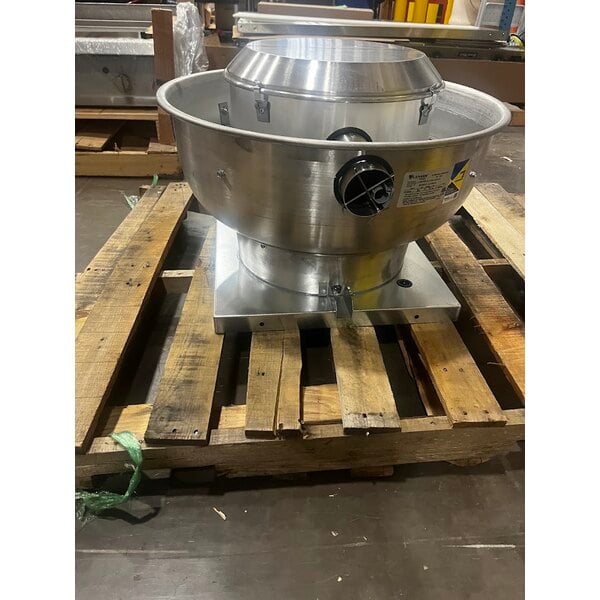

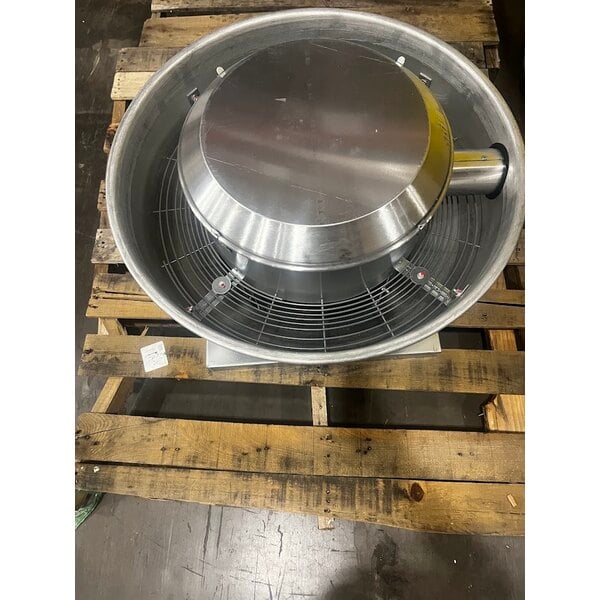

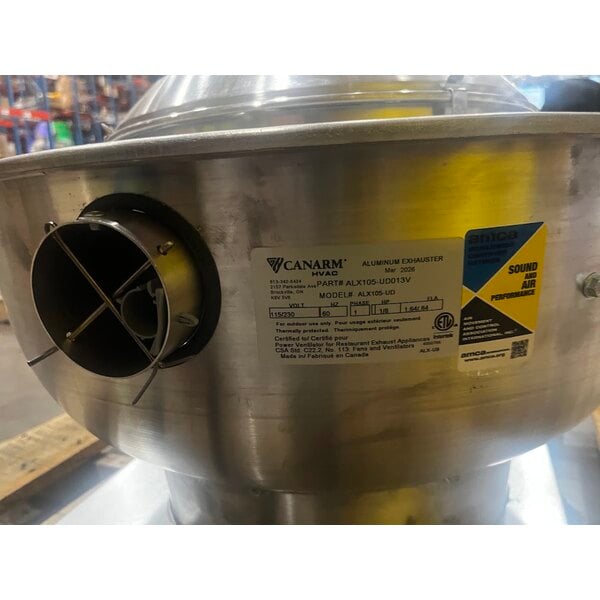

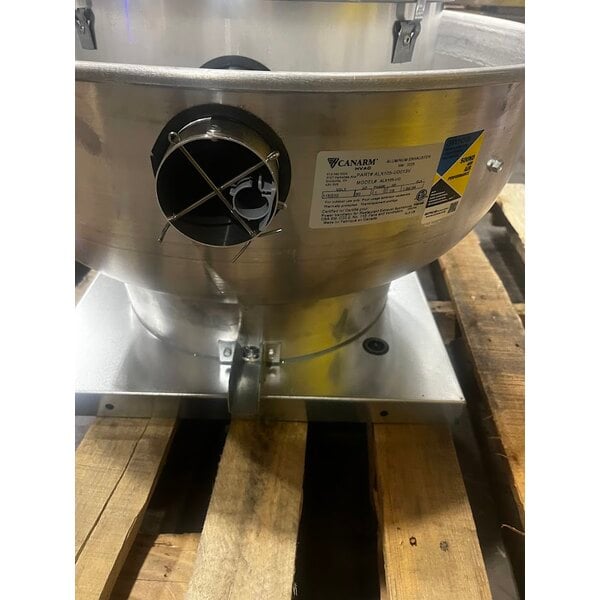

- There are scratches on the top of the unit
Enhance the air quality in your warehouse, kitchen, or commercial facility with this Canarm 10 1/2" variable speed capable upblast direct drive aluminum exhaust fan! This versatile unit works to exhaust air and provide ventilation in your establishment. The variable speed motor can easily be adjusted by using select remote 0-10V potentiometers (sold separately). The exhaust fan can be controlled up to 50' away when used with a remote potentiometer, providing you with convenient access even when you are not near the unit.
This rugged unit mounts directly to the wall, or it can be installed on your rooftop. For rooftop applications, a 15" opening is required. This exhaust fan features a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use in industrial settings, commercial kitchen ventilation, or other foodservice environments. This unit boasts a 1/8 hp motor that delivers 300 CFM to 950 CFM. Great for use in establishments producing grease-laden vapors or any application that requires reliable and efficient airflow, the 10 1/2" aluminum wheel is inclined backward to efficiently exhaust air and is non-overloading to provide consistent, safe use. For fast, tool-free access to the motor and other internal components, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance. Plus, it comes with an integrated grease drain that works to direct grease away from the fan base.
This unit requires a 120/240V, 1 phase electrical connection for operation. It must be hardwired since a cord and plug are not included. To ensure electrical components remain outside of the airstream, it has a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire. This unit is intended for use in accordance with NFPA 96 guidelines. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 25"
Depth: 19"
Height: 18"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
