$13,420.00/Each

This product is no longer available. We've left this page up for reference only.

Usually Ships in 2-4 Weeks from manufacturer

Lead times vary based on manufacturer stockEstimated shipping time tooltip

Product Overview

  • Natural gas, 30,000 BTU
  • 16 gallon capacity; countertop design won't use valuable floor space
  • Satin finish 10 gauge stainless steel pan with a polished interior and coved corners
  • Tilting mechanism for easy emptying; tilt handle with heat proof knob
  • Tilt lock holds pan in upright position
  • Concealed mounting lugs for mounting to the counter
  • Integrally mounted controls; temperature range of 100-450 degrees Fahrenheit
  • 115V
UPC Code:400011990114

Blodgett BTT-16G NAT Specs

Quantity
1/Each
Shipping Weight
250 lb.
Width
29 1/4 Inches
Depth
29 7/8 Inches
Height
40 3/4 Inches
Cooking Surface Depth
8 3/4 Inches
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Capacity
16 Gallons
Cover Type
Hinged
Features
Made in America

Manual Tilt

NSF Listed
Gas Inlet Size
1/2 Inches
Installation Type
Countertop
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Style
Tilting
Temperature Range
100 - 450 Degrees F
Total BTU
30,000 BTU
Type
Skillets

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.

Ask your own question!

Blodgett BTT-16G NAT Details

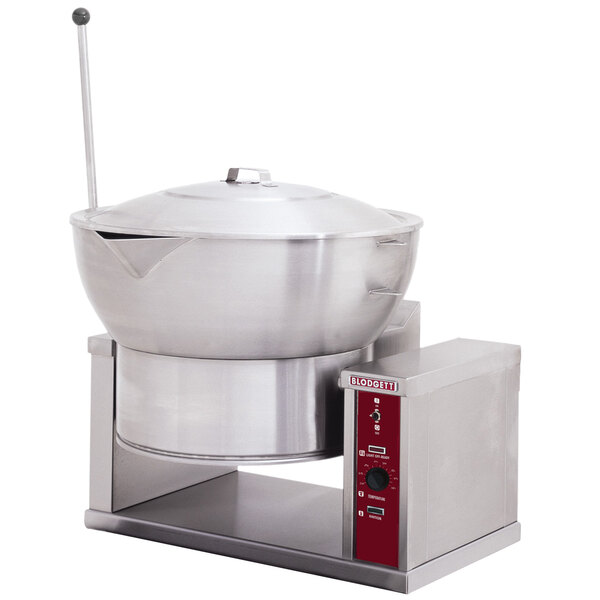

Cook large portions of ground meats, sauces, vegetables, and more with the Blodgett BTT-16G natural gas 16 gallon round countertop braising pan / tilt skillet! This unit features a smaller countertop design that is ideal for kitchens where you don't have the space for a large floor model but still need the high-efficiency, high-output cooking power of a tilting braising pan. It is small enough to fit in most kitchens, but still offers a large 16 gallon capacity that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges.

This unit's pan is made of satin finish 10 gauge stainless steel with a polished interior surface and coved corners for easy cleanout. It has a 3/8" thick stainless steel clad bottom plate, and the sides of the round pan slope outward for easy access to the cooking plate. Plus, the pouring spout directs the food into your hotel pans or food storage containers when you tilt the pan for emptying.

Tilting this braising pan is safe and easy since it has a tilt handle with a heat proof knob to prevent employee injuries. Plus, the tilt lock control keeps the pan in the upright position when you are cooking.

Integrally-mounted controls, located on the front of the unit in the stainless steel control housing for easy access, offer a 100-450 degrees Fahrenheit temperature range. In addition, the high-temperature cut-off, cook indicator light, thermostat, power switch, and ignition light all make it easy for your employees to operate this tilt skillet.

This unit comes with concealed mounting lugs to secure it to the counter. 30,000 BTU; a 115V electrical connection is required for operation.

Overall Dimensions:
Left to Right: 29 1/4"
Front to Back: 29 7/8"
Pan Depth: 8 3/4"
Height (with handle): 40 3/4"
Capacity: 16 gallons

  • CSA Design Cert

    CSA Design Cert

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.

  • 1/2" Gas Connection

    1/2" Gas Connection

    This unit comes with a 1/2" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • CSA Blue Flame

    CSA Blue Flame

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.

  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for
Blodgett BTT-16G NAT

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
