Product Overview

  • 40 gallon capacity
  • Manual tilt mechanism
  • Spring-assisted cover with cool-touch handle
  • Pouring spout with removable strainer
  • Includes receiving pan support
  • 50-425 degree Fahrenheit temperature range; solid state controls
  • Stainless steel legs with adjustable flanged feet
  • Ships ready to connect to 208V, 3 phase but can be field converted to other configurations
UPC Code:400012126154

Vulcan VE40 Specs

Quantity
1/Each
Shipping Weight
572 lb.
Width
46 Inches
Depth
35 1/2 Inches
Height
40 1/2 Inches
Cooking Surface Width
39 Inches
Cooking Surface Depth
23 Inches
Hertz
50/60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
12 Kilowatts
Amps - Per Line
25 - 39
Capacity
40 Gallons
Cover Type
Hinged
Features
Made in America  Manual Tilt
Installation Type
Floor Model
Plug Type
Hardwire
Power Type
Electric
Style
Tilting
Temperature Range
50 - 425 Degrees F
Type
Skillets

Vulcan VE40 Details

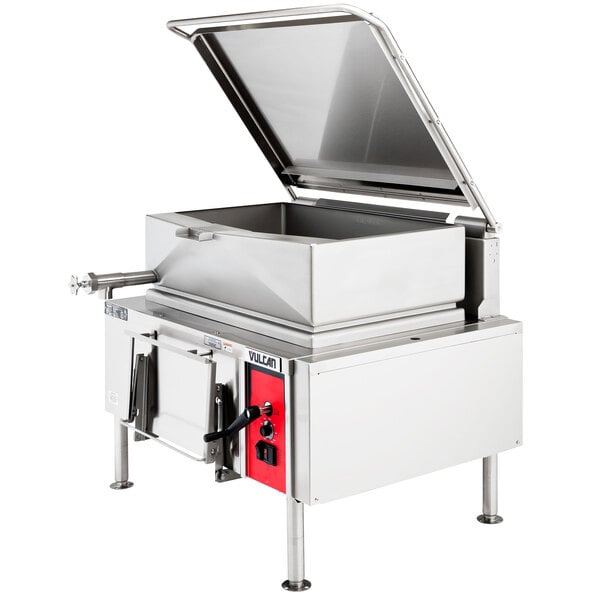

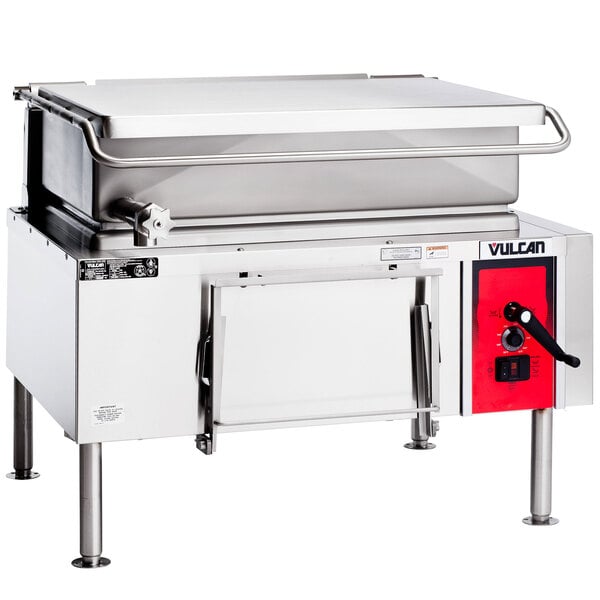

Cook large portions of ground meats, sauces, vegetables, and more with the Vulcan VE-40 40 gallon electric braising pan / tilt skillet! This unit features a high-efficiency, high-output, 40 gallon design that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges.

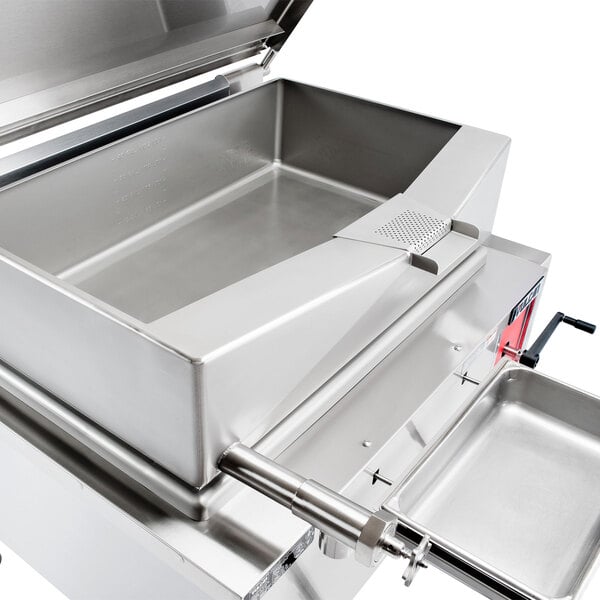

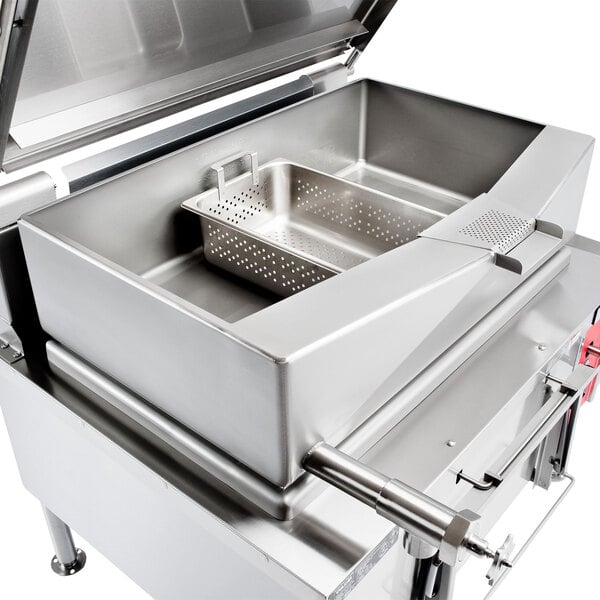

This unit's pan is made of stainless steel with a polished interior surface and coved corners for easy cleanout. Plus, it has embossed gallon markings on the sides for easy measuring. The 12 kW flat firebar elements are mounted to the outside of the steel bottom plate for even heat distribution and a spring-assisted hinged stainless steel cover is included to help contain heat and steam. The lid can even stop in place for vented cooking and has a wrap-around cool-touch handle for safe use. In addition, a side mounted faucet bracket is included to make it easier to mount your choice of a faucet (sold separately) for efficient filling of the braising pan.

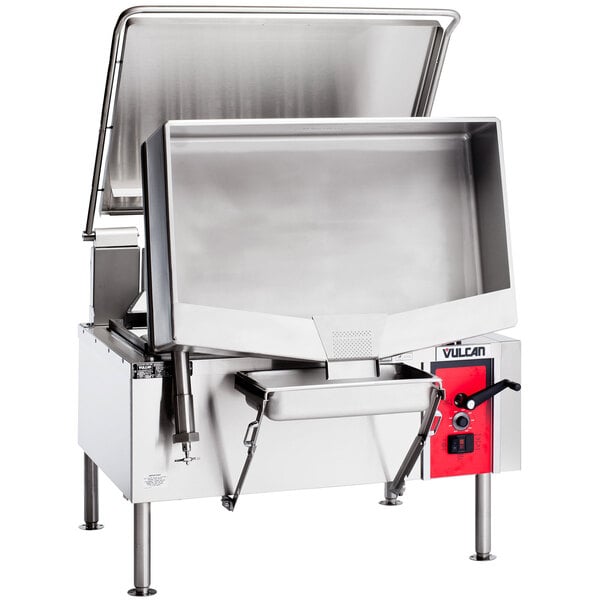

Tilting this braising pan is safe and easy since it has an anti-jam pan lifting mechanism with a removable crank handle. The hand crank tilting mechanism lets you slowly tilt this braising pan and maintain complete control while emptying the skillet's contents. It tilts completely with approximately 30 revolutions and the pouring spout with a removable strainer directs food into your hotel pans or food storage containers placed on the included receiving pan supports.

Integrally-mounted solid state temperature controls, located on the front of the unit in the control housing for easy access, offer a 50-425 degree Fahrenheit range. This unit comes with tubular stainless steel legs with adjustable flanged feet to secure the unit safely to the floor. This unit ships wired for a 208V, 3 phase, 12 kW electrical connection but can be field converted to 208V/1 phase.

Overall Dimensions:
Left to Right: 46"
Front to Back: 35 1/2"
Height: 40 1/2"
Capacity: 40 gallons
Cooking Surface: 39" x 23"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VE40 today!

Resources and Downloads for
Vulcan VE40

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
