Fuel Type: Liquid Propane

Installation Services

Check if installation is currently available for your area.

Usually Ships in 1-2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 40 gallon capacity
  • Manual tilt mechanism
  • Spring-assisted cover with cool-touch handle
  • Pouring spout with removable strainer
  • Includes receiving pan support
  • 50-425 degree Fahrenheit temperature range; solid state controls
  • Stainless steel legs with adjustable flanged feet
  • Liquid propane; 120,000 BTU
UPC Code:400012125706

Vulcan VG40 LP Specs

Quantity
1/Each
Shipping Weight
552 lb.
Width
46 Inches
Depth
35 1/2 Inches
Height
40 1/2 Inches
Cooking Surface Width
39 Inches
Cooking Surface Depth
23 Inches
Amps
9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Capacity
40 Gallons
Cover Type
Hinged
Features
Made in America  Manual Tilt
Gas Connection Size
3/4 Inches
Installation Type
Floor Model
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Style
Tilting
Temperature Range
50 - 425 Degrees F
Total BTU
120,000 BTU
Type
Skillets

Vulcan VG40 LP Details

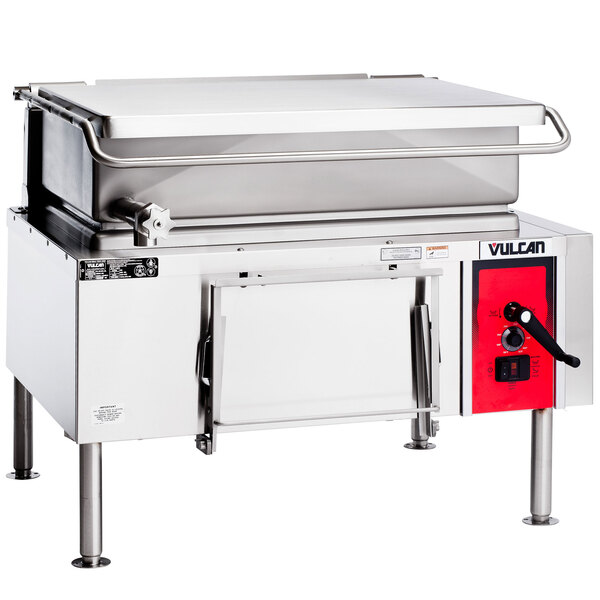

Cook large portions of ground meats, sauces, vegetables, and more with the Vulcan VG40-LP 40 gallon liquid propane braising pan / tilt skillet! This unit features a high-efficiency, high-output, 40 gallon design that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges.

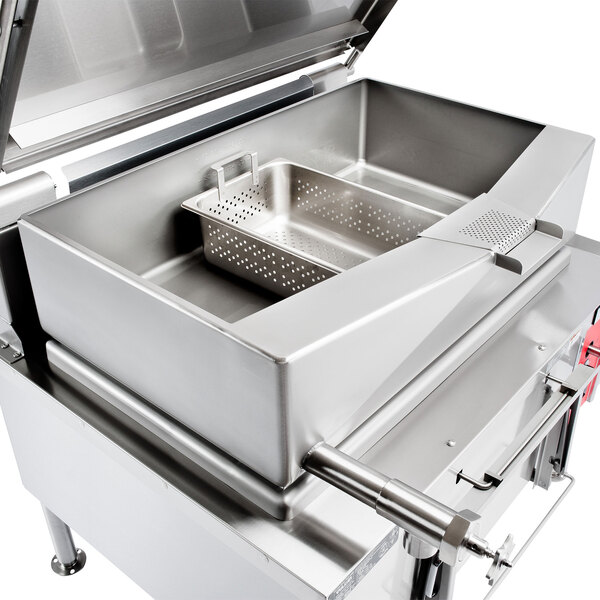

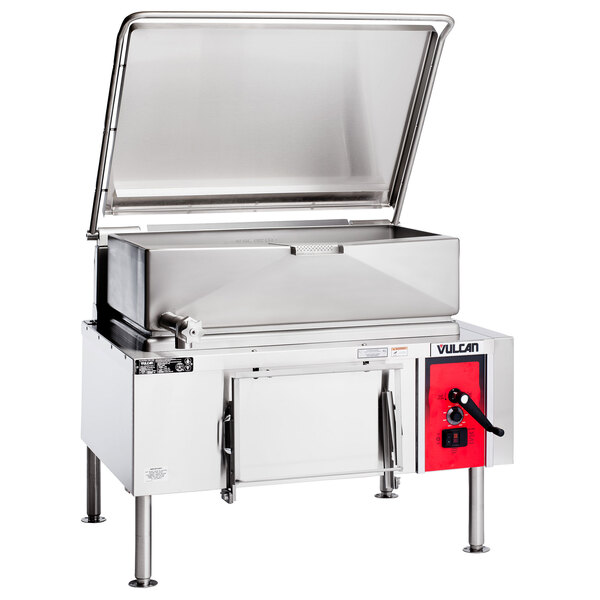

This unit's pan is made of stainless steel with a polished interior surface and coved corners for easy cleanout. Plus, it has embossed gallon markings on the sides for easy measuring. The pan has one 30,000 BTU burner for each 12" of bottom plate and a spring-assisted hinged stainless steel cover is included to help contain heat and steam. The lid can even stop in place for vented cooking and has a wrap-around cool-touch handle for safe use. In addition, a side mounted faucet bracket is included to make it easier to mount your choice of a faucet (sold separately) for efficient filling of the braising pan.

Tilting this braising pan is safe and easy since it has an anti-jam pan lifting mechanism with a removable crank handle. The hand crank tilting mechanism lets you slowly tilt this braising pan and maintain complete control while emptying the skillet's contents. It tilts completely with approximately 30 revolutions and the pouring spout with a removable strainer directs food into your hotel pans or food storage containers placed on the included receiving pan supports.

Integrally-mounted solid state temperature controls, located on the front of the unit in the control housing for easy access, offer a 50-425 degree Fahrenheit range. This unit comes with tubular stainless steel legs with adjustable flanged feet to secure the unit safely to the floor. A liquid propane connection and a 120V electrical connection are required for operation.

Overall Dimensions:
Left to Right: 46"
Front to Back: 35 1/2"
Height: 40 1/2"
Capacity: 40 gallons
Cooking Surface: 39" x 23"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VG40 LP today!

Resources and Downloads for
Vulcan VG40 LP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
