$17594.50/Each

This product is no longer available. We've left this page up for reference only.

  • 240V, 3 Phase, 18 kW
  • 40 gallon capacity
  • #4 finish 10 gauge stainless steel pan with a polished interior and coved corners
  • Elements are embedded in a 1 3/8" aluminum casting
  • Electric motor driven screw jack for accurate and smooth tilting
  • Welded stainless steel legs with front bullet feet and rear flanged feet
  • Integrally mounted controls; temperature range of 160-445 degrees Fahrenheit
  • Spring-assisted hinged stainless steel cover with a handle
Blodgett BLP-40E 240/3 Specs
Width 48 Inches
Depth 37 Inches
Height 40 1/2 Inches
Cooking Surface Depth 9 Inches
Amps 43.3 Amps
Hertz 60 Hertz
Phase 3 Phase
Voltage 240 Volts
Wattage 18 Kilowatts
Capacity 40 Gallons
Cover Type Hinged
Features Power Tilt
Installation Type Floor Model
Made in America Yes
NSF Listed Yes
Power Type Electric
Style Tilting
Temperature Range 160 - 445 Degrees F
Type Skillets

Blodgett BLP-40E 240/3 Details

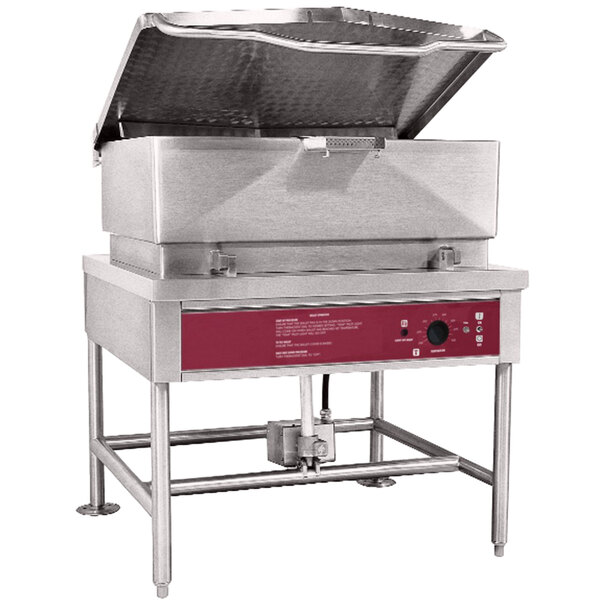

Cook large portions of ground meats, sauces, vegetables, and more with the BLP-40E 40 gallon power tilt electric braising pan / tilt skillet! This 18 kW unit features a large 40 gallon capacity that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges. With only a 48" x 37" footprint, this unit has no trouble fitting in most kitchens, and thanks to the power tilting mechanism, is also easy to use for virtually any operator.

The electric elements are housed in a 1 3/8" thick aluminum casting, which is bolted under the pan for a more even heat distribution across the entire cooking surface. This 10 gauge stainless steel braising pan has a polished interior surface and coved corners for easy cleanout. Plus, a removable pour strainer and no-drip condensate guide combine to further ease your cleaning and emptying experience.

The motor-driven tilt mechanism makes tilting this braising pan smooth, safe, and precise. Integrally-mounted controls, located on the front of the unit for easy access, offer a 160-445 degrees Fahrenheit temperature range. In addition, the high-temperature cut-off, cook indicator light, thermostat, and power switch all make it easy for your employees to operate this tilt skillet. Adjustable front bullet feet with rear flanged feet allow this braising pan to maintain proper leveling on any surface. It requires a 240V, 3 phase electrical connection.

Overall Dimensions:
Left to Right: 48"
Front to Back: 37"
Height: 40 1/2"
Pan Depth: 9"
Capacity: 40 gallons

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CSA_C_US

    CSA_C_US

    This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.

Resources and Downloads for
Blodgett BLP-40E 240/3

Blodgett BLP-E Spec Specsheet Blodgett BLP-E Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
