This product is no longer available. We've left this page up for reference only.
Other Available Voltages:
- 208V, 1 Phase, 18 kW
- 40 gallon capacity
- 10 gauge stainless steel pan with a polished interior and coved corners
- Self-contained gear box tilt mechanism for precise tilting
- Elements are embedded in a 1 3/8" aluminum casting
- Welded stainless steel legs with front bullet feet and rear flanged feet
- Integrally mounted controls; temperature range of 160-445 degrees Fahrenheit
- Spring-assisted hinged stainless steel cover with a handle
|Blodgett BLG-40E 208/1 Specs|
|Depth||39 5/16 Inches|
|Cooking Surface Depth||9 Inches|
|Installation Type||Floor Model|
|Made in America||Yes|
|Temperature Range||160 - 445 Degrees F|
Blodgett BLG-40E 208/1 Details

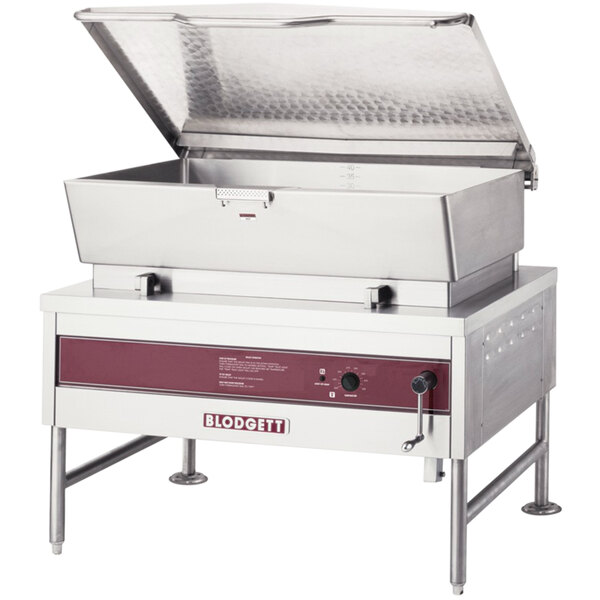

Cook large portions of ground meats, sauces, vegetables, and more with the BLG-40E 40 gallon gear box tilt electric braising pan / tilt skillet! This 18 kW unit features a large 40 gallon capacity that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges. With only a 48" x 39 5/16" footprint, this unit has no trouble fitting in most kitchens, and thanks to the gear box tilting mechanism, is also easy to use for virtually any operator.
The electric elements are housed in a 1 3/8" thick aluminum casting, which is bolted under the pan for a more even heat distribution across the entire cooking surface. This 10 gauge stainless steel braising pan has a polished interior surface and coved corners for easy cleanout. Plus, a removable pour strainer and no-drip condensate guide combine to further ease your cleaning and emptying experience.
The self-contained gear box tilt mechanism makes tilting this braising pan smooth, safe, and precise. Integrally-mounted controls, located on the front of the unit for easy access, offer a 160-445 degrees Fahrenheit temperature range. In addition, the high-temperature cut-off, thermostat indicator light, and power switch all make it easy for your employees to operate this tilt skillet. Adjustable front bullet feet with rear flanged feet allow this braising pan to maintain proper leveling on any surface. It requires a 208V, 1 phase electrical connection.
Left to Right: 48"
Front to Back: 39 5/16"
Pan Depth: 9"
Capacity: 40 gallons
This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Made in America
This item was made in the United States of America.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
